Hardware Spec.
| General | |
|---|---|
| Dimensions |

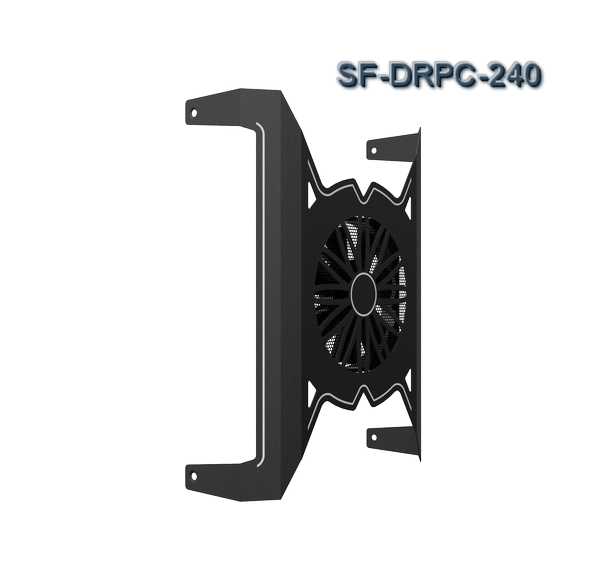

151.23 x 190 x 57.36 (mm) (SF-DRPC-240) 117.91 x 176 x 50.8 (mm) (SF-DRPC-W) 117.91 x 176 x 58.04 (mm) (SF-DRPC-W-15) |
| Description | |
| Description |
External fan - for TANK-XM81 Series: SF-TANK-XM81 for DRPC-W Series: SF-DRPC-W, SF-DRPC-W-15 for DRPC-24 Series: SF-DRPC-240 |
| Dimensions | |
| Dimensions | 80 mm x 80 mm x 15 mm (FAN Dimensions) |
| Material | |
| Material | Heavy duty metal |
| Bearing Type | |
| Bearing Type | Two-Ball |
| Fan Speed (RPM) | |
| Fan Speed (RPM) | 3800 |
| Noise Level (dBA) | |
| Noise Level (dBA) | 40 |
| Life Expectancy (hrs) | |
| Life Expectancy (hrs) | 6500 |
| Cooloing Fan | |
| Cooloing Fan | Air Flow (CFM): 35.77 |
| Color | |
| Color | Black |
Ordering Information
| SF-TANK-XM81-R10 | External fan for TANK-XM81 Series |
|---|---|
| SF-DRPC-W-R10 | External fan for DRPC-W Series, For 10W heat dissipation solution |
| SF-DRPC-W-15-R10 | External fan for DRPC-W Series，For 15W heat dissipation solution |
| SF-DRPC-240-R10 | External fan for DRPC-24 Series |
