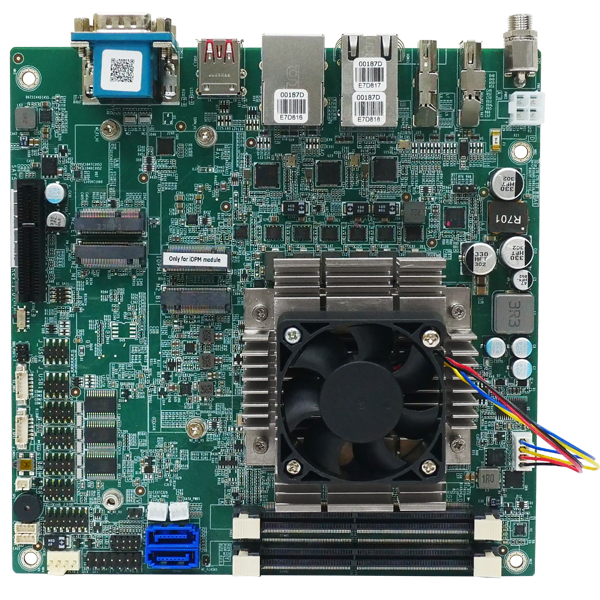

KINO-ADL-N

Mini-ITX SBC with Intel® Alder Lake-N SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, Intel 2.5GbE, M.2, RoHS

KINO-ADL-N-IO
KINO-ADL-N-back
KINO-ADL-N-left
  • KINO-ADL-N-IO
  • KINO-ADL-N-back
  • KINO-ADL-N-left
» Mini-ITX SBC support Intel® Alder Lake-N SoC Processor
» Support one 4800 MHz DDR5 SO-DIMM
» Triple independent display via dual HDMI, DP
» Support Dual Intel® I226V 2.5GbE controller
» Support PCIe Gen3 x4, M.2 M key, and M.2 A key expansion

Specifications

Hardware Spec.

Form Factor
Form Factor Mini-ITX SBC
System
CPU
  • Onboard Intel® Atom™ / Pentium® / Celeron® processor (Alder Lake N platform)
  • Intel® Alder Lake-N N97 SoC Processor (up to 2.9GHz, quad-core, TDP=12W)
  • Intel® Alder Lake-N N200 SoC Processor (up to 3.2GHz, quad-core, TDP=6W)
  • Onboard Intel® Atom™ x7000 series / Pentium® / Celeron® processor (Amston Lake platform)
  • Intel® Amston Lake x7835RE SoC Processor (up to 3.0GHz, 8-core, TDP=12W)
  • Intel® Amston Lake x7405C SoC Processor (up to 2.7GHz, quad-core, TDP=12W)
Memory 1 x 262-pin 4800 MHz DDR5 SO-DIMM (Support IBECC)
Memory Max. up to 16G
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 170mm x 170mm
Net Weight GW: 900g / NW: 400g
Storage
Storage 2 x SATA : 6Gb/s
I/O Interface
Display Output 1 x Display Port : 1.4 4K@60
2 x HDMI™ : 1.4 4K@30
Ethernet 2 x LAN -
LAN1: Intel® I226V 2.5GbE controller
LAN2: Intel® I226V 2.5GbE controller
Audio HD Audio : Realtek ALC888S HD Audio codec
1 x Audio jacks (line-out/MIC-in) on rear IO
1 x Front audio (2x5 pin)
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External USB 2.0
2 x External USB 3.2 Gen2x1 : 10Gb/s
1 x I²C : 1x4 pin
4 x Internal RS-232 : 2x5 pin, P=2.0
2 x Internal RS-232/422/485 : 2x5 pin, P=2.0
2 x Internal USB 2.0 : 2x4 pin, P=2.0
1 x Internal USB 3.2 Gen1x1 : TypeA, 180° (Only embedded CPU)
Expansion 1 x PCIe x4 : PCIe Gen3 x1 signal
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@4.304A, 19V@2.744A, 24V@2.241A, 28V@1.943A,
(Intel® N97 @2.00GHz CPU with Innodisk M5S0-AGS2NCVP 4800 16GB memory, max. loading, EuP mode ensabled)
Power Supply Input voltage range：12~28V
1 x internal power connector (2x2 pin)
1 x external DC power jack (Ø2.6mm)
ErP/EuP Compliant
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing
Card Slot Interface
M.2 1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M key 2242/2280 (PCIe Gen3 x1)

Ordering Information

KINO-ADL-N97-R10 Mini-ITX SBC with Intel® Alder Lake-N N97 SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, dual Intel 2.5GbE, USB 3.2, M.2 ,SATA, RoHS
KINO-ADL-N200-R10 Mini-ITX SBC with Intel® Alder Lake-N N200 SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, dual Intel 2.5GbE, USB 3.2, M.2 ,SATA, RoHS

Package Contents

Package Content

  • 1 x KINO-ADL-N single board computer

  • 1 x I/O Shielding

  • 2 x SATA cable

  • 1 x QIG

Download Specs.
