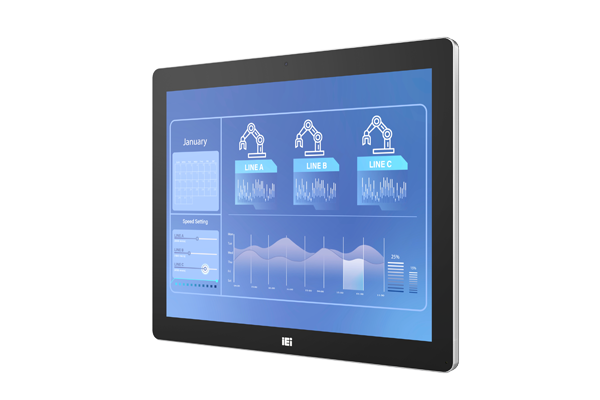

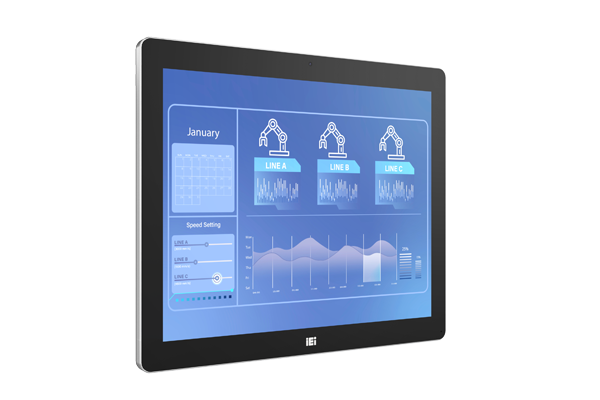

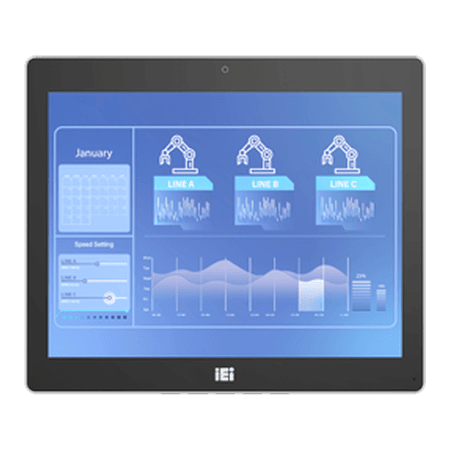

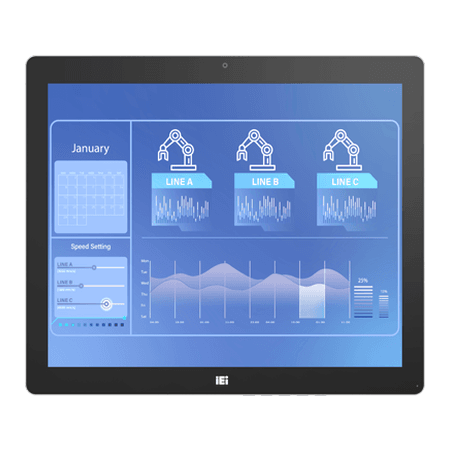

DM2-170

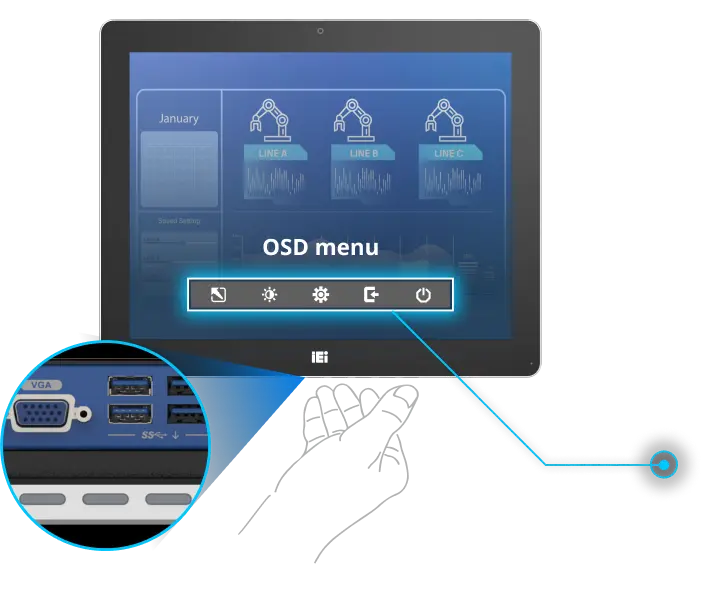

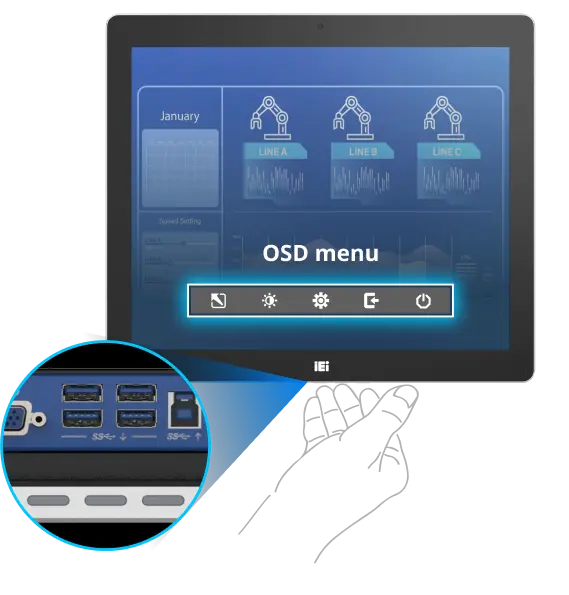

» Front OSD, easy access for setting adjustment

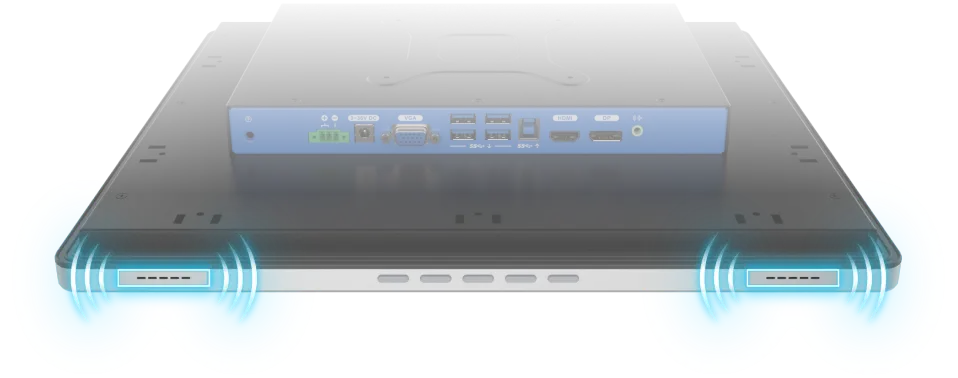

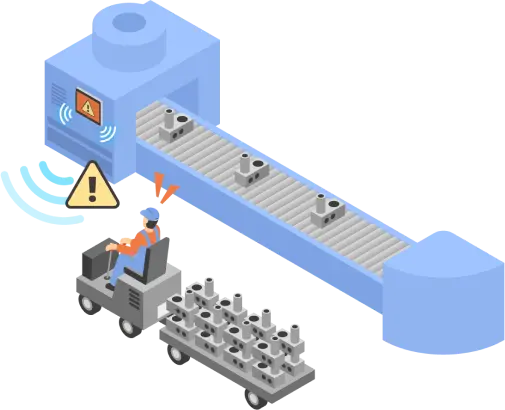

» Speakers positioned at the front, ensuring clear sound delivery even in panel mount

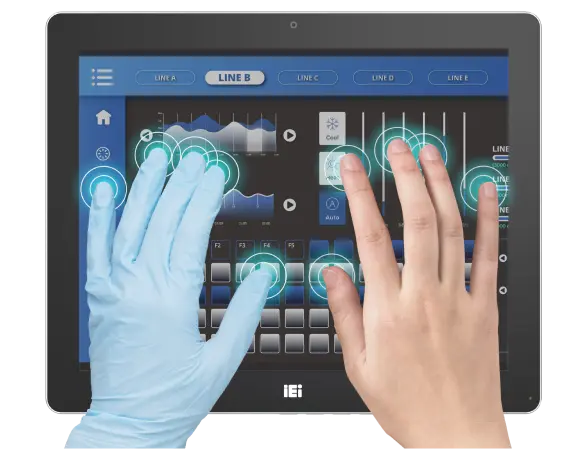

» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition

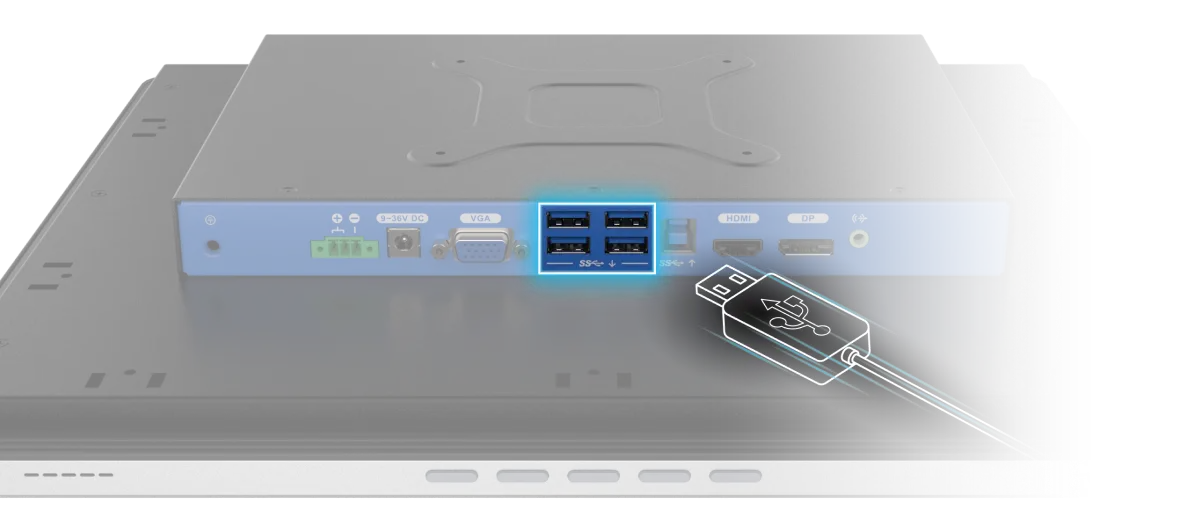

» USB 3.2 Gen1 Type-A supports 10W

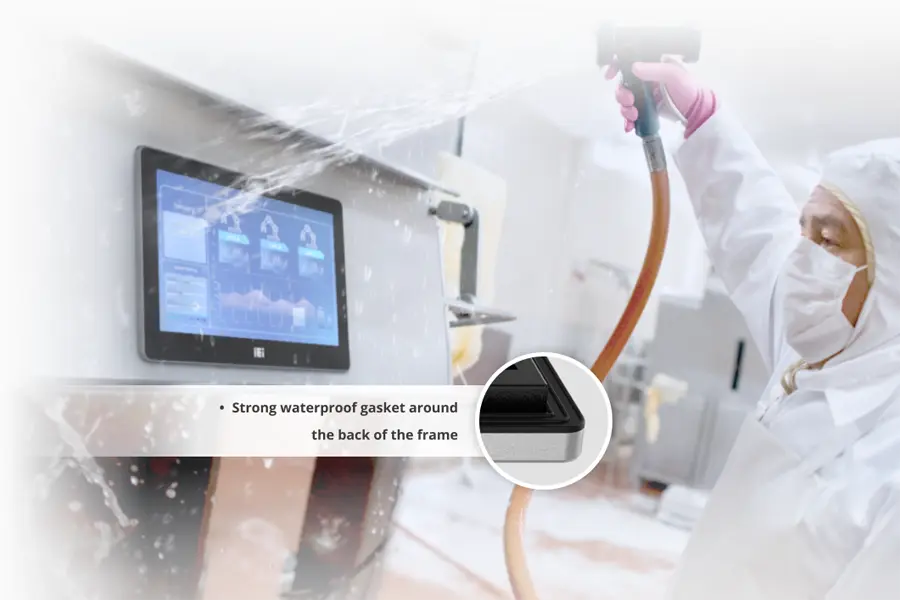

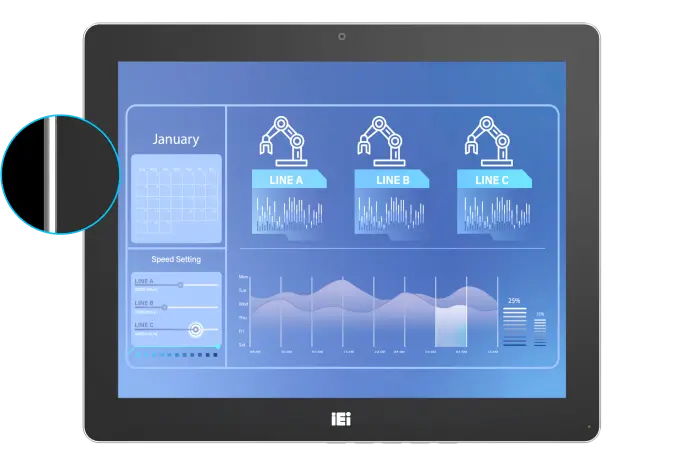

» IP65 compliant front panel with aluminum frame

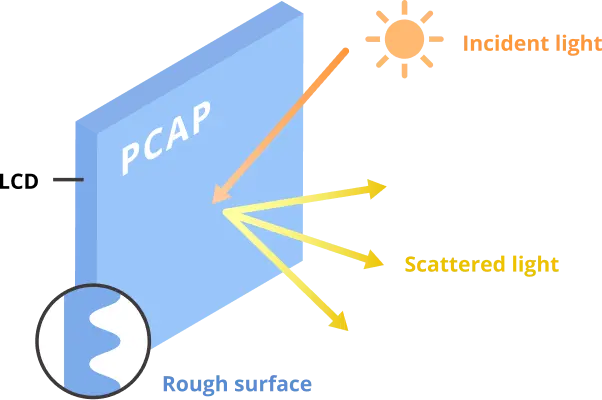

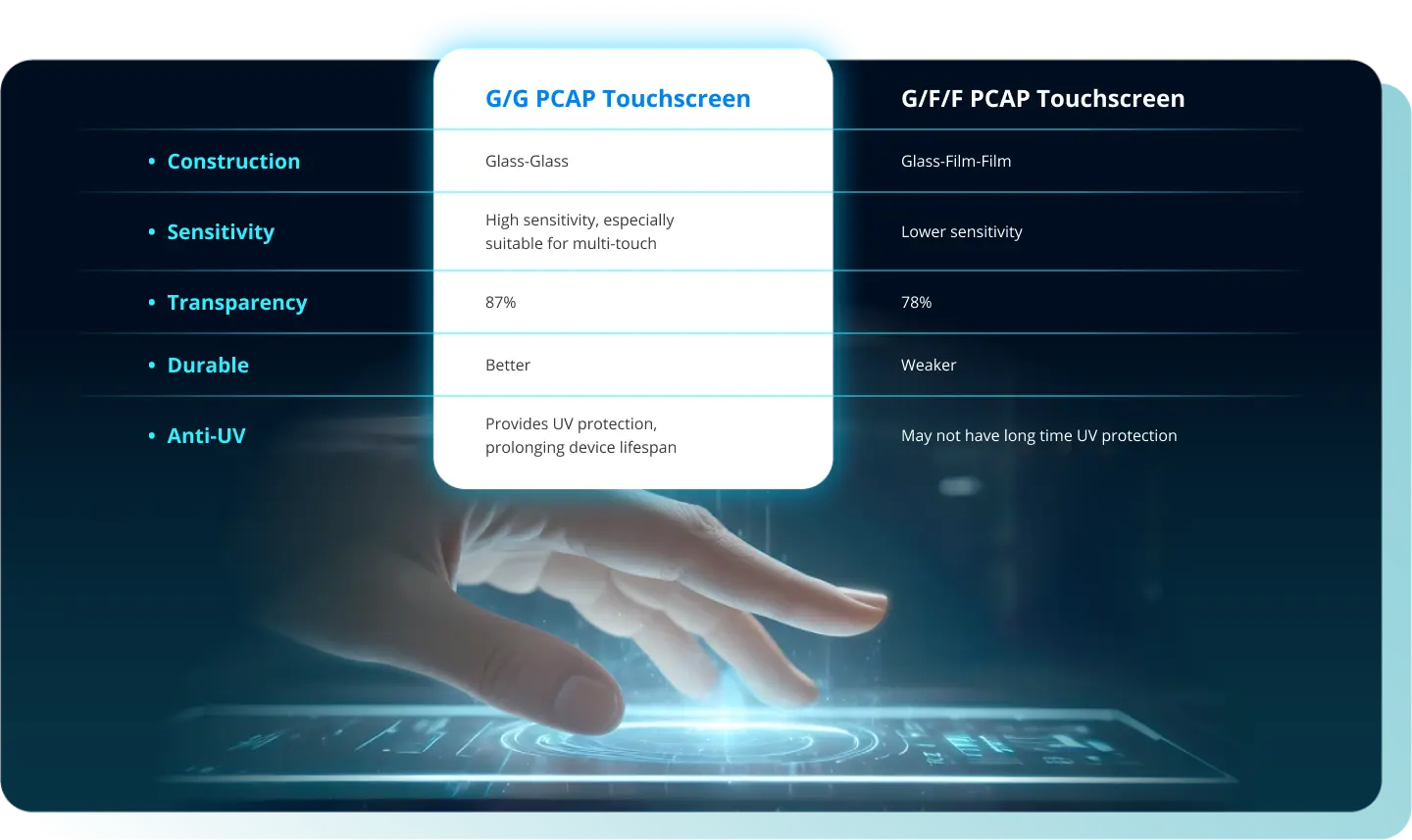

» Anti-glare and anti-UV PCAP
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 17”(5:4) |
| Brightness(cd/m2) | 350 |
| Max Resolution | 1280 x 1024 |
| Contrast Ratio | 800:1 |
| Backlight MTBF(hrs) | 50000 |
| I/O Interface | |

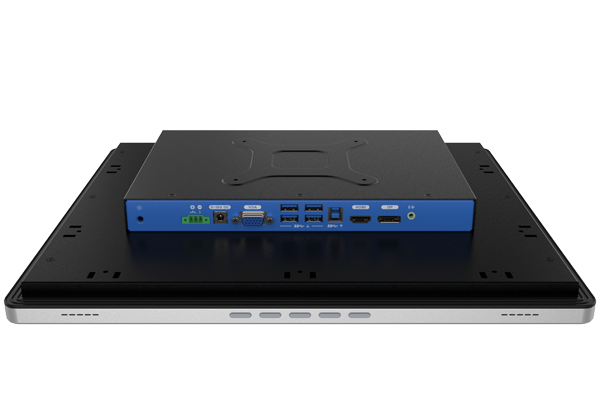

| I/O Ports |
1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black + Silver |
| Dimensions (LxWxH) (mm) | 385.60 x 331.60 x 50.50 |
| Cutout Dimensions | 367.40 x 309.60 |
| LCD | |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 160°/170° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | Capacitive:litek |
Ordering Information
| DM2-170H-R10 | 17.0" 350 cd/m² 1280x1024 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-170HL-R10 | 17.0" 350 cd/m² 1280x1024 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
Package Contents
| Package Content |
|
|---|
