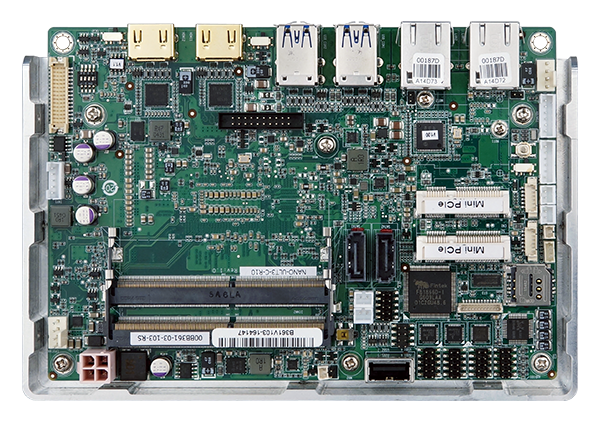

NANO-ULT3
» EPIC SBC with 6th generation Intel® ULT proccessor supports dual-channel DDR4 SODIMMs
» Triple independent display support
» Easy assembly heat spreader for thermal management
» Full-size PCIe Mini slot with SIM sockets for 3G/LTE expansion
» COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | |
|---|---|
| CPU |
6th generation Intel® mobile ULT on-board SoC Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W) Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W) Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W) Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W) Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W) |
| Memory | Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs suppor |
| Memory Max. | 32GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 115 X 165 |
| Net Weight | 350g |
| Storage | |
| Storage | 2 x SATA :6Gb/s with 5V SATA power connector(no RAID) |
| 1 x eMMC :8GB(optional) | |
| I/O Interface | |
| Display Output | 2 x HDMI™ :up to 4096x2160@24Hz |
| 1 x LVDS :up to 1920x1200@60Hz | |
| 1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) (colay with HDMI™1) | |
| Ethernet |
2 x LAN :LAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported LAN2: Intel® I211-AT PCIe GbE controller |
| Audio | Description: Realtek ALC662 HD codec |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 2 x Internal RS-232 :2x5 pin, p=2.0 |
| 1 x Internal RS-232/422/485 :2x5 pin, p=2.0 | |
| 4 x External USB 3.2 Gen1x1 | |
| 3 x Internal USB 2.0 :1 X Type A, 2 X 2 X 4 pin, p=2.0 | |
| 1 x PS/2 :1x6 pin | |
| Expansion |
2 x PCIe mini Card Slot :1 X Full-sizet (with SIM holder & mSATA support) 1 x Half-size * 3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only |
| Power | |
| Power Consumption | 12V@2.48A (Intel® Core™ i3-6100U CPU with two 8 GB memory) |
| Power Supply |
12V only DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| NANO-ULT3-i7-R10 | EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7-6600U (15W) on-board Processor (ULT) with HDMI™/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS |
|---|---|
| NANO-ULT3-i5-R10 | EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT) with HDMI™/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS |
| NANO-ULT3-i3-R10 | EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i3-6100U (15W) on-board Processor (ULT) with HDMI™/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS |
