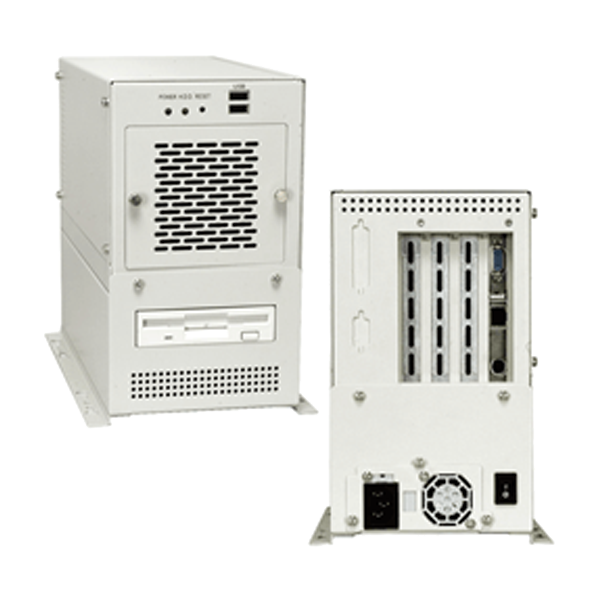

PAC-42G
» Two USB ports on the front panel
» One 8 cm cooling fan with replaceable filter
» Supports one 3.5” HDD or two 2.5” HDDs
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Half-size, slot CPU cards |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 4 slots |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays |
1 x Front-accessible 3.5" and 1 x 3.5" HDD or 1 x Front-accessible 3.5" and 2 x 2.5" HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White |
| Dimensions | |
| Dimensions | 269 mm x 140 mm x 230 mm(DxWxH) |
| Weight | |
| Weight | 3.9 kg/6.1 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PAC-42GHWPX-R20/180W | 4-Slot Half size Chassis,White,Powder paint,1x 8cm fan,with 180W ATX PSU,RoHS |
|---|---|
| PAC-42GHWPX-R20 | 4-Slot Half size Chassis,White,Powder paint,W/O BP,W/O PSU,ATX Power Switch,RoHS |
| PAC-42GHW-R20 | 4-Slot Half size Chassis,White,Powder paint,W/O BP,W/O PSU,AT Power Switch,RoHS |
