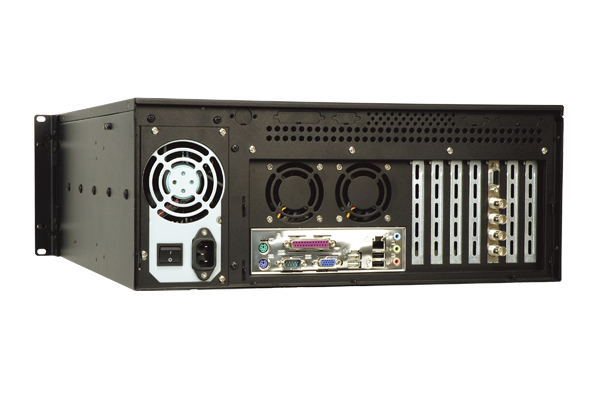

RACK-3000G
» RoHS compliant design
» Compatible with ATX and microATX form factor motherboards
» Three 5.25” and three 3.5” drive bays
» Two 8 cm cooling fans
» Lockable door prevents unauthorized access
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size, slot CPU card |
| I/O Interface | |
| I/O Openings | 2 x COM, 2 x LPT, 1 x PS2 |
| Expansion Slots | |
| Expansion Slots |
14 slots for RACK-3000G 7 slots for RACK-3000GATX |
| System | |
| Cooling method / System Fan | 2 x 8 cm |
| Drive Bays |
3 x 5.25" + 1 x front-accessible 3.5" + 2 x 3.5" HDD or 3 x 5.25" + 2 x front-accessible 3.5" + 1 x 3.5" HDD or 3 x 5.25" + 3 x 3.5" HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White/B: Black |
| Dimensions | |
| Dimensions | 520 mm x 431 mm x 176 mm(DxWxH) |
| Weight | |
| Weight | 13 kg/18 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| RACK-3000GBPX-R30/300W | 4U 14-slot Rackmount Chassis,Black,Powder paint,2x 8cm fan,with 300W ATX PSU,RoHS |
|---|---|
| RACK-3000GBPX-R30 | 4U 14-Slot Rackmount Chassis,Black,Powder paint,ATX Power Switch,W/O PSU,RoHS |
| RACK-3000GBATX-R30/300W | 4U ATX motherboard Rackmount Chassis,Black,Powder paint,2x 8cm fan,with 300W ATX PSU,RoHS |
| RACK-3000GBATX-R30 | 4U ATX motherboard Rackmount Chassis,Black,Powder paint,ATX Power Switch,W/O PSU,RoHS |
