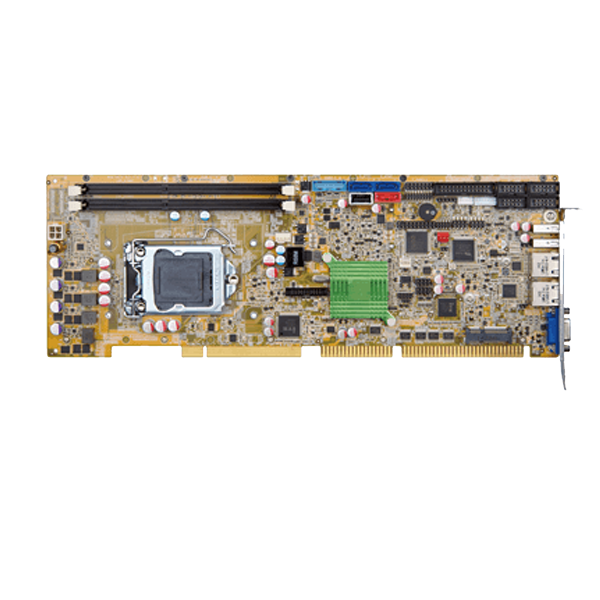

WSB-H810
» Full-size PICMG 1.0 with LGA 1150 Intel® CPU
» Two 1600/1333 MHz DDR3 SDRAM DIMM slots support up to 16 GB of memory
» Dual Intel® Gigabit Ethernet LAN controller
» SATA 6Gb/s and USB 3.0 supported
» IEI One Key Recovery solution for rapid OS backup and recovery
» TPM v1.2 hardware security function supported by TPM module
» Stiffener bars
» IEI jumper-less function
Hardware Spec.
| System | |
|---|---|
| CPU | 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| Chipset | Intel® H81 |
| Memory | Two 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs |
| Memory Max. | 16 GB |
| Cooling method / System Fan |
CF-1150SB-R11 CF-1150SC-R20 CF-1150SE-R11 CF-1150SF-R10 |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 338 X 122 |
| Net Weight | 260 |
| Storage | |
| Storage | 3 x SATA :2 x 6Gb/s,1 x 3Gb/s(AHCI supported, no RAID) |
| 1 x mSATA | |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1200@60Hz |
| 1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet | 2 x LAN :1 x Intel® I217-LM Ethernet controller,1 x Intel® I211-AT Ethernet controller |
| Audio | Description: :7.1-channel HD Audio supported by IEI AC-KIT-892HD kit |
| I/O Interface | 4 x Internal RS-232 :2x5 pin, P=2.54 |
| 1 x Internal RS-422/485 :1x4 pin, P=2.0 | |
| 2 x External USB 2.0 | |
| 5 x Internal USB 2.0 :1 X 180° Type-A,4 X 2x4 pin,P=2.54 | |
| 2 x Internal USB 3.2 Gen1x1 :2x10 pin | |
| 1 x PS/2 :1x6 pin | |
| 1 x LPT :2x13 pin | |
| Expansion | 2 x PCIe mini Card Slot :1 x support mSATA |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
5V@3.4A, 12V@0.36A, Vcore_12V@7.48A, 3.3V@1.42A, 5VSB@0.13A (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory) |
| Power Supply | 5V/12V, Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| WSB-H810-R10 | Full-size PICMG 1.0 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA/iDP, Dual Intel GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
