End of Life Notice
* Effective Date: 2021/12/09

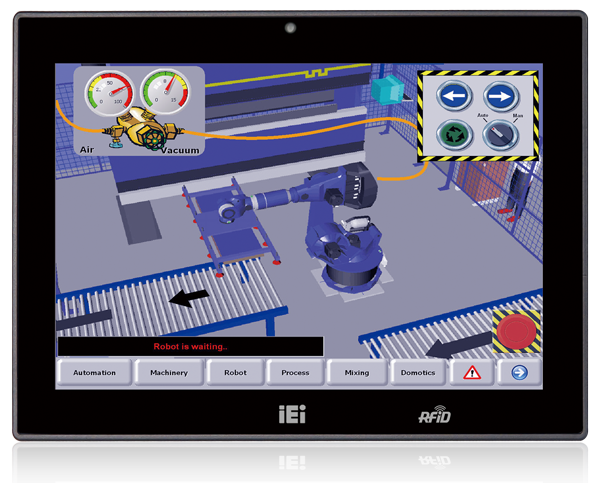

» 12.1” light industrial interactive panel PC
» Intel 6th Generation Skylake
» Wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» One HDMI™ output
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
Hardware Spec.
| System | |
|---|---|
| CPU | 6th Generation Intel® Core™ i5 and Celeron® on-board processor |
| Storage |
2.5” SATA 3Gb/s HDD bay M.2 M key PCIe (2230) mSATA slot (PCIe/mSATA/USB) |
| Communication | |
| Bluetooth | Bluetooth V4.0 |
| Wireless | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| Ethernet | 2x PCIe GbE by Intel® i211 controller |
| Audio | AMP 3W + 3W (internal speaker) |
| Audio Codec | ALC892 |
| RAM |
One 260-pin 2133MHz single-channel, 4GB DDR4L SO-DIMM pre-installed (system max. 8GB) |
| Power | |
| Power consumption | 12V@6A |
| Environment | |
| Operating Temperature | -20°C ~ 50°C |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C~60°C |
| Weight | |
| Weight | 3/5.03 |
| LCD | |
| Size | 12.1” |
| Resolution | 1024 x 768 (4:3) |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.240 (H) x 0.240 (V) |
| Viewing Angle (H-V) | 160º / 160º |
| Backlight MTBF | 50000 (LED backlight) |
| Touch | |
| Touch Screen | Projected capacitive type with USB interface (anti-UV) |
| Touch Controller | EETI EXC3180 |
| Other Features | |
| Microphone | digital microphone |
| Camera | 2-megapixel with low light function |
| I/O Interface | |
| I/O Interface | 1 x RS-232 (DB-9 (RI/5V/12V)) |
| 1 x RS-422/485 (DB-9 (RI/5V/12V)) | |
| 2 x USB 2.0 | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x HDMI™ | |
| 2 x LAN (GbE) | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 1 x Power In | |
Ordering Information
| AFL3-12C-ULT3-i5/PC/4G-R11 | 12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R11 |
|---|
Package Contents
| Package Content |
|
|---|
