AFL3-W10A-AL

Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)

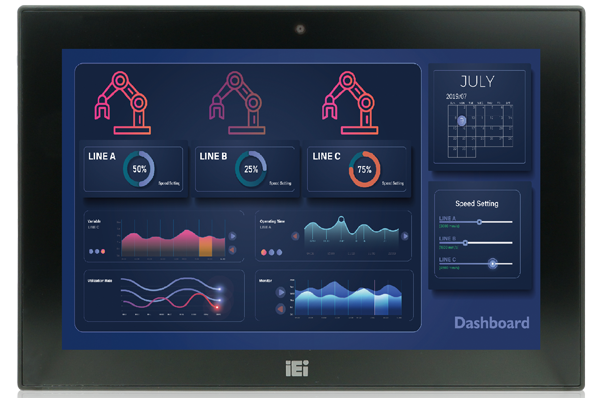

AFL3-W10A-AL industrial panel PC
AFL3-W10A-AL industrial panel PC
AFL3-W10A-AL industrial panel PC
  • AFL3-W10A-AL industrial panel PC
  • AFL3-W10A-AL industrial panel PC
  • AFL3-W10A-AL industrial panel PC
• W10.1” light industrial interactive panel PC
• 9 V ~ 30 V wide range DC input with lockable DC jack
• Selectable AT/ATX power mode
• Built-in speakers
• Support PoE PD IEEE803.2 af/at/bt
• IP64 compliant front panel
• Touch screen wth anti-UV / anti-glare coating

Light Industrial Panel PC With PoE Solution

Introducing the AFL3 Touch Panel PC Series with PoE Support｜Product Introduction

Hardware Feature

The Intel® Celeron® processor J3455 Apollo Lake, empowers real-time computing in digital surveillance, new in-vehicle experiences, advancements in industrial and office automation, new solutions for retail and medical, and more. These processors are based on the Goldmont architecture, utilizing Intel’s industry-leading 14 nm process technology.

AFL3-W07A-AL IP65 panel pc hardware feature

IEEE 802.3 at Standard PoE PD Panel PC

PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.

IEEE 802.3 at Standard PoE PD Panel PC

Multi-touch Screen for Industry

IEI’s AFL3 series integrated with PCAP glass touch screen is extremely easy to clean and very resistant to scratches.
Notes: The linen gloves touch function for optional

-20°C ~ 50°C Fanless Design

AFL3-W07A-AL_Light-industrial-Panel-PC, -20°C ~ 50°C Fanless Design

Suitable for Semi-outdoor Environment

IP65-rated front panel for water and dust resistance

IP65 panel pc for Semi-outdoor Environment

Anti-glare (AG) and UV-resistant Touch Screen

The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.

Integrated I/O

AFL3-W10A-AL industrial panel pc Integrated integrated I/O

Specifications

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
Storage 1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal)
Communication
Bluetooth Bluetooth V4.1
Wireless IEEE 802.11a/b/g/n/ac
I/O Interface
Ethernet 2 x PCIe GbE by Intel® i211 controller
Audio AMP 2W + 2W (internal speaker)
Audio Codec ALC269
RAM one 204-pin 1866MHz DDR3L DIMMs support up to 8GB
Power
Power Requirement 9~30V , 4~1,2A
Environment
Operating Temperature -20°C ~ 50°C
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C
Weight
Weight 1.06kg/2.58kg
LCD
Size 10.1”
Resolution 1280 x 800 (16:10)
Brightness (cd/m2) 350
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.1695 (H) x 0.1695 (V)
Viewing Angle (H-V) 170° / 170°
Backlight MTBF 15000 (LED backlight)
Touch
Touch Screen Projected capacitive type with USB interface (anti-UV)
Touch Controller EETI EXC3146
Other Features
Camera 2-megapixel with low light function
Microphone digital microphone
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Clear CMOS
1 x Line out
2 x USB 2.0
2 x USB 3.2 Gen1x1
1 x HDMI™ (output)
2 x LAN (GbE)
1 x Power Switch
1 x Reset Button
1 x Power In (9 V ~ 30 V lockable DC jack)
OS Support
OS Support Microsoft Windows 10, Linux

Ordering Information

AFL3-W10A-AL-J2/P/PC/4G-R10 10.1” 350cd/m² 1280x800 fanless Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
AFL3-PD-BT01-KIT01-R10 PoE PD IEEE802.3 af/at/bt module kit , only for AFL3-xxx-AL optional (W10A/12A/W15A) , R10

Package Contents

Package Content

  • 4 x Round head machine screw

  • 4 x Pan head machine screw

  • 1 x Power cord

  • 1 x Power adapter

  • 1 x RJ-45 to DB-9 COM port transfer cable
