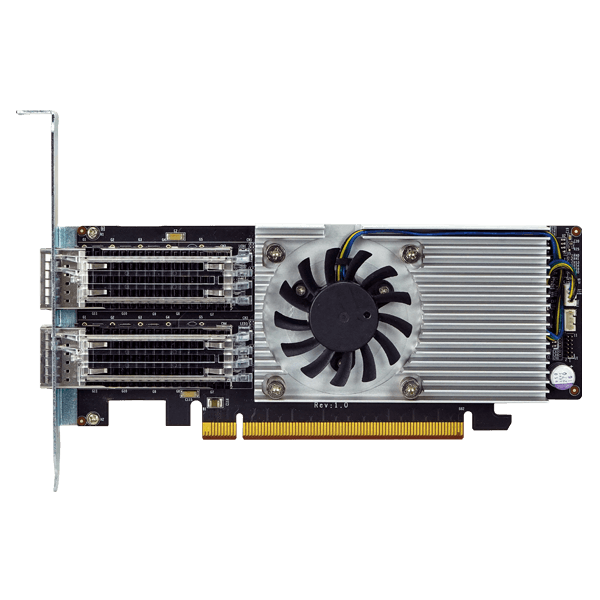

LAN-100G2SF

Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.

LAN-100G2SF-E810 Intel® Ethernet Controller E810 based Network Interface Card
  • LAN-100G2SF-E810 Intel® Ethernet Controller E810 based Network Interface Card
» 1 x intel E810 Ethernet controller
» 2 ports 100GbE QSFP28 connector
» 1 x PCIe 4.0 x16
» RoHS/CE/FCC compliant

Specifications

Hardware Spec.

Form Factor
Form Factor Low-profile PCIe card
System
CPU Intel® Ethernet Controller E810
Cooling method / System Fan Active Fan
Physical Characteristics
Dimensions (LxWxH) (mm) 167.64 (L) x 64.41 (W) x 18 (H)
I/O Interface
Ethernet 2 x LAN: 2 x QSFP28
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS

Ordering Information

LAN-100G2SF-E810-R10 Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x16 interface

Package Contents

Package Content

  • 1 x LAN-100G2SF-E810 card

  • 1 x QIG

Download Specs.
