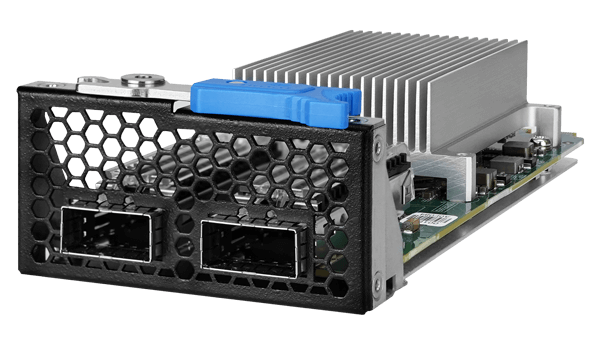

PulM-100G2SF-CX6
• ConnectX-6 Dx dual 100GbE network IC support 1/10/25/40/50/100 Gb/s
• Ethernet with Host Interface > PCIe Gen 3.0/4.0 x16 Cyber Security
• Inline hardware IPsec encryption & decryption
• Inline hardware TLS encryption & decryption
• Data-at-rest AES-XTS encryption & decryption
• Platform security : 1. Hardware root-of-trust, 2.Secure firmware update
• Stateless Offloads
• TCP/UDP/IP stateless offload > LSO, LRO, checksum offload
• Advanced Timing & Synchronization
• Storage Accelerations
• RDMA over Converged Ethernet (RoCE)
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 162.2 x 74 x 41.85 |
| I/O Interface | |
| Ethernet | 2 x LAN: 2 x QSFP28 |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 5% ~ 90% non-condensing |
| Certifications | |
| Safety & EMC | CE, FCC, RoHS |
| Card Slot Interface | |
| PCIe | PCIe 4.0 x16 |
| Card Features | |
| Speed | 1/10/25/40/50/100 Gb/s |
| Controller Chip | Mellanox ConnectX-6 Dx |
Package Contents
| Package Content |
|
|---|
