NANO-ADL-P

EPIC SBC supports Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with Dual HDMI™, DP, IDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, iAUDIO, PCIe x4 for riser card and RoHS

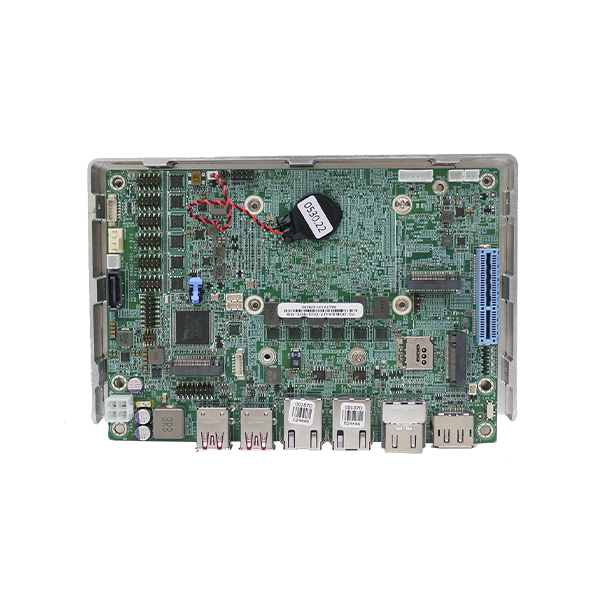

NANO-ADL-P Front
NANO-ADL-P IO
NANO-ADL-P Back
NANO-ADL-P Side
  • NANO-ADL-P Front
  • NANO-ADL-P IO
  • NANO-ADL-P Back
  • NANO-ADL-P Side
» Support 12th/13th Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
» Support on-board LPDDR4x 3200 MHz 8GB memory, up to 32GB
» Support quadruple independent display via two HDMI™, one DP and one iDPM
» Support PCIE X4,M.2 B key and M.2 A key expansion
» Suport two 2.5GbE LAN with I225V/I226V

Specifications

Hardware Spec.

Form Factor
Form Factor EPIC SBC
System
CPU 12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
Memory On-board LPDDR4x 3200 MHz 8GB up to 32GB
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 mm x 165 mm
Net Weight 400g
Storage
Storage 1 x SATA (6Gb/s)
I/O Interface
Display Output 2 x HDMI™ : up to 4096 x 2160 @ 30Hz
1 x Display Port : up to 4096 x 2160 @ 60Hz
1 x iDPM : support iEi eDP/ LVDS/ VGA module
Ethernet 2 x LAN -
LAN1: Intel® I225V/I226V 2.5GbE controller
LAN2: Intel® I225V/I226V 2.5GbE controller
Audio 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin)
I/O Interface 4 x Internal RS-232 (2x5 pin, P=2.0)
2 x Internal RS-232/422/485 (2x5 pin, P=2.0)
4 x Internal USB 2.0 (2x4 pin, P=2.0)
4 x External USB 3.2 Gen2x1 : 10Gb/s(Type A)
Expansion 1 x PCIe x4 (PCIe Gen3 x4)
2 x M.2(NGFF) -
1 x M.2 A Key for Wi-Fi & BT 2230 (PCIe Gen3 x 1 & USB 2.0)
1 x M.2 B Key W/ SIM Header (PCIe x2) 3042/2280
Power
Power Consumption 12V@4.62A
(12 th Gen Intel® Core™ i7-1265UE CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C~70°C
Humidity 5% ~95%, non-condensing

Ordering Information

NANO-ADL-P-i7C-R10 EPIC SBC supports Intel® Alder Lake-P Core™ i7-1255U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS
NANO-ADL-P-i5C-R10 EPIC SBC supports Intel® Alder Lake-P Core™ i5-1235U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS
NANO-ADL-P-i3C-R10 EPIC SBC supports Intel® Alder Lake-P Core™ i3-1215U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS
NANO-ADL-P-CC-R10 EPIC SBC supports Intel® Alder Lake-P Celeron® 7305 processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS

Package Contents

Package Content

  • 1 x NANO-ADL-P single board computer

  • 1 x SATA cable

  • 1 x QIG
