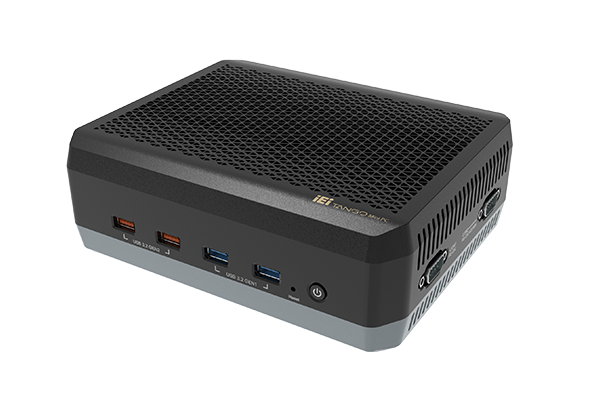

TANGO-7010

Compact Size

TANGO-7010 Right Side
TANGO-7010 Left Side
TANGO-7010 Front IO
TANGO-7010 Back IO
TANGO-7010 Side IO
  • TANGO-7010 Right Side
  • TANGO-7010 Left Side
  • TANGO-7010 Front IO
  • TANGO-7010 Back IO
  • TANGO-7010 Side IO
» Compact Industrial Mini PC
» Smart Fan system
» 12th Intel® Core™ i Processors
» Triple 2.5GbE LAN
» Built-in Wi-Fi 6E & Bluetooth 5.2 module (internal antenna)

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU: 12th Intel® Core™ i Processors
  • Chipset: H610
  • System Memory: 2 x SODIMM 3200MHz DDR4, 8GB pre-installed up to 64GB
  • Power: DC Jack: 12V DC
  • Consumption: 12V@2.95A (Intel® Core™ i7-12700TE with 8GB memory)
I/O Interface
I/O Ports
  • USB:
    2 x USB3.2 Gen2
    2 x USB3.2 Gen1
  • Ethernet:
    3 x RJ-45 2.5 GbE by I226V controller
  • Display:
    2 x HDMI™ 2.0B Support CEC (up to 4k@ 60Hz)
    1 x DP 1.4 (up to 4k@ 60Hz)
  • COM Port:
    1x RS-232 (DB9)
    1x RS-232/422/485 (DB9)
  • TPM:
    Support Intel PTT
  • Wireless/Bluetooth:
    INTEL AX210 WiFi 6E & Bluetooth 5.2 Module built-in 2T2R antenna
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 E-key (PCIe Gen3 x1/USB2.0) (preinstalled WIFI Module)
    1 x 2280 M-key (PCIe Gen4 x4)
    1 x 2280 M-key (PCIe Gen3 x4)
System
Cooling method / System Fan Smart Fan
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
(support up to 9.5 mm SSD)
Indicator&Buttons
Buttons 1 x Power button(with LED)
1 x Reset button
Indicators 1 x Power LED
Physical Characteristics
Construction ABS Plastic + Aluminum
Color
Color Black C & grey (Pantone 430C)
Dimensions
Dimensions 192.09 x 158 x 64 (mm)
Weight
Weight 1.29 / 2.34kg
Environment
Operating Temperature 0°C ~ 40°C with 0.7M/S air flow (SSD)
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC CE/RED/FCC/UKCA/ compliant
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

TANGO-7010-i9AWC-R11 Fan System with Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-i7AWC-R10 Fan System with Intel® Core™ i7-12700TE 1.4 GHz (up to 4.6 GHz, 12-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-i5AWC-R10 Fan System with Intel® Core™ i5-12500TE 1.9 GHz (up to 4.3 GHz, 6-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-i3AWC-R10 Fan System with Intel® Core™ i3-12100TE 2.1 GHz (up to 4 GHz, quad core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-W10IoT21-V-R10
[Peripheral]		 OS Image with Windows® 10 Enterprise Value 64-bit 2021 LTSC for TANGO-7010 i3 & i5 Series, with DVD-ROM, RoHS
TANGO-7010-W10IoT21-H-R10
[Peripheral]		 OS Image with Windows® 10 Enterprise High End 64-bit 2021 LTSC for TANGO-7010 i7 & i9 Series, with DVD-ROM, RoHS

Package Contents

Package Content

  • 1 x Mounting Screw

  • 1 x VESA Mounting Kit

  • 1 x Adapter

  • 1 x Power Cord
