IMB-Q470

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual LAN, M.2, 8 USB 3.2, 6 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS

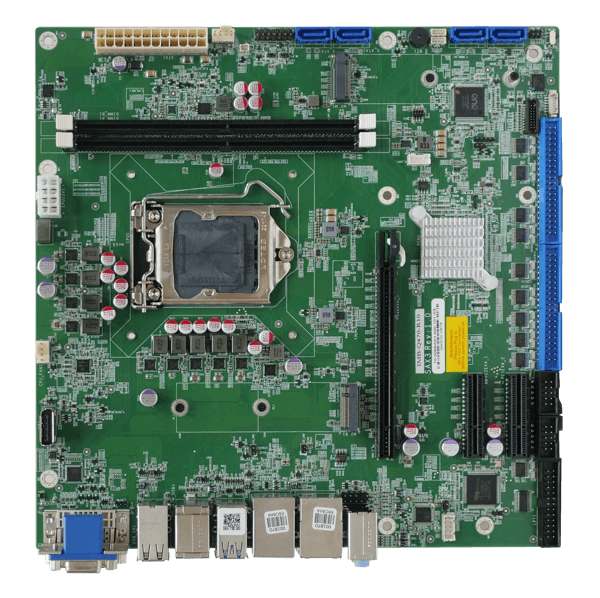

IMB-Q470 Front
IMB-Q470 IO
IMB-Q470 Back
IMB-Q470 Left
  • IMB-Q470 Front
  • IMB-Q470 IO
  • IMB-Q470 Back
  • IMB-Q470 Left
» LGA1200 Intel® 10th/11th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 125W)
» Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
» Support triple independent display via DVI, VGA and internal DP++
» Support one PCIe x16 and two PCIe x4 expansions
» Support one M.2 B key, one M.2 M key and four SATA for storage

Specifications

Hardware Spec.

Form Factor
Form Factor micro ATX
System
CPU LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
Chipset Intel® Q470/Q470E
Memory Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots
(supporting up to 64 GB memory)
Memory Max. 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 244mm
Net Weight 700g
Storage
Storage 4 x SATA : RAID 0/1/5/10 supported
1 x M.2(NGFF) : B key 2242/2280 (PCIe Gen3 x2)
I/O Interface
Display Output 1 x VGA : up to 1920 x 1080@60Hz
1 x DVI-D : up to 2560 x 1600@60Hz
1 x DP++ : up to 3840 x 2160@60Hz
Ethernet 2 x LAN -
LAN1: Intel® I219-LM GbE controller
LAN2: Intel® I225V/I226V GbE controller
Audio 1 x HD Audio : Realtek ALC888S HD Audio codec
- 3 x Audio jack (Line-in, Line-out, Mic-in)
- 1 x Analog audio (2x5 pin)
I/O Interface 10 x Internal RS-232 -
2 x 2*20-pin, P=2.54
2 x 2*5 pin, P=2.54
6 x External USB 2.0 : Type A
8 x External USB 3.2 Gen1x1 : 5 Gb/s(Type A)
1 x PS/2 : for KB/MS
1 x LPT : 2*13 pin
Expansion 1 x PCIe x16 : Gen4 slot with x16 Signal
2 x PCIe x4 : Gen4 open-end
2 x M.2(NGFF) -
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)
Power
Power Consumption
  • 3.3V@1.13A, 5V@10.14A, 12V@11.86A, 5VSB@0.23A (11th Gen.Intel® Core® i9-11900K 3.50 GHz 125W CPU with 32GB 2933MHz DDR4 memory, EUP enabled)
  • 3.3V@1.16A, 5V@10.45A, 12V@5.93A, 5VSB@0.26A (10th Gen.Intel® Core® i9-10900E 2.80 GHz 65W CPU with 32GB 2933MHz DDR4 memory, EUP enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10°C~60°C
Storage Temperature -30°C~70°C
Humidity 5% ~95%, non-condensing

Ordering Information

IMB-Q470-R11 Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual 2.5GbE LAN, M.2, 8 USB 3.2,6 USB 2.0,10 COM, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x IMB-Q470 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG

Download Specs.
