IEI Launches New Network Appliance with Extremely Compact Size - PUZZLE-IN003B

Feb 14, 2020

IEI Event News
banner
Integrated Intel® QuickAssist Technology Product Info Applications

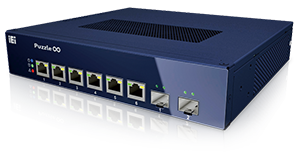

The Puzzle-IN003B is a desktop network device that easily places in space limited area. It comes with Intel® Atom® Processor C3000 series System On Chip (4 core to 16 core and up to 2.2Ghz ) which supports up to 128GB Dual-channels DDR4 2400 MHz ECC (UDIMM, or RDIMM), 32GB Embedded Multi Media Card (eMMC), and have high speed network data transmission of 2 x 10Gb integrated Ethernet and 6 x 1Gb RJ-45 LAN ports. In order to speed up the network solutions, it also offers Intel® QuickAssist Technology (Intel® QAT up to 20Gbps) to accelerate and compress cryptographic workloads.

High-Density, Low-Power Designs

Performance improvements over previous generations with an integrated/high-density design and low TDP.

Multi-Core Scalability

Multiple product configuration options from 4–16 processing cores to scale one design across many use cases.

High-Speed I/O Configurability

Faster transmission of large data files with two10Gb Ethernet and configurable I/O lanes using PCIe Gen 3, SATA and USB 3.0.

Integrated Hardware acceleration

Intel® QuickAssist Technology (Intel® QAT up to 20Gbps) to accelerate and compress cryptographic workloads.


Integrated Intel® QuickAssist Technology

In the 5G network, security is an indispensable requirement. The base station must use air interface security to connect to the user equipment (UE), and an IPsec connection to connect to the core network. The base station must support high-performance crypto algorithms like AES at the IP level and ZUC/Kasumi/Snow3G at the PDCP level.

To support these requirements the Intel Atom® C3000 processor series integrates Intel® QuickAssist Technology providing up to 20 Gbps of crypto performance, ensuring secure data transfer while reserving valuable processor cycles for other tasks.

Performance Single Intel Atom® C3000-NS Solution
SSL 20 Gbps
Bulk Crypto + Authentication 20 Gbps
RSA Decrypt 1024 92K Ops/sec
RSA Decrypt 2048 20K Ops/sec
ZUC/Snow3G/Kasumi F82 12Gbps

Product Info
PUZZLE-IN003B
PUZZLE-IN003B

Intel® Atom® processor C3558 8M Cache, up to 2.20 GHz

Support 4 x 1 GbE NIC via Intel® C3558, 2 x 1 GbE PHY via Marvell 88E1512, 2 x 10 GbE SFP+ via intel C3558

DDR4 2133MHz ECC (by CPU) or non-ECC UDIMM/R-DIMM Up to 32GB

1 x M.2 A key (USB 2.0, PCIe x1), 1 x miniPCIe (USB 2.0,PCIe x1) with SIM card slot, 1 x eMMC 32GB


Applications
Case Study
Police Station Network Firewall
Police Station Network Firewall
Firewall Solution Case Study
Firewall Solution
