Embedded System

IEI, the leading embedded system provider, continues to extend the product footprint from component level to system integration service. Our strong knowledge of market and technology innovation offers reliability, flexibility and interoperability for all of our embedded products with choices of size, performance and features.
  • Products
    • >
  • Embedded System
    • >
比較狀態 :
已設定.要比較機種數 :
已設定.要比較機種 :
列表區塊.Now 位置狀態 :
列表區塊.單位區塊寬 :
列表區塊.Now X 位置 :
列表區塊.目標 X 位置 :
顯示框寬 :
列表寬 :
Rugged Embedded System

TANK | FLEX | ECN | ECW Series Embedded System

IEI offers complete rugged box pc products with a wide range of I/O interface and multiple expansions, allowing users to connect to different devices for comprehensive automation solution. IEI industrial rugged box pc provides a reliable platform to fulfill a wide variety of application demand, such as machine automation, surveillance station application and information kiosk.
CPU
Expansion

TANK-630-EHL

Fanless Embedded System
● Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
1 x 2042/52/80 B-key (SATA/USB 2.0)
1 x 2280 M-key (PCIe Gen3 x2)
● M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
1 x 2042/52/80 B-key (SATA/USB 2.0)
1 x 2280 M-key (PCIe Gen3 x2)
View Products

TANK-XM810 Pin-Fin Industrial Embedded System

TANK-XM810

High-Performance 10 th / 11 th Generation Intel® Core™ Processor Fanless Embedded Computer
● 10/11 th Gen Intel® Core™ CPU 35/65W
Intel® Core™™ i3-10100TE 2.3 GHz (up to 3.6 GHz, quad-core, 35W TDP)
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
● 10/11 th Gen Intel® Core™ CPU 35/65W
Intel® Core™™ i3-10100TE 2.3 GHz (up to 3.6 GHz, quad-core, 35W TDP)
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
M.2: 2 x 2280 M-key (PCle x2) bay (RAID 0/1 support)
Backplane: Optional
M.2: 2 x 2280 M-key (PCle x2) bay (RAID 0/1 support)
Backplane: Optional
View Products

TANK-XM811 Pin-fin Industrial Embedded System

TANK-XM811

High-Performance 12th/13th/14th Generation Intel® Core™ Processor Fanless Embedded Computer
12th/13th/14th Gen Intel® Core™ CPU 35/65W
Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
12th/13th/14th Gen Intel® Core™ CPU 35/65W
Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
● M.2:
1 x 2280 M-key (PCIe x4)
1 x 2230 A-key (USB+PCIe x1, supports vPRO)
● Backplane:
Optional
● M.2:
1 x 2280 M-key (PCIe x4)
1 x 2230 A-key (USB+PCIe x1, supports vPRO)
● Backplane:
Optional
View Products

FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors

FLEX-BX100-ULT5

8th Gen Intel® Whiskey Lake-U PoE PD Embedded System
View Products

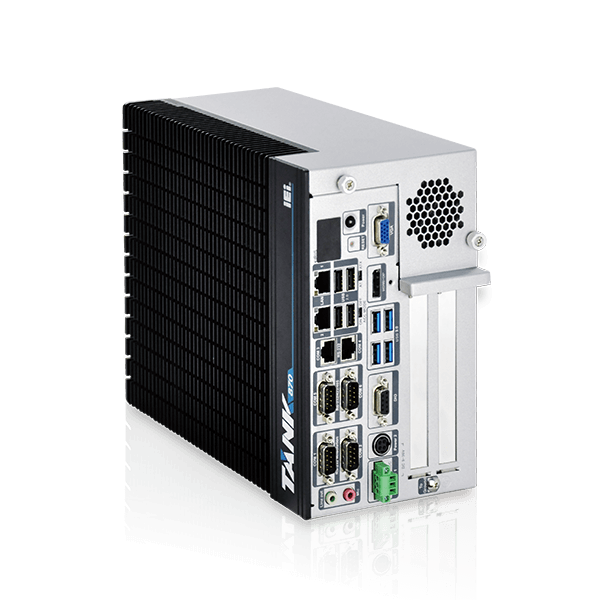

TANK-870-Q170 Rugged Embedded System for Factory Automation

TANK-870-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
●PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
2-slot model: 1 x PCIe x16, 1 x PCI
2-slot model: 2 x PCIe x8
4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni
●PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
2-slot model: 1 x PCIe x16, 1 x PCI
2-slot model: 2 x PCIe x8
4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni
View Products

TANK-870e-H110

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel 7th Gen Core CPU &
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
●PCIe Mini:
1 x Full-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
3A: 1 x PCIe x16, 2 x PCI
3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI
●PCIe Mini:
1 x Full-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
3A: 1 x PCIe x16, 2 x PCI
3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI
View Products

TANK-871-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
View Products

ECW-281B

Fanless Embedded System with Intel® Celeron® J1900 Processor
Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)
Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)
1 x Full-size PCIe Mini card slot (supports mSATA)
1 x Half-size PCIe Mini card (only for iRIS)
1 x Full-size PCIe Mini card slot (supports mSATA)
1 x Half-size PCIe Mini card (only for iRIS)
View Products
