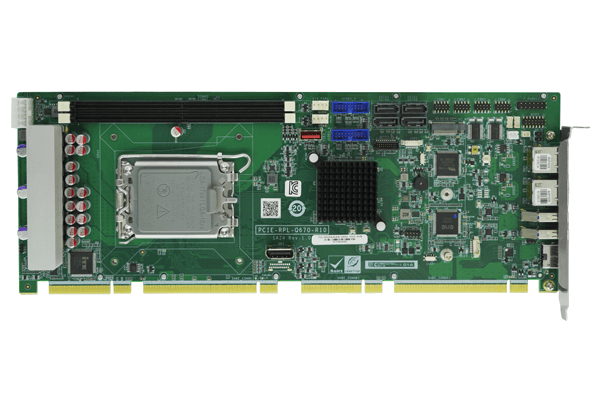

PCIE-RPL-Q670
» Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E
» Support two 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs
» Triple independent display via dual DP and HDMI™
» Support Intel® I226-LM and Intel® I226V 2.5GbE controller
» Support M.2 M key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Full Size Single Board Computer |
| System | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W) |
| Chipset | Intel® Q670E/Q670 |
| Memory | two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs |
| Memory Max. | up to 96GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 338 mm x 126 mm |
| Net Weight | GW:1000g / NW:500g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 1 x HDMI™ : HDMI1.4 4K@30Hz |
|
2 x Display Port - 1 x DP1.4 4K@60Hz, 180° 1 x DP1.4 4K@60Hz, 180°(Option) (The DP interface is not plugged in. If needed, MOQ is 100.) |
|
| Ethernet |
2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| Audio | HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O Interface | 2 x Internal RS-232 : 2x5 pin, P=2.54 |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.54 (RS485 support AFC) | |
| 4 x Internal USB 2.0 : to backplane | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s | |
| 1 x Internal USB 3.2 Gen2x1 : Type A 180° | |
| 4 x Internal USB 3.2 Gen1x2 : 2 X 10 pin P=2.00 (5Gb/s) | |
| 1 x I²C : 1x4 pin | |
| Expansion |
Description: 1 x PCIe Gen3 x16 & 4 x PCIe Gen3 x1 signal via golden finger 4 x PCI signal via golden finger |
| Other Features | |
| TPM | Support TPM 2.0 (TPM-IN03 module) & Intel PTT |
| Power | |
| Power Consumption |
3.3V@2.39A, 5V@9.68A, 12V@6.56A, 5VSB@0.35A (Intel® Core™ i9-12900 CPU with 16 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
| M.2 | 1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support |
Ordering Information
| PCIE-RPL-Q670-R10 | Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI,iDPM display module,Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
