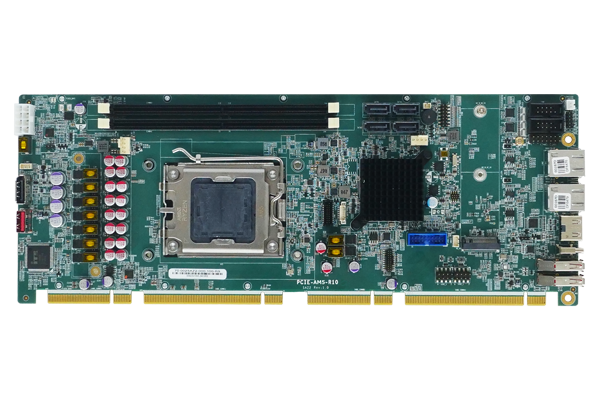

PCIE-AM5
» Full-size PICMG 1.3 CPU Card supports AMD 7000 & 8000G PHX1 series processor
» Support two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB
» Support DisplayPort 1.4, HDMI™
» Support Dual Intel® I226V 2.5GbE controller
» Flexible expansion with full-size PICMG1.3 CPU board
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Full Size Single Board Computer |
| System | |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors |
| Chipset | AMD A620 |
| Memory | two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 64GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 338 mm x 126 mm |
| Net Weight | GW:1000g / NW:500g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s (RAID 0/1/10 supported) |
| I/O Interface | |
| Display Output | 1 x Display Port : internal 180° DP 1.4, 4K @60Hz |
| 1 x HDMI™ : 4K @30Hz | |
| Ethernet |
2 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
|
3 x External USB 3.2 Gen2x1 - 2 x USB 3.2 Gen2 (Type-A) 1 x Type C (10Gb/s) |
|
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.54 | |
|
8 x Internal USB 2.0 - 4 x USB 2.0 (2x4 pin, P=2.54) 4 x USB 2.0 to the backplane |
|
| 2 x Internal USB 3.2 Gen1x2 : 5Gb/s, 2x10 pin | |
| 1 x Internal USB 3.2 Gen2x1 : 10Gb/s, internal Type A | |
| Expansion |
1 x M.2(NGFF) : M.2 M Key (2242/2280, PCIe Gen4 x4) NVMe support |
|
4 x PCIe x1 : signal via golden finger (support 1 x4, or 4 x1) |
|
|
1 x PCIe x16 : signal via golden finger (Support x16, or x8 + x8, or x4 + x4 + x4 + x4) |
|
| Power | |
| Power Supply | Support AT/ATX mode |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| PCIE-AM5-R10 | Full-size PICMG 1.3 CPU Card supports AMD Ryzen™ 7000 Series Desktop Processors,DDR5 SO-DIMM, Triple Display,Dual Intel 2.5GbE,USB3.2,M.2,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
