IMB-AM5
» AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G & 9000 PHX1 Series Desktop Processors
» Support four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 192GB
» Triple independent display via dual HDMI™, DP
» Support Dual Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen4 x16, M.2 M key expansion

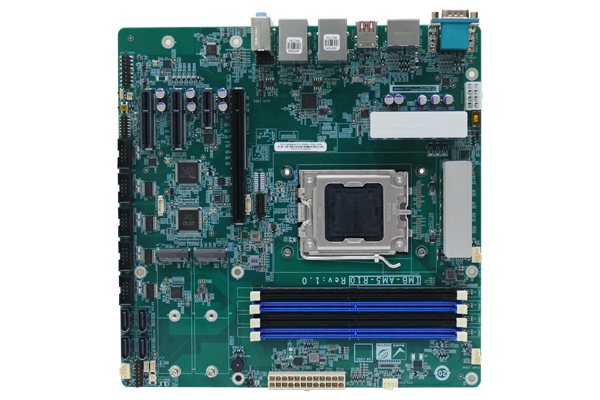

IMB-AM5 – microATX Motherboard
Compact Powerhouse for Modern Industrial Applications
In the rapidly evolving world of industrial technology, the demand for powerful, efficient, and compact solutions has never been higher. Our latest microATX motherboard, the IMB-AM5, powered by AMD Ryzen™ 7000 and 8000G PHX1 Series CPUs, offers unparalleled efficiency and performance. This space-saving motherboard is engineered for high performance and energy efficiency, perfectly tailored to meet the rigorous demands of modern industrial applications. With its multi-core processing power, advanced DDR5 memory capabilities, and PCIe Gen4 expandability, the IMB-AM5 is the ideal choice for latency-sensitive applications in Edge AI, automated visual inspection, industrial IoT, and more.
AMD Ryzen™ 7000 & 8000G CPUs
Integrated Radeon™ graphics
CPU Water Cooler
Support
DDR5
Support
Dual 2.5 GbE
LAN Ports
PCIe Gen4
Expansion
Powerful Processing with AMD Ryzen™ 7000
and 8000G PHX1 Series CPUs
Built on the revolutionary "Zen 4" architecture, AMD Ryzen™ 7000 & 8000G CPUs offer a leap in performance and efficiency, which makes IEI’s IMB-AM5 well-suited for wide variety of industrial applications for handling even the most demanding tasks.
High-Performance Cores
The AMD Ryzen™ 7000 series CPUs feature with up to 16 cores and 32 threads, providing the multitasking prowess needed for complex industrial operations.
Integrated Graphics
The IMB-AM5, powered by AMD Ryzen™ 7000 and 8000G series CPUs with integrated graphics, is optimized for visual processing tasks. This design not only saves space but also cuts costs by eliminating the need for additional GPUs. The 8000G series, equipped with Radeon™ 700M series graphics, provides enhanced visual performance, AI capabilities, and power efficiency, enabling advanced computing solutions that boost operational efficiency and drive down costs.
AI Ready
Powered by AMD Ryzen™ 8000G series, the IMB-AM5 features the world's first dedicated Neural Processing Unit (NPU), designed for efficient AI task execution. This integration enables real-time AI processing, making the motherboard perfect for applications requiring advanced machine learning and data analysis capabilities.
| Model | Cores/Threads | Boost / Base Frequency | Total Cache | TDP |
|---|---|---|---|---|
| AMD Ryzen™ 9 7950X | 16C/32T | Up to 5.7GHz / 4.5GHz | 80MB | 170W |
| AMD Ryzen™ 9 7900X | 12C/24T | Up to 5.6GHz / 4.7GHz | 76MB | 170W |
| AMD Ryzen™ 7 7700X | 8C/16T | Up to 5.4GHz / 4.5GHz | 40MB | 105W |
| AMD Ryzen™ 5 7600X | 6C/12T | Up to 5.3GHz / 4.7GHz | 38MB | 105W |
| AMD Ryzen™ 7 7700 | 8C/16T | Up to 5.3GHz / 3.8GHz | 24MB | 65W |
| AMD Ryzen™ 5 7600 | 6C/12T | Up to 5.1GHz / 3.8GHz | 32MB | 65W |
| AMD Ryzen™ 5 5600G | 6C/12T | Up to 4.4GHz / 3.9GHz | 22MB | 65W |
| AMD Ryzen™ 3 5300G | 4C/8T | Up to 4.2GHz / 3.4GHz | 12MB | 65W |
| Model | Cores/Threads | Graphics | Total Cache | TDP |
|---|---|---|---|---|
| AMD Ryzen™ 7 8700G |
8C/16T | AMD Radeon™ 780M graphics |
24MB | 65W |
| AMD Ryzen™ 5 8600G |
6C/12T | AMD Radeon™ 760M graphics |
22MB | 65W |
| AMD Ryzen™ 5 8500G |
6C/12T | AMD Radeon™ 740M graphics |
22MB | 65W |
| AMD Ryzen™ 3 8300G |
4C/8T | AMD Radeon™ 740M graphics |
12MB | 65W |
| Model | Cores/Threads | Graphics | NPU (AI Engine) |
|---|---|---|---|
| AMD Ryzen™ 7 8700G |
8C/16T | AMD Radeon™ 780M graphics |
YES |
| AMD Ryzen™ 5 8600G |
6C/12T | AMD Radeon™ 760M graphics |
YES |
| AMD Ryzen™ 5 8500G |
6C/12T | AMD Radeon™ 740M graphics |
N/A |
| AMD Ryzen™ 3 8300G |
4C/8T | AMD Radeon™ 740M graphics |
N/A |
Versatile Cooling Solutions for Enhanced Reliability
The IMB-AM5 addresses diverse industrial cooling needs with versatile options. It includes a 4-pin connector for standard CPU fans, dual 4-pin connectors for system fans, and an AIO pump connector for efficient liquid cooling—ideal for high-performance CPUs, demanding applications, or quiet environments. Whether you require simple air cooling or advanced liquid cooling, our microATX motherboard provides the flexibility to choose the best solution for your application.
Note: Please note that the CPU liquid cooler depicted in the image is not included in the package and is shown for illustrative purposes only.
Tailored Performance
Ryzen™ 7000 and 8000G Series - Find Your Perfect Fit!
AMD Ryzen™ |
V.S |
AMD Ryzen™
|
|---|---|---|
| Up to 16C/32T | Cores/ Threads |
Up to 8C/16T |
| Zen 4 | Architecture | Zen 4 |
| RDNA 2-based GPU | Integrated Graphics | Radeon™ 700M series graphics |
| N/A | NPU (AI engine) Inclusion | Y |
|
Application |
|
Exceptional Memory and Networking Capabilities
Dual-Channel DDR5 5200
Enables lightning-fast memory speeds and high densities with DDR5- 5200, featuring on-die ECC for a significant bandwidth boost in data-intensive tasks. This enhancement improves multitasking capabilities and ensures reliable operation in mission-critical environments.
2.5GbE LAN Ports
The IMB-AM5 features dual high-speed 2.5GbE LAN ports, providing faster data transfer rates over the network. This is particularly beneficial for environments requiring large data transfers or networked computing tasks.
Versatile Expansion & Storage Options
The IMB-AM5’s expansion and storage options provide the flexibility needed to adapt to wide range of industrial scenarios
Expansion Slots
The motherboard comes with one PCIe Gen4 x 16, two PCIe Gen4 x 4 slots and one PCIe Gen4 x 1 slot, allowing for installation of additional high-end graphics cards, NICs, accelerator cards, etc.,
This flexibility allows your system to be customized for specific modern industrial applications, ranging from advanced graphics processing to additional peripheral connections.
* When equipped with the Ryzen™ 8000G PHX1, the Slot 3 PCIe Gen4 x4 is disabled.
Storage Support
The IMB-AM5's 4 x SATA 6Gb/s ports and 2 x M.2 M key slots provide extensive connectivity for traditional hard drives, SSDs, and NVMe SSDs, boosting system responsiveness and speed for modern industrial applications. * When equipped with the Ryzen™ 8000G PHX1, the M.2 M Key (PCIe x4) is disabled.
Advanced Triple Independent Display
Visual output is crucial for monitoring and control systems in industrial environments, and the IMB-AM5 delivers exceptional display capabilities. Capable of driving displays at 4K resolution, the IMB-AM5 supports triple independent displays via DisplayPort (DP) and HDMI™. This feature provides versatile visual output options, enabling detailed monitoring and control across multiple screens.
Applications
Our microATX motherboard, the IMB-AM5, is ideally suited for a wide range of industrial applications. With its multi-core processing capabilities, integrated graphics, and neural processing units, it delivers exceptional edge performance, setting new standards in the industry.
Machine Vision
& AOI
Industrial IoT
Robotics & Control
Systems
AI & Machine
Learning
Optional Accessories
Cable
CPU Fan
19800-003100-100-RS
•Dual-port USB cable with bracket
•Length: 300mm
•Pin header: Two 4-pin (1x4), p=2.54 mm
32205-000702-200-RS
• RS-232 cable
• Length: 230mm
• Pin header: 10-pin (2x5), p=2.54 mm
19100-000344-00-RS
• 65W CPU fan
• Heatsink: 58 x 45.5 x 71.81 (mm)
• Fan: 60 x 60 x 25.4 (mm)
19100-000345-00-RS
•65W CPU fan
•Heatsink: 72 x 70 x 25.5 (mm)
•Fan: 70 x 70 x 15.3 (mm)
19100-000348-00-RS
• 120W CPU fan
• Heatsink: 98 x 72 x 120 (mm)
• Fan: 92 x 92 x 25 (mm)
19100-000338-00-RS
• 170W CPU fan
• Heatsink: 120 x 60 x 150.7 (mm)
• Fan: 120 x 120 x 25 (mm)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Micro-ATX |
| System | |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G & 9000 PHX1 Series Desktop Processors |
| Memory | Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 192GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x PUMP fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 2 x HDMI™ : up to 4096 x 2304@30Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| Ethernet |
2 x LAN - LAN1: Intel® I226-V 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O Interface | 1 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 1 x Internal RS-232/422/485 : RS-485 support AFC, 2x5 pin, P=2.54 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.54 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 4 x External USB 3.2 Gen1x2 : Type-A, 5Gb/s | |
| Expansion | 1 x PCIe x16 : PCIe x16 (Slot1) with x8 Signal Gen4 |
| 2 x PCIe x4 : PCIe x4 open-end Gen4 (slot3 will disable with Ryzen™ 8000G PHX1) | |
| 1 x PCIe x1 : PCIe x1 (Slot 2, PCIe Gen4 x1 signal) | |
|
2 x M.2(NGFF) - 1 x M.2 M Key (2242/2280, PCIe x4) NVMe support (disable with Ryzen™ 8000G PHX1) 1 x M.2 M Key (2242/2280, PCIe x2) NVMe support (NVME RAID 0/1 support) |
|
| Power | |
| Power Consumption |
3.3V@1.66A, 5V@9.29A, 12V@16.33A, 5VSB@0.07A (AMD Ryzen™ 9 7950X 170W with Transcend JM5600ALE-16GB X4 memory, EuP mode disable) |
| Power Supply | Support AT/ATX mode |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| IMB-RZ7000-R10 | micro-ATX motherboard supports AMD 7000 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|---|
| IMB-AM5-R10 | micro-ATX motherboard supports AMD 7000&8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
Package Contents
| Package Content |
|
|---|
