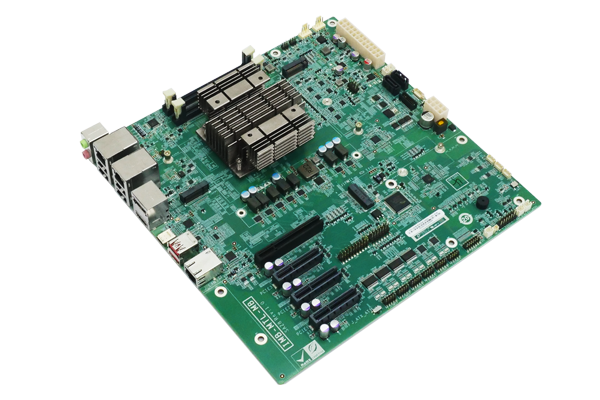

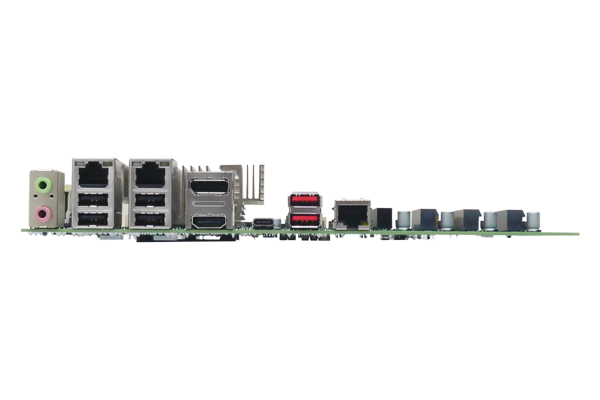

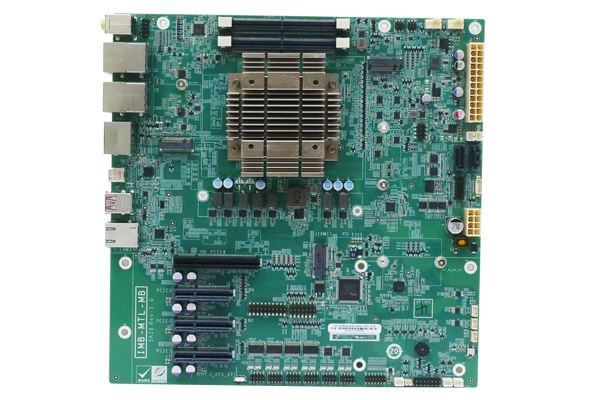

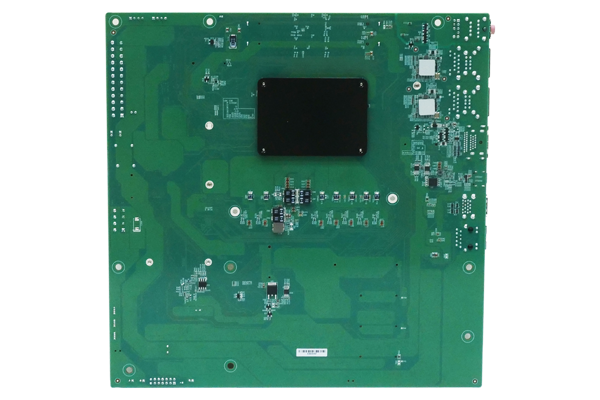

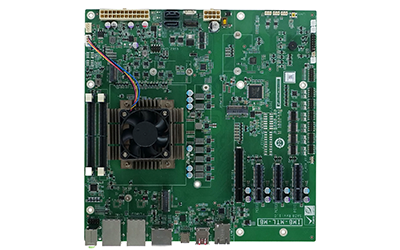

IMB-MTL
» 14th Gen. Intel® mobile Meteor Lake-H on-board processor
» Support two 262-pin 5600 MHz DDR5 SO-DIMM, system up to 96GB
» Support dual Intel® 2.5GbE controller
» Support PCIe Gen5 x8, PCIe Gen4 x4, M.2 M key and M.2 B key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Micro-ATX |
| System | |
| CPU | 14th Gen. Intel® mobile Meteor Lake-H on-board processor |
| Memory | Two 262-pin 5600 MHz DDR5 SO-DIMM |
| Memory Max. | 96GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | GW: 1200g / NW: 700g |
| Power | |
| Power Consumption | TBD |
| Power Supply | ATX |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| IMB-MTL-U7E-R10 | Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 155H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|---|
| IMB-MTL-U7A-R10 | micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-MTL-U5E-R10 | Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 125H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-MTL-U5A-R10 | micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
Package Contents
| Package Content |
|
|---|
