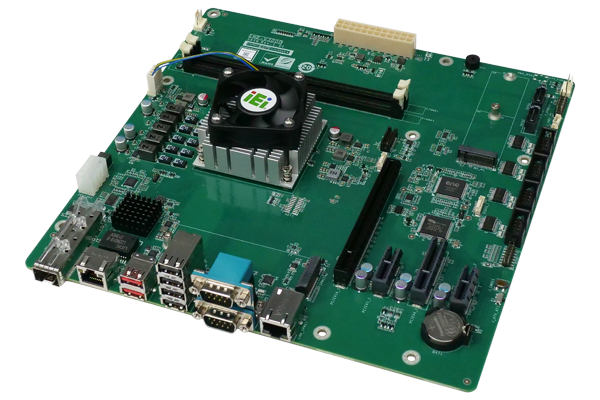

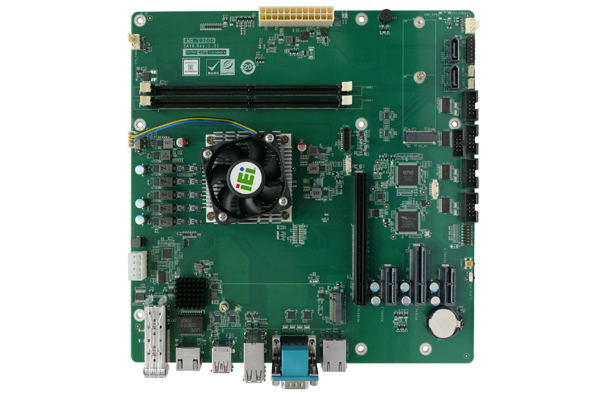

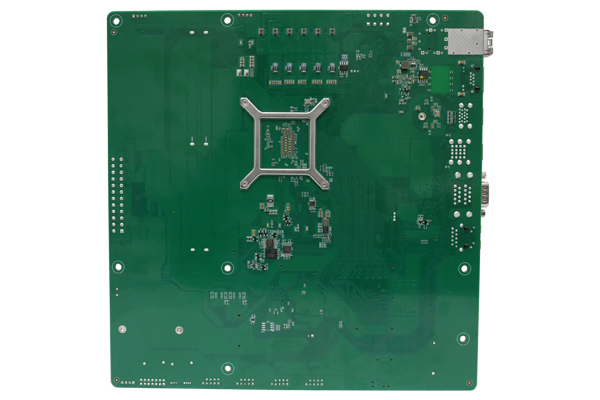

IMB-V3000

Form Factor
Form Factor	Micro-ATX
System
CPU	AMD V3000 Series Processors
Memory	Two 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs
Memory Max.	96GB
Cooling method / System Fan	1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x 4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm)	244mm x 244mm
Net Weight	GW: 1200g / NW: 700g
Storage
Storage	2 x SATA : 6Gb/s (RAID 0/1 supported)

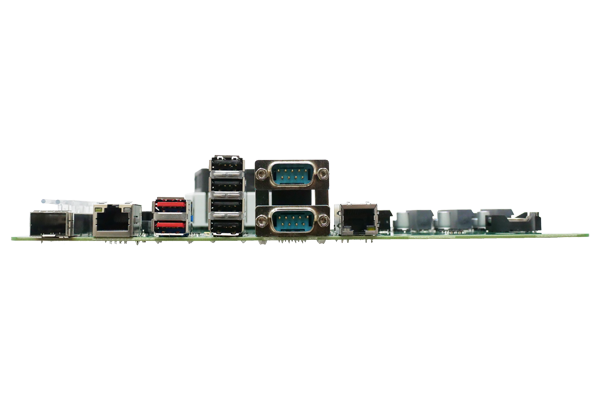

I/O Interface
Ethernet	2 x LAN - LAN1: 10GbE SFI (SFP+) LAN2: 10GbE ASE-T (RJ45)
I/O Interface	1 x DIO : 12-bit digital I/O (2x7 pin)
	2 x External RS-232/422/485 : RS-485 support AFC
	4 x External USB 2.0 : Type-A
	2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s
	4 x Internal RS-232 : 2x5 pin, P=2.54
Expansion	2 x M.2(NGFF) - 1 x M.2 M Key (2242/2280, PCIe Gen4 x1) support NVMe 1 x M.2 B Key (2242/2280, PCIe Gen4 x1) support NVMe (IPMI)
	2 x PCIe x1 : PCIe Gen4 x1
	1 x PCIe x16 : PCIe Gen4 x16 (Slot1) with x8 Signal
	1 x PCIe x4 : PCIe Gen4 x4 open-end
Power
Power Consumption	TBD
Power Supply	ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant
Environment
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-30°C ~ 70°C
Humidity	5% ~95%, non-condensing

Form Factor

Micro-ATX

System

CPU

AMD V3000 Series Processors

Memory

Two 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs

Memory Max.

96GB

Cooling method / System Fan

1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x 4 pin)

Physical Characteristics

Dimensions (LxWxH) (mm)

244mm x 244mm

Net Weight

GW: 1200g / NW: 700g

Storage

2 x SATA : 6Gb/s (RAID 0/1 supported)

I/O Interface

Ethernet

2 x LAN -
LAN1: 10GbE SFI (SFP+)
LAN2: 10GbE ASE-T (RJ45)

I/O Interface

1 x DIO : 12-bit digital I/O (2x7 pin)

2 x External RS-232/422/485 : RS-485 support AFC

4 x External USB 2.0 : Type-A

2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s

4 x Internal RS-232 : 2x5 pin, P=2.54

Expansion

2 x M.2(NGFF) -
1 x M.2 M Key (2242/2280, PCIe Gen4 x1) support NVMe
1 x M.2 B Key (2242/2280, PCIe Gen4 x1) support NVMe (IPMI)

2 x PCIe x1 : PCIe Gen4 x1

1 x PCIe x16 : PCIe Gen4 x16 (Slot1) with x8 Signal

1 x PCIe x4 : PCIe Gen4 x4 open-end

Power

Power Consumption

TBD

Power Supply

ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant

Environment

Operating Temperature

-10°C ~ 60°C

Storage Temperature

-30°C ~ 70°C

Humidity

5% ~95%, non-condensing

IMB-V3000-C48-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C46-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C44-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C18-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C16-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMB-V3000-C14-R10	micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
