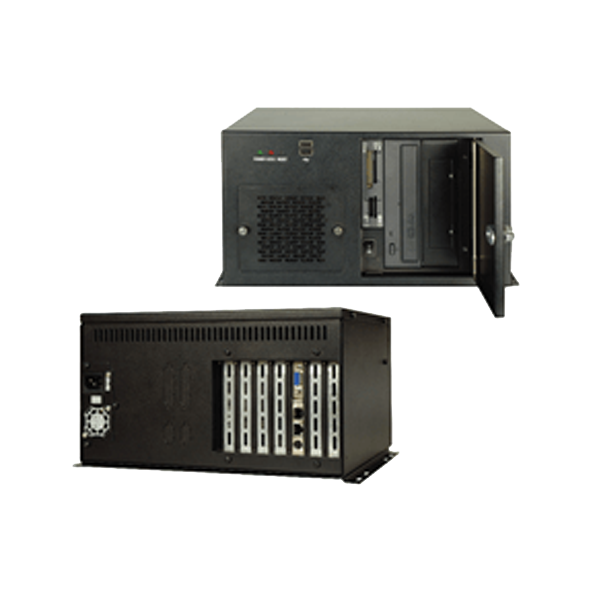

PAC-700G
» RoHS compliant design
» Two USB ports on the front panel
» One, 8 cm cooling fan with fan filter
» Easy access design for quick fan replacement
» Lockable door prevents unauthorized access
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Half-size, slot CPU card |
| I/O Interface | |
| I/O Openings | 2 x LPT, 2 x COM |
| I/O Ports | 2 x USB on front panel |
| Expansion Slots | |
| Expansion Slots | 7 slots |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays |
2 x 5.25" + 1 x Front accessible 3.5" or 1 x 5.25" + 2 x Front accessible 3.5" or 1 x 5.25" + 1 x Front accessible 3.5" + 1 x 3.5" HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | B: Black |
| Dimensions | |
| Dimensions | 279 mm x 321 mm x 176 mm(DxWxH) |
| Weight | |
| Weight | 6.2 kg/9 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PAC-700GBPX-R20/180W | 7-Slot Half size chassis,Black,Powder paint,with 180W ATX PSU,RoHS |
|---|---|
| PAC-700GBPX-R20 | 7-Slot Half Size chassis,ATX Power Switch,Black,Powder paint,W/O PSU,RoHS |
| PAC-700GB-R20 | 7-Slot Half size chassis,AT Power Switch,Black,Powder paint,W/O PSU,RoHS |
