End of Life Notice
* Effective Date: 2019/10/23

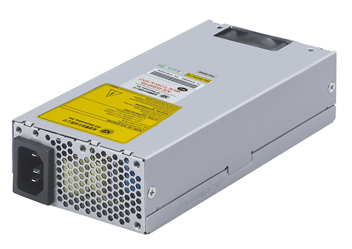

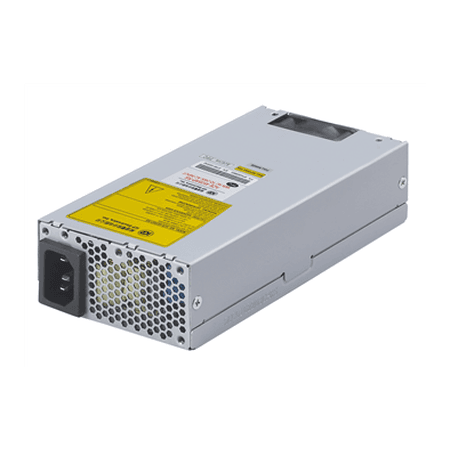

220 W 1U Type ATX Power Supply
Hardware Spec.
| General | |
|---|---|
| Watt | 220W |
| Efficiency | 68% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | -20°C ~ 80°C |
| Dimensions | 150 x 81.5 x 40.5 |
| Output Connector | 20-pin ATX, 4-pin 12 V, 3 x HDD, 1 x FDD |
| Input | |
| Voltage | 90~264 VAC Full Range |
| Output | |
| Voltage | +3.3V/14A,+5V/16A,+12V/16A,+12v2/10A,-12V/0.8A,5Vsb/2.5A |
Ordering Information
| ACE-A622B-RS-R10 | 1U flex ATX 220W Power Supply;90~264VAC;ERP;CCL;RoHS |
|---|
