TANK-610-BW

Fanless Embedded System with AWS IoT Greengrass Qualified

End of Life

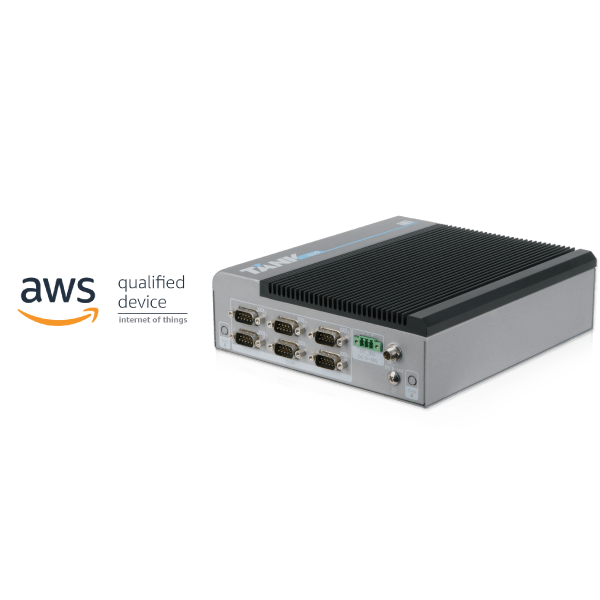

TANK-610-BW Fanless Embedded System
  • TANK-610-BW Fanless Embedded System

End of Life Notice

* Effective Date: 2024/05/17

» Intel® Celeron® N3160 processor
» Multiple COM ports: six RS-232 and two RS-232/422/485
» VGA and HDMI™ dual independent display
» mSATA and one x 2.5" SATA storage device
» Wide range temperature

Hardware Spec.

Form factor
SBC Form Factor CPU:
Intel® Celeron® N3160 processor (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Chipset:SoC
System Memory:
2 x 204-pin DDR3L 1.35V SDRAM SO-DIMM (system Max : 8GB)
I/O Interface
I/O Ports 4 x USB 3.0
Ethernet:
2 x RJ-45 PCIe GbE by Intel® I210-IT
COM Port:
6 x RS-232, 2 x RS-232/422/485
Display:1 x VGA, 1 x HDMI™
Resolution:
VGA: Up to 2560 x 1600, HDMI™: Up to 3840 x 2160
Audio:1 x Line-out, 1 x Mic-in
Wireless:1 x 802.11 b/g/n (optional)
Expansion Slots
Expansion Slots PCIe Mini:1 x Full size (support mSATA, co-lay SATA), 1 x Half size
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD Bay
Color
Color Black C + Silver
Dimensions
Dimensions 184 x 200.6 x 58.2
Weight
Weight 2.2 kg/3 kg
Environment
Operating Temperature -40°C ~ 60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing

Ordering Information

TANK-610-BW-N3/2G-R10 Fanless wide temperature embedded system with Intel® Celeron® N3160 1.6GHz,(up to 2.24 GHz,quad-core,TDP 6W),2GB DDR3L pre-installed memory,9 V~36 V DC,with RS-232/422/485,USB 3.0,VGA/HDMI™,dual Intel® PCIe GbE,RoHS

Package Contents

Package Content
  • 1 x Power cord

  • 1 x Power adapter (Meet PSE & ErP)

  • 1 x Wall mount bracket

  • 1 x Screw set
