- Embedded System >
- Industrial Chassis
- ...

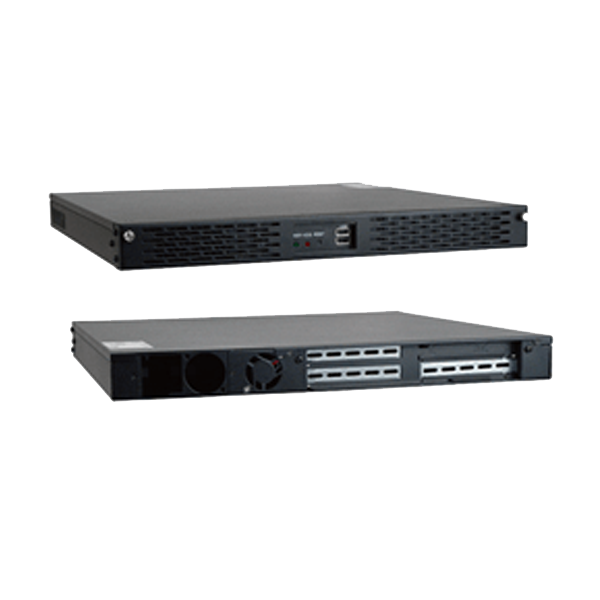

RACK-1150G
» RoHS compliant design
» Two front-accessible USB ports
» One 5.25” drive bay
» One 3.5” internal hard drive bay
» Three 4 cm cooling fans
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size CPU card |
| I/O Interface | |
| I/O Openings | 1 x COM, 1 x LPT |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 3 slots/ 2 slots (PE) |
| System | |
| Cooling method / System Fan | 3 x 4 cm |
| Drive Bays |
1 x 5.25” 1 x 3.5” HDD (internal) |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | B:Black |
| Dimensions | |
| Dimensions | 449 mm x 431 mm x 44 mm |
| Weight | |
| Weight | 7.5 kg /9.5 kg |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| RACK-1150GB-R20/180W | 1U 3-slot full size rackmount chassis for PICMG 1.0 backplane,Black,Powder paint,3x 4cm fan,with 180W ATX PSU,RoHS |
|---|---|
| RACK-1150GB-R20 | 1U 3-slot full size rackmount chassis for PICMG 1.0 backplane,ATX Power Switch,Black,Powder paint,W/O PSU,RoHS |
| RACK-1150GB-PE-R20/180W | 1U 2-slot full size rackmount chassis for PICMG 1.3 backplane,Black,Powder paint,3x 4cm fan,with 180W ATX PSU,RoHS |
| RACK-1150GB-PE-R20 | 1U 2-slot full size rackmount chassis for PICMG 1.3 backplane,ATX Power Switch,Black,Powder paint,W/O PSU,RoHS |
