End of Life Notice
* Effective Date: 2020/08/05

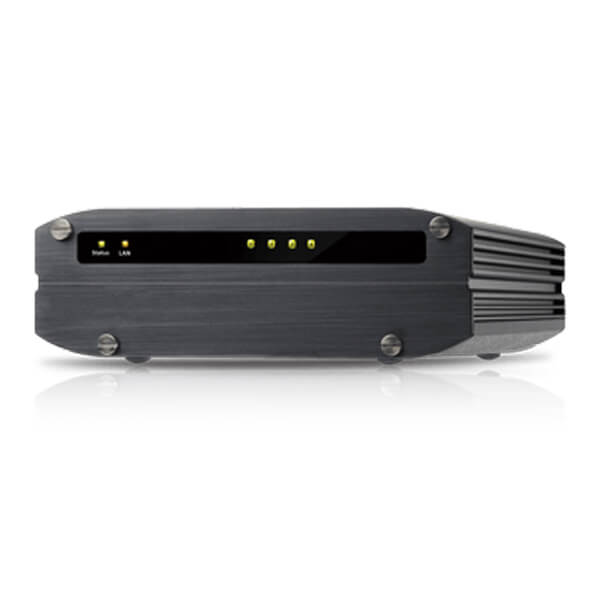

» Four 2.5＂ removable drive bays, and maximum storage capacity support up to 8TB
» 32GB eMMC (storage & boot)
» Rugged design with high resistance to vibration and impact
» Dust-resistant and fanless design
» Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 122°F)
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
*CPU: Intel® Atom™ E3845 quad-core 1.91GHz *Chipset: SoC *Memory: 2 x 204-pin DDR3L SO-DIMM. 8GB pre-installed (system max. 8GB) eMMC 32GB(storage and boot) *Power: Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V Input 2: 4-pin terminal block, 9-36V DC Consumption: 40W (Intel® Atom® E3845 CPU with 8 GB 1600 MHz DDR3L memory, 4 x 2.5" HDD) *Safety / EMC: CE/FCC *Supported OS: Microsoft® Windows® 10 IoT Enterprise / Linux |
| I/O Interface | |
| I/O Ports |
2 x USB 3.0 2 x USB 2.0 2 x RJ-45 PCIe GbE by Intel® I210 1 x HDMI™ Display port (Resolution: up to 1080p support) 1 x Mic-in 1 x Audio out |
| Expansion Slots | |
| Expansion Slots |
1 x Full-size PCIe Mini slot 1 x onboard SIM card slot |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 4 x 2.5” SATA HDD/SSD, removable drive bay |
| Indicator&Buttons | |
| Indicators | LED Indicators: Status, LAN, HDD 1-4 |
| Physical Characteristics | |
| Construction | Wall-mount |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 180 x 247 x 59 mm ( WxDxH ) |
| Weight | |
| Weight | 1.11 kg/3.2 kg ( Net/Gross ) |
| Environment | |
| Operating Temperature | -40°C ~ 50°C |
Ordering Information
| IBX-660-8G-R10 | Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz, pre-installed 8GB DDR3L RAM, 32GB eMMC |
|---|---|
| IBX-660-W10E64-E-R10 | OS Image with Windows 10 IoT Enterprise Entry 64-bit for IBX-660 series, with DVD-ROM, RoHS |
Package Contents
| Package Content |
|
|---|
