End of Life Notice
* Effective Date: 2020/12/31

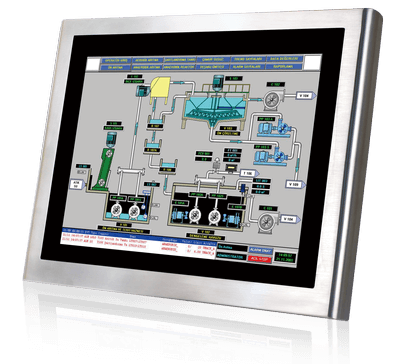

» 15” fanless panel PC with Intel® Skylake ULT processor
» IP69K high pressure, high temperature protection
» SUS304 stainless steel housing
» Operating temperature : -20°C ~ 50°C
» Flat glass PCAP touch with 6H hardness, resistive touch window
» Accessible HDD Bay
» M12 connections
Hardware Spec.
| Dimensions | |
|---|---|
| Dimensions | 414 x 328.4 x 51.9 |
| Display | |
| Backlight MTBF(hrs) | 70000 |
| Brightness(cd/m2) | 450 |
| Contrast Ratio | 800:1 |
| LCD Size | 15” |
| Max Resolution | 1024x768 |
| Environment | |
| IP Level | IP69K |
| Operating Temperature | -20°C ~ 50°C |
| Storage Temperature | -30°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots |
1 x Full-size PCIe Mini card slot (SATA 6Gb/s) 1 x Full-size/half-size (PCIe x1 and USB 2.0 signals) 1 x M.2 B-key slot (2242/2260/2280 with USB 3.0, PCIe x2 and SATA signals) |
| I/O Interface | |
| Ethernet | 2 x PCIe GbE by Intel® I210 controller |
| Power | |
| Power adapter |
60W/12V waterproof power adapter VAC:90V~264V; 12V/5A; 60W |
| Power consumption | 43W |
| Power Requirement | 9-36V DC |
| System | |
| Chipset | Intel® Skylake ULT |
| CPU | 6th generation Intel® Core™ i5 and Celeron® ULT processor |
| Memory Ext. | 4GB |
| Memory Max. | 32GB |
| Storage |
1 x 2.5” SATA SSD bay 1 x mSATA 1 x M.2 B-key (2242/2260/2280) |
| I/O Interface | |
| I/O Interface | 1 x DC Input Jack(5-pin M12) |
| 2 x LAN(8-pin M12 X-Code) | |
| 1 x Power Switch | |
| 2 x RS-232(8-pin M12) | |
| 2 x USB 2.0(8-pin M12) | |
Ordering Information
| INOX-F15C-ULT3-i5/PC/4G-R10 | 15" 450cd/m² XGA fanless Stainless panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, PCAP touch, R10 |
|---|---|
| INOX-F15C-ULT3-C/PC/4G-R10 | 15" 450cd/m² XGA fanless Stainless panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, PCAP touch, R10 |
Package Contents
