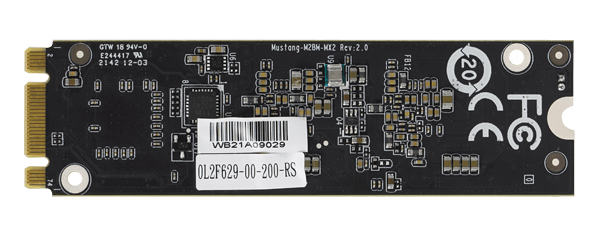

Mustang-M2BM
» M.2 BM key form factor (22 x 80 mm)

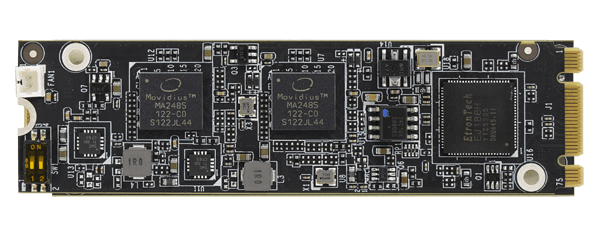

» 2 x Intel® Movidius™ Myriad™ X VPU MA2485
» Power efficiency, approximate 7W
» Operating Temperature -20°C~60°C (Tested in IEI FLEX-BX200)
» Powered by Intel's OpenVINO™ toolkit
Hardware Spec.
| System | |
|---|---|
| Chipset | 2 x Intel® Movidius™ Myriad™ X MA2485 VPU |

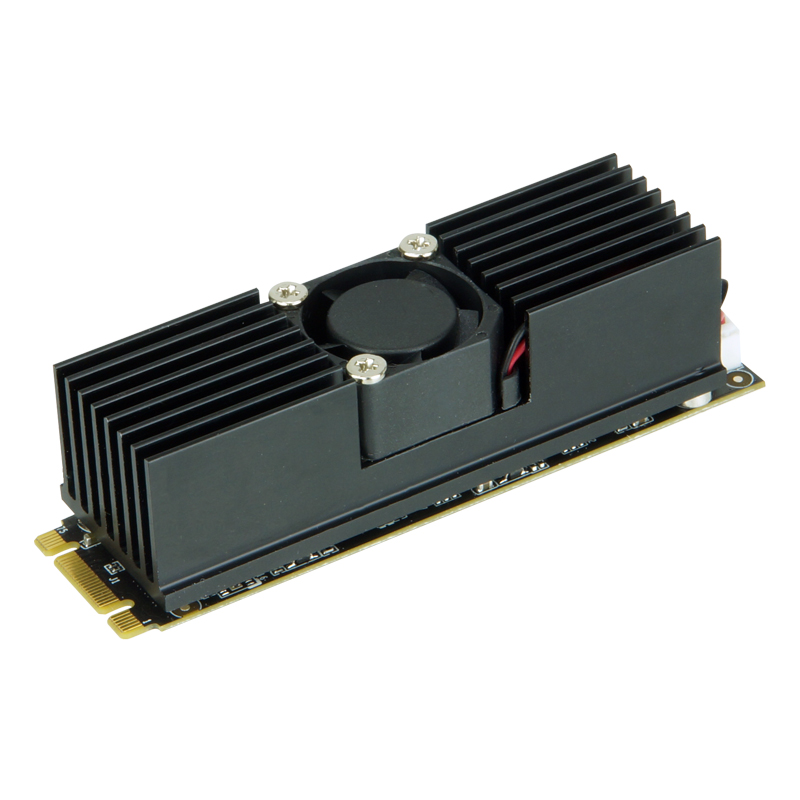

| Cooling method / System Fan | Active Heatsink |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 22 X 80 |
| Power | |
| Power Consumption | Approximate 7W |
| Environment | |
| Operating Temperature | -20°C ~ 60°C (Tested in IEI FLEX-BX200) |
| Humidity | 5% ~ 90% |
| Card Slot Interface | |
| M.2 | BM Key |
Ordering Information
| Mustang-M2BM-MX2-R20 | Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22mmx80mm, RoHS |
|---|
