End of Life Notice
* Effective Date: 2022/06/13
1. Mini ITX form factor with AMD® Ryzen™ Embedded processor supports dual-channel ECC DDR4 SO-DIMMs
2. Maximum up to quadruple DisplayPort output for multi-display support
3. M.2 slot support SATA or PCIe (2242/2280) & PCIe x16 slot support
4. Chassis intrusion detect pin and ECC support in gaming applications
5. COM RS-232 support Cctalk, TTL
6. TPM 2.0 hardware security function supported by TPM module
A New Class of Performance
The AMD Ryzen™ Embedded V1000 & R1000 processor family brings together the breakthrough performance of the pioneering AMD “Zen” CPU and “Vega” GPU architectures in a seamlessly-integrated SoC solution that sets a new standard in processing power for next-generation embedded designs.
- Up to 2X Increase in Performance v. Previous Generation
- Up to 3X Better GPU Performance v. Competition
- Up to 46% Better Multi-threaded Performance v.Competition
Better Performance
- Bringing Video to Life H.265 enc/dec, VP9 decode
- Leading Edge Interfaces HDMI™ 2.0b, Edp1.4, DP1.4
- Up to 4 x 4K60 Native Display
Better Security Features
- AMD Secure Processor
- Secure Memory Encryption
- Secure Boot
Better Security Features
- Optimized Design 26% Smaller Footprint
- Market Leading Memory
- Market Leading Memory Bandwidth
Better I/O
Up to Four DisplayPort Outputs
The 4K resolution is the technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. The most important point of view is gKINO-V1000 and gKINO-R1000 are adopted maximum have quadruple 4K DP display, the gKINO-R1000 with triple DP displays and gKINO-V1000 have quadraple DP displays, both of them are support 4K High resolution.
The Mini ITX form factor with AMD® Ryzen™ Embedded processor supports dual-channel ECC DDR4 SO-DIMMs. TPM 2.0 hardware security function supported by TPM module. Also the chassis intrusion detect pin and ccTalk support in gaming applications.
Dual-channel ECC DDR4 SO-DIMMs
TPM 2.0 hardware security function supported by TPM module
Chassis intrusion detect pin
PCIe x16 (with x8 Gen 3.0 signal) for expansion cards

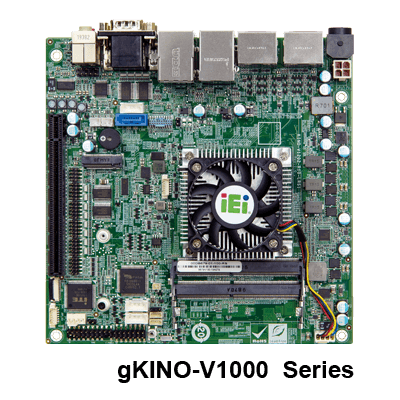

Mini ITX form factor with AMD® Ryzen™ Embedded V1000/R1000 Series Processor
Maximum up to 4 x 4K DisplayPort output for multi-display support
Powerful Security Function
TPM Expansion
The gKINO-V1000/gKINO-R1000 provides hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
- File & Folder En/De-cryption
- Personal secure drive
- Secure email
- Key transferring
- Security policy configuration
- LPC interface
TPM-IN02 TPM2.0 module for optional
Chassis intrusion detection
The internal chassis intrusion connector provides a chassis detection feature that detects if the chassis cover has been removed. An alarm will be triggered to notify users through the onboard speaker or the PC speaker once the cover is removed.
ccTalk Support
ccTalk is a serial protocol in widespread use throughout the money transaction and point-of-sale industry. ccTalk utilized to talk to the host controller can be applied in peripherals such as currency detectors for coins and banknotes found in a diverse range of automatic payment equipment in transportation, ticketing, payphones, amusement machines, and retail cash management.
Peripherals such as currency detectors for coins and banknotes.
Payment equipment such as: transportation, ticketing, payphones, amusement machines, and retail cash management.
Application Field
Gaming Machines
Digital Signage
Industrial Controls & Automation
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX Motherboard |
| System | |
| CPU |
AMD® Ryzen™ Embedded V1605B, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W AMD® Ryzen™ Embedded V1202B, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12-25W AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12-25W |
| Memory | 2 x SO-DIMM DDR4 2400MHz up to 64GB (ECC support) |
| Memory Max. | Up to 64GB |
| Cooling method / System Fan | 1 x CPU fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW:900g / NW:400g |
| Storage | |
| Storage | 1 x M.2(NGFF) |
| 1 x SATA | |

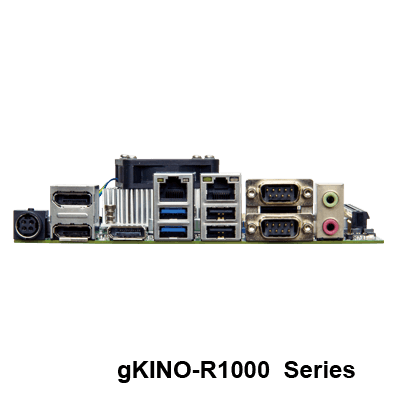

| I/O Interface | |
| Display Output | 4 x Display Port |
| Ethernet | 2 x LAN: GbE LAN (RTL 8119I) |
| Audio | 1 x Front Audio(2x5-pin) |
| HD Audio: Realtek ALC662 HD audio codec | |
| 1 x Line out | |
| 1 x Mic | |
| 1 x S/PDIF | |
| 2 x Speaker: 2 x 6W audio amplifier L+R | |
| I/O Interface | 1 x DIO: 8-bit digital I/O (2x5 pin) |
| 2 x External RS-232 | |
| 2 x External USB 2.0 | |
| 2 x External USB 3.2 Gen1x1 | |
| 1 x External USB 3.2 Gen1x2 | |
|
6 x Internal RS-232- Detail: 2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54) 4 x RS-232 (2x5 pin, P=2.00) |
|
| 2 x Internal USB 2.0(2x4 pin, P=2.0) | |
| Expansion | 1 x M.2(NGFF): 1 x M.2 2242/2280 M key (PCIe x2/SATA) |
| 1 x PCIe x16(with x8 Gen 3.0 signal) | |
| Other Features | |
| TPM | 1 x TPM 2.0 connector (2x10 pin) (LPC interface) |
| Speaker |
2 x 6W audio amplifier L+R 1 x onboard SPDIF output |
| Power | |
| Input |
12V DC input 1 x External DC jack (4-pin DIN) 1 x Internal power connector (2x2 pin) |
| Power Consumption |
12V@5.144A (AMD Ryzen V1605B 2.0GHz CPU with 2666 MHz 32GB DDR4 memory) 12V@5.146A (AMD Ryzen R1606G 2.6GHz CPU with 2666 MHz 32GB DDR4 memory) |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -10°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| gKINO-V1605B-R10 | Mini-ITX SBC supports AMD® Ryzen™ Embedded V1605B on board SoC (quad-core 2.0GHz, 15W) , DDR4, quadruple independent displays, quadruple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS |
|---|---|
| gKINO-V1202B-R10 | Mini-ITX SBC supports AMD® Ryzen™ Embedded V1202B on board SoC (dual-core 2.3GHz, 15W) , DDR4, quadruple independent displays, quadruple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS |
| gKINO-R1606G-R10 | Mini-ITX SBC supports AMD® Ryzen™ Embedded R1606G on board SoC (dual-core 2.6GHz, 15W) , DDR4, triple independent displays, triple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS |
| gKINO-R1505G-R10 | Mini-ITX SBC supports AMD® Ryzen™ Embedded R1505G on board SoC (dual-core 2.4GHz, 15W) , DDR4, triple independent displays, triple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS |
