- Medical Computer >
- Medical Panel PC
- ...

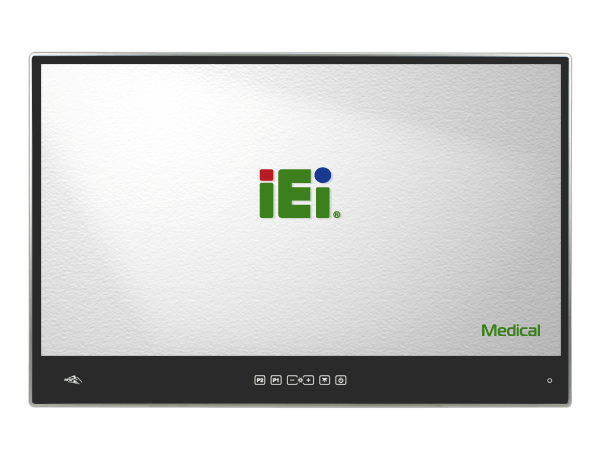

POCi-W22C-ULT5
» 14nm 8th generation Intel® Whiskey Lake U platform
» Aluminum front bezel (IP66) & PC/ABS rear cover
» Chemical etching AG coating
» Modular PCIe x4 expansion slot
» Dual reading light
» FHD IPS panel with optional DICOM preset module

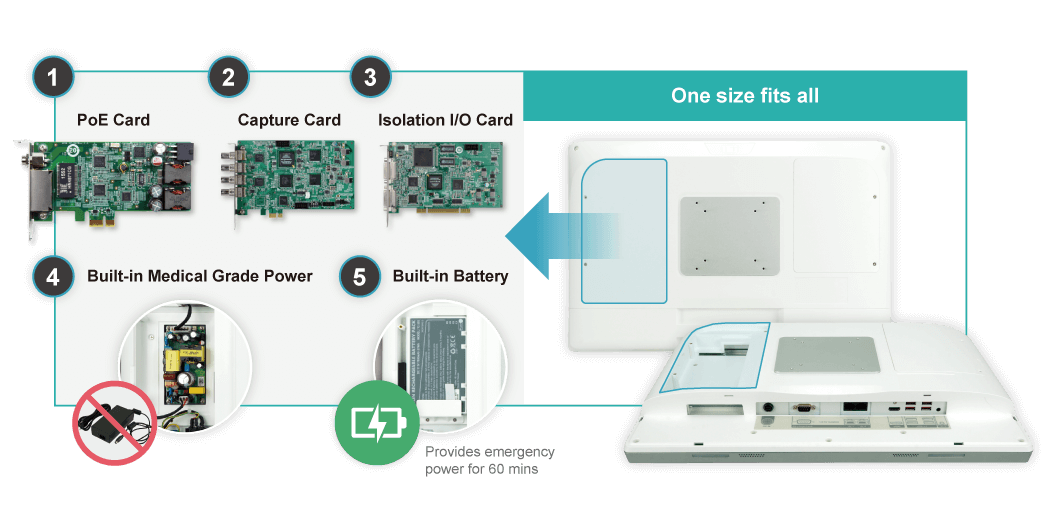

Modular Expansion Design
The highly expandable PCIe x4 slot makes the whole system more flexible and easily meet the individual needs from different applications. For instance, adopting an AI accelerator card to enhance computing power, adding an all-in-one capture card to connect with medical devices, integrating PoE injector card with webcam, or expanding the desired I/O card for multiple usage.

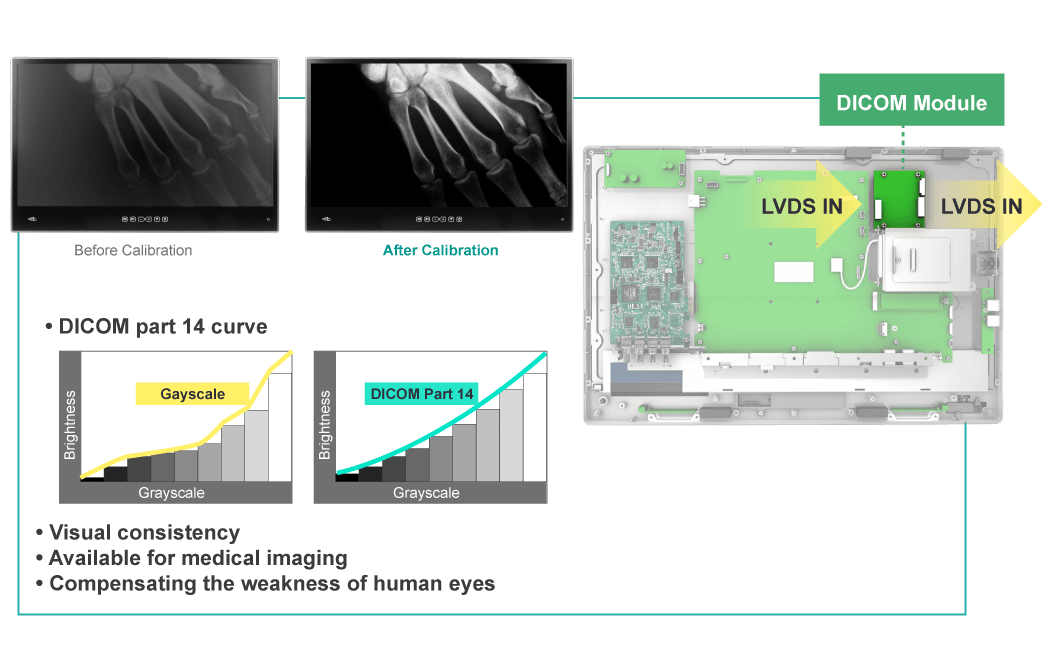

IEI Developed DICOM Module Preset

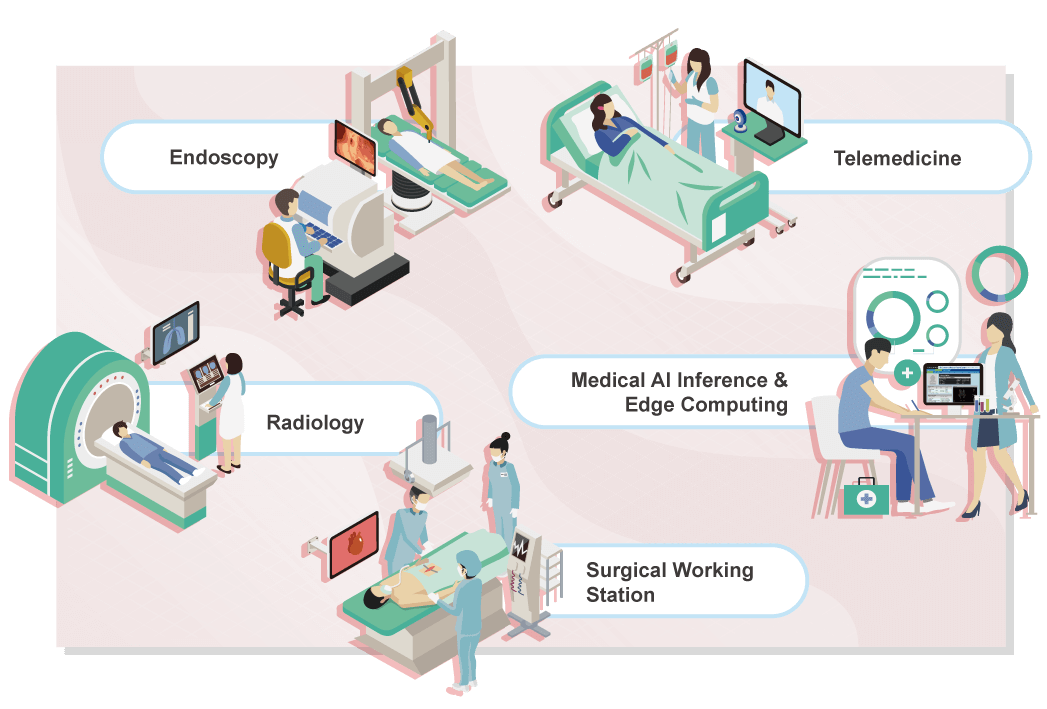

Perfect Fit in Various Medical Fields
Hardware Spec.
| Form factor | |
|---|---|
| Form factor |
* 14nm 8th generation Intel® Whiskey Lake U platform * Aluminum front bezel (IP66) & PC/ABS rear cover * Chemical etching AG coating * Modular PCIe x4 expansion slot * Dual reading light * FHD IPS panel with optional DICOM preset module |
| Display | |
| LCD Size | 21.5” (16:9) |
| Brightness(cd/m2) | 350 |
| Max Resolution | 1920 (W) X 1080 (H) |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 30,000 (LED backlight) |
| System | |
| Cooling method / System Fan | fanless |
| CPU |
Intel® Core™ i7-8665UE (Whiskey Lake ULT platform) Intel® Core™ i5-8365UE (Whiskey Lake ULT platform) |
| HDD | 1 X 2.5” accessible SATA HDD/SSD bay |
| SSD | 1X M.2 2242/60/80 M key (PCIe x4) |
| Communication | |
| Bluetooth | Bluetooth V5.0 (M.2 2230) |
| Wi-Fi | IEEE 802.11 ax 2T2R module (Wi-Fi 6 Module) |
| I/O Interface | |
| Ethernet |
1 X Isolated Gigabit LAN (I219 supports Intel® vPro) 1 X Isolated Gigabit LAN (I211) |
| Audio | 1 X Combo audio-out / mic-in |
| Expansion |
1 X PCIe x4 3S3P Li-ion battery pack, 11.1V, 7800mAh 150W, 85 ~264VAC, medical power supply |
| USB |
4 X USB 3.2 Gen 2 port 2 X USB 2.0 port (side) |
| RAM | DDR4 SO-DIMM up to 64GB |
| Power | |
| Input | 19V DC input |
| Power adapter | 150W medical power adapter |
| Power Supply | 150W, 85 ~264VAC, medical power supply (Optional) |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Operating Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Safety & EMC |
CE, FCC Class B Part18 EN 60601-1:2006/A1:2013 (Edition 3.1) EN 60601-1-2: 2015 (Edition 4.0) |
| Humidity | 10% ~ 95% (non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| IP Level | Front: IP66 |
| Physical Characteristics | |
| Color | White |
| Mounting | Wall, Stand and Arm VESA 75/100 |
| Dimensions (LxWxH) (mm) | 507.5 X 335.5 X 64.5 |
| Net Weight | 6.9 kg |
| Construction |
Front bezel: Aluminum die-casting Rear cover: ABS+PC plastic (Chemical resistant) |
| Touch | |
| Touch Screen | Projected capacitive type with USB interface |
| Touch Controller | EETI (80H84) |
| Touch Pad |
Projected capacitive type with 10-point multi-touch Chemical etching AG |
| Other Features | |
| Audio | 2 X 3W speaker |
| TPM | TPM-IN03-R10 (Optional) |
| OSD Function | |
| OSD Function |
Power on/off Reading light on/off Brightness + Brightness - Backlight & touch lock on/off-->P1 DICOM Mode button ->P2 |
Ordering Information
| POCi-W22C-ULT5-i7/PC/4G-R10 | 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10 |
|---|---|
| POCi-W22C-ULT5-i7/PC/4G-BP-R10 | 21.5” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10 |
| POCi-W22C-ULT5-i7/PC/4G-B-R10 | 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10 |
| POCi-W22C-ULT5-i5/PC/4G-R10 | 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10 |
| POCi-W22C-ULT5-i5/PC/4G-BP-R10 | 21.5” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10 |
| POCi-W22C-ULT5-i5/PC/4G-B-R10 | 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10 |
Package Contents
| Package Content |
|
|---|
