End of Life Notice
* Effective Date: 2024/09/06
• Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz
• Onboard 4GB DDR4
• Six 2.5GbE RJ-45 ports (three via Marvell CN9130; three via Marvell 88F8215)
• 4 GB eMMC; one console port (pin-header); one reset button
• LED indicators: status/power & WAN/LAN interface indicator
• Pre-installed OpenWrt
Why You Need Software Defined Router?
High Reliability, Performance and Availability
HIGH SCALABILITY
Rich open resource services to achieve any requirement
SUPER SPEED
Design with 2.5GbE and 10GbE ports for faster package transfer
*Support for PUZZLE-M902 OnlyFASTER TIME TO MARKET
Deploy network applications and services faster by leveraging open software packages
Get Your Office Ready for New Gen. Software Defined Router

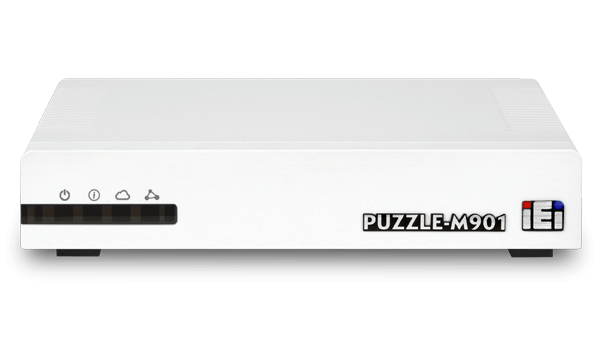

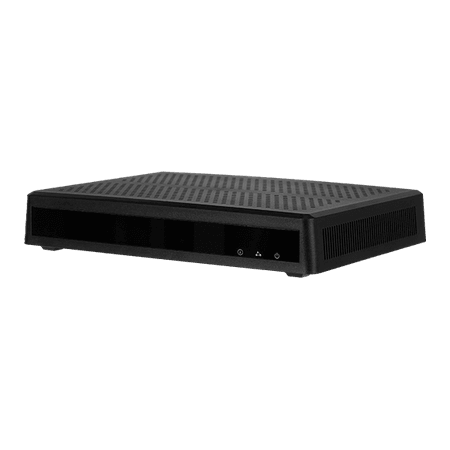

The growing number of connected personal and IoT devices has led to an overall increase in network density. The PUZZLE-M901 is IEI‘s latest product series - Software Defined Router, which is pre-installed with OpenWrt and features high speed and high flexibility to optimize your network performance.
This series is integrated with 2.5GbE ports and its function can also be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO and SMB networking infrastructure.
High-end Arm-based Platform with Marvell Quad-core SoC
Accelerate Your Networking and Security Applications
The Marvell CN9130 is a quad-core Armv8 Cortex-A72 system-on-ch ip (SoC). The high-performance processor offers a complete function and acceleration for networking and security applications. It can accelerate the packet processing for NAT, QoS and packet filtering, and offload the processor on multiple IPSec/SSL VPN tunneling.
High computing with quad-core SoC
Accelerate NAT, QoS, packet filtering,
and offload IPSec/SSL VPN tunneling
Flexible High-speed Network Deployment
Stability and Low Latency for Data Transmission
The PUZZLE-M901 can offer you high speed and low latency for data transmission with six 2.5 GbE ports.
6 x 2.5 GbE
Super speed for package transfer
Customize Your Network with OpenWrt
One Device, Diversified Results
The hottest open source project, OpenWrt, which is based on Linux-based embedded operating system and used on embedded devices to route network traffic. It uses the command line interface (ash shell) or the web interface (LuCI) to configure OpenWrt . Approximately 3,500 optional software packages can be installed through the opkg package management system. It provides detailed possibilities to configure common network-related functions, such as IPv4, IPv6, DNS, DHCP, VPN, shadowsocks, DLNA, routing, Dynamic DNS, firewall, NAT, port forwarding, file sharing via SAMBA, NFS, FTP, SFTP and MQ Telemetry Transport through Mosquitto.
The hottest open source project for router
3500
Various software packages you can have
Simple and Visible Network Operation
Faster and Easier than Before
Powered by OpenWrt, the PUZZLE-M901 provides a user-friendly web interface, a clear dashboard and port indicators to help you handle daily network management tasks. Users can not only efficiently manage all connected wires through OpenWrt OS in real time, but also configure firewall, VPN, security and advanced network functions.
Make Security Configuration Easier than Ever
Select, Configure, Run. Only Three Steps
There are multiple packages available in the OpenWrt package repository and designed with clear user interface to support IT developer for installing and deploying the security function of network. OpenVPN, a virtual private network (VPN), and Firewal l3 (fw3) which uses netfilter/iptable rule builder for firewall applications, are two of the most popular packages for creating high reliable network security.
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Desktop |
| System | |
| CPU | Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz |
| Memory | System: 4G |
| Cooling method / System Fan | Active Fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 166.4 x 145.7 x 34 |
| Storage | |
| Storage | 1 x M.2(NGFF) : 2242 M key M.2 PCIe Gen. 3 x2 |
| 1 x eMMC : onboard 4 GB | |
| I/O Interface | |
| Ethernet |
6 x LAN : 1 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112R 1 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112C 1 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112 1 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112R) 1 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112C) 1 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112) |
| I/O Interface | 1 x External USB 3.2 Gen1x1 |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5~95% non-condensing, wet bulb: 27˚C |
| Certifications | |
| Safety & EMC | CE/FCC/BSMI (BSMI safety)/VCCI, LVD |
| OS Support | |
| OS Support | OpenWrt |
Ordering Information
| PUZZLE-M901-CN1-R10 | Desktop Network Appliance with Marvell CN9130 Processor ,6 x 2.5GbE on Board 4GB eMMC & 1x M.2 slot, RoHS. |
|---|
