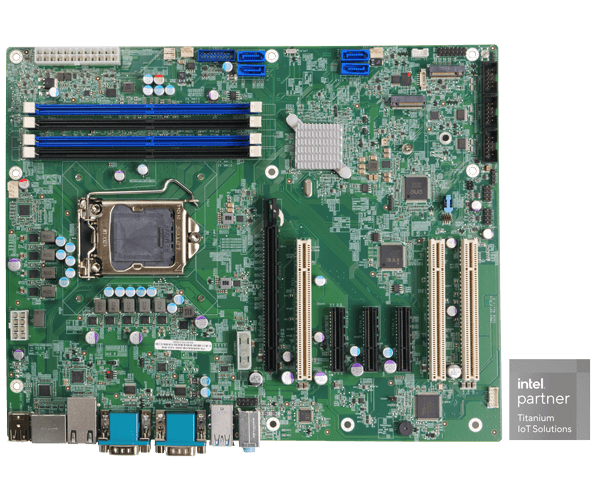

IMBA-Q470
» LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
» Dual-channel DDR4 2933MHz
» Support HDMI™, DP, VGA
» Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage
Scroll to features

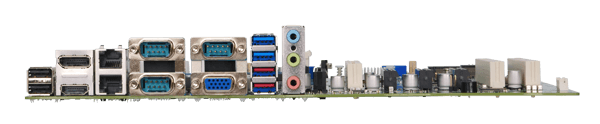

Hardware Overview
Enhanced CPU and Graphic Performance
Leading Connectivity
Ready for Windows 11
Hardware Overview
Enhanced CPU and Graphic Performance
Leading Connectivity
Ready for Windows 11
Built for High-performance AI
- 5 x USB 2.0 headers
- 1 x RS-232/422/485 port
2 x RS-232 ports - Front Panel
- 1 x M.2 2242/2280
M key slot (PCIe 3.0 x4) - 1 x M.2 2230 A key slot
(PCIe 3.0 x1 + USB 2.0) - 4 x SATA 6Gbps ports
(RAID 0/1/5/10) - Intel® Q470 /
Q470E - I2C & SMBus
- 4 x 288-pin 2933MHz
dual-channel unbuffered
DDR4 SDRAM DIMMs - LGA1200 socket for 10th/11th Gen Intel® Core™, Pentium® and Celeron® processors
- DIO
- 1 x PCIe x16 slot
3 x PCIe x4 slots
3 x PCI slots - Audio Jack
- 2 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 ports - VGA
- 2 x RS-232 ports
- RS-232/422/485 port
- 2 x Intel® I225V
2.5 Gb Ethernets - HDMI™
- DP
- 2 x USB ports
- 15 x USB 2.0 headers
- 21 x RS-232/422/485 port 2 x RS-232 ports
- 3Front Panel
- 41 x M.2 2242/2280 M key slot (PCIe 3.0 x4)
- 51 x M.2 2230 A key slot (PCIe 3.0 x1 + USB 2.0)
- 64 x SATA 6Gbps ports (RAID 0/1/5/10)
- 7Intel® Q470/Q470E
- 8I2C & SMBus
- 94 x 288-pin 2933MHz dual-channel unbuffered DDR4 SDRAM DIMMs
- 10LGA1200 socket for 10th/11th Gen Intel® Core™, Pentium® and Celeron® processors
- 11DIO
- 121 x PCIe x16 slot 3 x PCIe x4 slots 3 x PCI slots
- 13Audio jacks
- 142 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 ports - 15VGA
- 162 x RS-232 ports
- 17RS-232/422/485 port
- 182 x Intel® I225V
2.5G Ethernet - 19HDMI™
- 20DP
- 212 x USB 2.0 ports
Enhanced CPU and Graphics Performance
10th Gen/11th Gen Intel® Core Processors
The IEI IMBA-Q470 motherboard supports both 10th and 11th Gen Intel® Core processors, and the performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.
Because of the above features, the IMBA-Q470 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment and much more.
10th Gen Intel® Embedded CPU Support List
Up to 10 cores / 20 threads in LGA1200 socket
| Sockets | Brand | Process | Cores/Threads | CPU | Processor Base Frequency | Cache | TDP | Processor Graphics | Graphics Base Frequency | Memory Types | Chipset |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FCLGA1200 | CoreTM i9 | 14nm Comet Lake-S | 10/20 | I9-10900E | 2.8 GHz | 20MB | 65W | Intel® UHD Graphics 630 | 350 MHz | DDR4-2933 | Q470 |
| 10/20 | I9-10900TE | 1.8 GHz | 20MB | 35W | DDR4-2933 | ||||||
| CoreTM i7 | 8/16 | I7-10700E | 2.9 GHz | 16MB | 65W | DDR4-2933 | |||||
| 8/16 | I7-10700TE | 2.0 GHz | 16MB | 35W | DDR4-2933 | ||||||
| CoreTM i5 | 6/12 | I5-10500E | 3.1 GHz | 8MB | 65W | DDR4-2666 | |||||
| CoreTM i5 | 6/12 | I5-10500TE | 2.3 GHz | 8MB | 35W | DDR4-2666 | |||||
| CoreTM i3 | 4/8 | I3-10100E | 3.2 GHz | 9MB | 65W | DDR4-2666 | |||||
| CoreTM i3 | 4/8 | I3-10100TE | 2.3 GHz | 9MB | 35W | DDR4-2666 | |||||
| Pentium® | 2/4 | G6400E | 3.8 GHz | 4MB | 58W | DDR4-2400 | |||||
| Pentium® | 2/4 | G6400TE | 3.2 GHz | 4MB | 35W | DDR4-2400 | |||||
| Celeron® | 2/2 | G5900E | 3.2 GHz | 2MB | 58W | DDR4-2400 | |||||
| Celeron® | 2/2 | G5900TE | 3.0 GHz | 2MB | 35W | DDR4-2400 |
Stunning 4K Resolution and Triple Display
The IMBA-Q470 is equipped with Intel® UHD Graphics to display videos and images in stunning 4K resolutions. Among its three independent display ports (VGA+HDMI™+DP), the HDMI™ and DisplayPort can both support up to 4K high resolution. The enhanced visual quality responses the high precision demand of users.
Display Port 1.2
(4096x2304 @60Hz)
HDMI™ 1.4
(4096x2160 @30Hz)
VGA
(1920x1080 @60Hz)
Medical Diagnostics
AI Traffic Monitoring
Production Line Management
Leading Connectivity
Dual Intel® 2.5G Ethernet
The IMBA-Q470 is equipped with two Intel 2.5GbE controllers, which are ready for the latest-performance router. With two 2.5GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the IMBA-Q470 can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.
Lower CPU Workload
High TCP & UDP Throughput
Food Quality Control
Automated Optical Inspection
USB 3.2 Gen 2x1 10 Gb/s
Two USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission.
USB 3.2 Gen 2x1 10 Gb/s
Two USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission.
M.2 M Key
M.2 A Key
M.2 M Key for NVME SSD
The M.2 2242/80 M-key socket with PCI Express® 3.0 x4 bandwidth supports up to 32Gbps data-transfer speeds. It's the perfect choice for installing an operating system or application drive to provide fast data access.
M.2 A Key for Wi-Fi/Bluetooth
The M.2 2230 A-key socket supports PCIe/USB mode for creating a fast, cost-effective Wi-Fi 6 and Bluetooth 5.2 solution.
PCIeX16
PCI
PCIeX4
PCIeX4
PCIeX4
PCI
PCI
PCIe x16/4 & PCI Expansion Slots
There is an array of expansion interfaces on the IMBA-Q470 to meet different demands of each customer. It supports up to three PCI, three PCIe x4 , and one PCIe x16 slot, which can be used to install a variety of interface cards, including motion control cards, frame grabber cards, video capture cards, I/O cards, communication cards, AI accelerator cards and GPGPU cards.
GPGPU Card
Mustang-V100-MX8
AI Accelerator Card
Mustang-T100-T5
AI Accelerator Card
Ready for Windows 11
To comply with Windows 11, IEI BIOS enables Intel firmware-based TPM function, Intel® PTT. TPM can be leveraged to encrypt your storage drive. This protects your data, including your identity and operating system files. Encryption also protects your data in the case of physical theft.
|
Windows 11
V.S Windows 10
|
||
|---|---|---|
| Windows 11 IoT Enterprise | Windows 10 IoT Enterprise, Version 21H2 | |
| Servicing | Annual Release | SAC and LTSC |
| Kiosk Mode Multi App Assigned Access | Coming Soon | V |
| Unified Write Filter (UWF) Updates | V | V |
| Browser Support | Microsoft Edge included in box and follows Modern Lifecycle Policy | Microsoft Edge included in box and follows Modern Lifecycle Policy |
| Soft Real Time | V | V |
| WPA3 H2E Support | V | V |
| Wi-Fi 6E | V | Not Available |
| USB 4.0 | V | Not Available |
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | ATX Motherboard |
| System | |
| CPU | LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| Chipset | Intel® Q470/Q470E |
| Memory | Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB |
| Memory Max. | up to 128GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x3 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm |
| Net Weight | GW:1200g / NW:700g |
| Storage | |
| Storage | 4 x SATA |
| 1 x M.2(NGFF) : 1 x M.2 M Key (2240/2280) with PCIe x4 | |
| I/O Interface | |
| Display Output | 1 x VGA Up to 1920 x 1080 @60Hz |
| 1 x HDMI™ | |
| 1 x Display Port | |
| Ethernet |
2 x LAN : LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x Line in |
| 1 x Line out | |
| 1 x Mic | |
| 1 x Front Audio : 2x5 pin | |
| I/O Interface | 2 x External RS-232 |
| 1 x External RS-422/485 : RS-485 support AFC | |
| 2 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 1 x Internal RS-232/422/485 : 2x5 pin, P=2.54 ,RS-485 support AFC | |
| 2 x External USB 2.0 : Type-A | |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A) | |
| 5 x Internal USB 2.0 : 2x4 pin, P=2.54 | |
| 2 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0 | |
| 1 x DIO : 8-bit digital I/O (2x5 pin | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s（Type-A） | |
| Expansion | 1 x PCIe x16 |
| 3 x PCIe x4 | |
| 3 x PCI Slot | |
|
2 x M.2(NGFF) : 1 x M.2 M-key 2242/2280 (PCIe x4) 1 x M.2 A-key 2230 (PCIe x1 / USB 2.0) |
|
| Power | |
| Power Consumption |
3.3V@1.36A, 5V@14.16A, 12V@7.5A (Intel® Core™ i9-10900E CPU with four 32 GB 3200 MHz DDR4 memory) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -30°C – 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| IMBA-Q470-R11 | ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
Options
| CF-115XA-R10 | High-performance LGA1155/1156/1200 cooler kit, 1U chassis compatible, 73W |
|---|---|
| CF-1156C-R20 | LGA1155/1156/1200 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-R30 | LGA1155/1156/1200 cooler kit, 1U chassis compatible, 65W |
| CF-115XE-R10 | High-performance LGA1155/1156/1200 cooler kit, 95W |
| CB-USB02 | Dual port USB cable with bracket, 300mm, P=2.54 |
| 19800-010500-200-RS | USB 3.0/USB3.2 cable 450mm with bracket, P=2.0 |
| 19800-020100-100-RS | RS-232 cable, 230mm, P=2.54 |
| 32102-000100-200-RS | SATA power cable, MOLEX 8981-4M to SATA15P, 150MM |
