IMBA-H420

ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

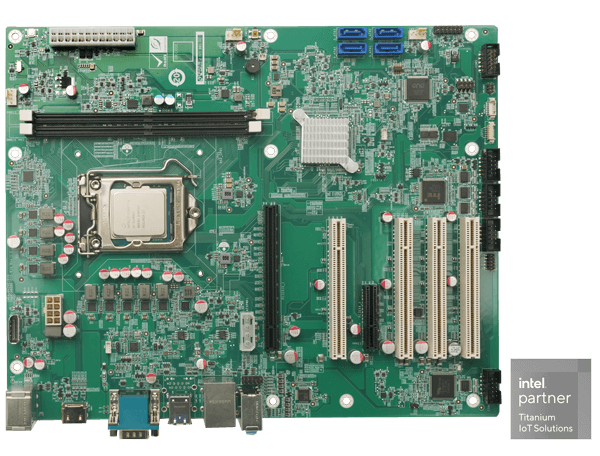

IMBA-H420 ATX Industrial Motherboard

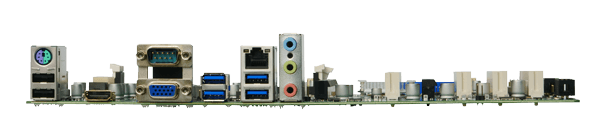

IMBA-H420 ATX Industrial Motherboard IO
IMBA-H420 ATX Industrial Motherboard side angle
  • IMBA-H420 ATX Industrial Motherboard
  • IMBA-H420 ATX Industrial Motherboard IO
  • IMBA-H420 ATX Industrial Motherboard side angle
1. LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
2. Dual-channel DDR4 2933MHz
3. Support HDMI™, DP, VGA display output
4. Support 1 x PCIe x16,1 x PCIe x4 and 4 x PCI expansion slots

10th/11th
Intel Core

2.5GbE LAN


DP++


The IMBA-H420 is an ATX motherboard powered by 10th/11th Gen Intel® Core™ processors. With the support of multiple expansion slots and feature rich interfaces, it offers a variety of functionalities and capabilities for the applications that require accelerated computing, blazing-fast transmission, seamless upgrades, and high reliability.

  • RS-232/422/485
  • 2 x USB 2.0
  • Front panel
  • System fan
  • 4 x SATA 6Gb/s
  • System fan
  • 2 x DDR4 DIMM
  • ATX power
  • CPU fan
  • 4 x RS-232
  • 3 x PCI slot
  • PCIe x4 slot
  • PCI slot
  • PCIe x16 slot
  • 12V power for PCIe slot
  • 3 x Audio jacks
  • 2.5GbE & 2 x USB 3.2 Gen 1
  • 2 x USB 3.2 Gen 1
  • RS-232 & VGA
  • 12V CPU power
  • HDMI™
  • Internal DP++
  • Keyboard/Mouse & 2 x USB 2.0
  • 1
    RS-232/422/485
  • 2
    2 x USB 2.0
  • 3
    Front panel
  • 4
    System fan
  • 5
    4 x SATA 6Gb/s
  • 6
    System fan
  • 7
    2 x DDR4 DIMM
  • 8
    ATX power
  • 9
    CPU fan
  • 10
    4 x RS-232
  • 11
    4 x PCI slot
  • 12
    PCIe x4 slot
  • 13
    PCIe x16 slot
  • 14
    12V power for PCIe slot
  • 15
    3 x Audio jacks
  • 16
    2.5GbE & 2 x USB 3.2 Gen 1
  • 17
    2 x USB 3.2 Gen 1
  • 18
    RS-232 & VGA
  • 19
    HDMI™
  • 20
    Keyboard/Mouse & 2 x USB 2.0
  • 21
    12V CPU power
  • 22
    Internal DP++

Leadership Performance

IEI’s IMBA-H420 motherboard supports both 10th and 11th Gen Intel® Core™ processors, which boosts up to 80% better performance than its precedent (Core i5 processor). The 10th Gen Intel® Core™ platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. The 10th Gen Intel® Core™ processors contain Intel® UHD Graphics 630 that offers 24 execution units and support outstanding 4K displays.

With the combination of new Intel Core processor technology and graphics architecture, the IMBA-H420 delivers superior computing power that sets it apart from other products available in the market.

10th Gen Intel® Embedded CPU Support List

Up to 10 cores / 20 threads in LGA1200 socket

Sockets Brand Process Cores/Threads CPU Processor Base Frequency Cache TDP Processor Graphics Graphics Base Frequency Memory Types Chipset
FCLGA1200 CoreTM i9 14nm Comet Lake-S 10/20 I9-10900E 2.8 GHz 20MB 65W Intel® UHD Graphics 630 350 MHz DDR4-2933 Q470/Q470E
10/20 I9-10900TE 1.8 GHz 20MB 35W DDR4-2933
CoreTM i7 8/16 I7-10700E 2.9 GHz 16MB 65W DDR4-2933
8/16 I7-10700TE 2.0 GHz 16MB 35W DDR4-2933
CoreTM i5 6/12 I5-10500E 3.1 GHz 8MB 65W DDR4-2666
CoreTM i5 6/12 I5-10500TE 2.3 GHz 8MB 35W DDR4-2666
CoreTM i3 4/8 I3-10100E 3.2 GHz 9MB 65W DDR4-2666
CoreTM i3 4/8 I3-10100TE 2.3 GHz 9MB 35W DDR4-2666
Pentium® 2/4 G6400E 3.8 GHz 4MB 58W DDR4-2400
Pentium® 2/4 G6400TE 3.2 GHz 4MB 35W DDR4-2400
Celeron® 2/2 G5900E 3.2 GHz 2MB 58W DDR4-2400
Celeron® 2/2 G5900TE 3.0 GHz 2MB 35W DDR4-2400

Pixel-accurate 4K Resolution

The IMBA-H420 is equipped with three display output connectors, including HDMI™, internal DP++ and VGA. The HDMI™ and DP++ interfaces support pixel-accurate 4K resolutions for high-end applications while the VGA is reserved for legacy devices.

Internal DP++

(up to 4096 x 2304 @ 60 Hz)

HDMI™

(up to 4096 x 2304 @ 30 Hz)

VGA

(up to 1920 x 1200 @ 60Hz)

DP++ Supported

The IMBA-H420 provides various display outputs for customers to connect to a device with the same native interface to avoid quality loss. However, when conversion is needed, the equipped DisplayPort Dual-Mode (DP++) connector allows the use of a simple, inexpensive passive adapter to convert to HDMI™. It is completely plug and play, handles both video and audio, and does not need any driver to work.

Passive Adapter

Plug-and Play
Simple & Inexpensive

Rich Expansion Options

Bringing together PCIe 3.0 technology and legacy PCI standard creates endless possibilities in developing a wide range of solutions. A graphics card or AI card can be added via the PCIe x16 for sophisticated applications, like medical diagnosis, machine vision, robotics or AI-based projects.

Four PCI slots are also provided to maintain backward compatibility. Legacy systems in machine controllers, test rigs, real-time simulations or many other PC-based applications can be upgraded easily without a full rebuild.

4 x PCI

PCIe x4

PCIe x16

PCIe power

Medical Diagnosis

Machine Vision

Robotics

Tap into the Power of AI

In recent years, Edge AI has became a virtual role. We are now at a time where AI is revolutionizing the world. The IMBA-H420 can deliver excellent computing capabilities to accelerate AI adoption in food/fruit inspection, factory automation and test equipment. By adding IEI's Mustang accelerator card, it could be used for deep learning inference computing to help you get faster, deeper insights for your customers and your business.

2.5GBASE-T Ethernet Technology

The 2.5GBASE-T speed is a contemporary solution to an old problem due to the increases in throughput. Enterprises that choose the IMBA-H420 as their solutions for the implementation of 2.5GBASE-T technology will benefit from a simple change that achieves a noticeable gain in bandwidth, while at the same time realizing cost savings from reuse of existing Cat5e cables.

Energy Efficiency

As shown in the following table, the IMBA-H420 is compliant with ErP, which requires a system should not consume more than 0.5 W during off state or standby. The IMBA-H420 consumes nearly no energy in sleep mode or shutdown, making it a green and eco-friendly product that saves cost and electricity.

Voltage 3.3 V 5 V 5 V Standby 12 V
EuP Mode Enabled Current 0.84 A 8.12 A 0A 3.77 A
Power Consumption 2.77 W 40.6 W 0W 45.24 W
EuP Mode Disabled Current 0.81 A 8.21 A 0.02A 3.84 A
Power Consumption 2.67 W 41.5 W 0.1W 46.08 W

Touch-enabled BIOS

The BIOS menu in the latest IEI products is re-designed to a touch-enabled user interface to eliminate excessive steps and unnecessary keyboard connection. It allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. The new design features the followings:

Graphical interface

BIOS menus is transformed from text-based to graphical user interface, making it intuitive and easy to navigate.

Shortcut to boot device setup

The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.

One-Stop Service

IEI provides a one-stop source of products for the IMBA-H420 motherboard, ranging from industrial chassis, accelerator cards and CPU fans, to help you with your integration needs.

Industrial Chassis
Industrial Chassis ECA-100Desktop/Wall-mount Chassis ECA-300Mini-Tower Chassis
Dimensions (mm) 365 x 291 x 162 210 x 320 x 480.5
I/O Ports 2 x USB
6 x COM
6 x USB
2 x COM
Expansion Slots 7 7
Storage
  • 1 x 3.5"/2.5" HDD/SSD
  • 1 x Additional 3.5"/2.5" HDD/SSD by the optional ECA-HDDKIT-R10
  • 2 x 5.25"
  • 1 x 3.5"/2.5" HDD/SSD
Fan 1 1
Accelerator Card
Accelerator Card Mustang-V100-MX8 Mustang-T100-T5
Main Chip Intel® Movidius™ Myriad™ X Five Google Coral Edge TPU Accelerator Modules
Operating Systems Ubuntu* 16.04.3 (LTS), 64-bit CentOS 65-bit Linux: 64-bit version of Debian 10 or Ubuntu 16.04 (or newer) Windows: 64-bit version of Windows 10
Physical PCIe Interface PCI Express 2.0 x4 PCI Express 2.0 x4
Fan Active Active
Dimensions Standard half-height, half-length, single-width
CPU Cooling Kits
CF-115XA
CF-115XA

1U chassis compatible,73W

CF-1156C
CF-1156C

1U chassis compatible,45W

CF-1156D
CF-1156D

1U chassis compatible,65W

CF-115XE
CF-115XE

High performance,95W


Hardware Spec.

Form Factor
Form Factor ATX Motherboard
System
CPU LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset Intel® H420E
Memory Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight 700g
Storage
Storage 4 x SATA : 6Gb/s (no RAID)
I/O Interface
Display Output 1 x VGA : up to 1920 x 1200@60Hz
1 x HDMI™ : up to 4096 x 2160@30Hz
1 x DP++ : up to 4096 x 2304@60Hz
Ethernet 1 x LAN :
LAN1: Intel® I225V/I226V 2.5GbE controller
Audio 1 x Line in
1 x Line out
1 x Mic
1 x Front Audio : 2x5 pin
1 x HD Audio : Realtek ALC888S HD codec
I/O Interface 1 x External RS-232
External RS-232/422/485 : RS-485 support AFC
4 x Internal RS-232 : 2x5 pin, P=2.54
1 x Internal RS-232/422/485 : 2x5 pin, P=2.54
2 x External USB 2.0 : Type-A
4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
2 x Internal USB 2.0 : 2x4 pin, P=2.54
1 x PS/2
1 x DIO : 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16
1 x PCIe x4
4 x PCI Slot
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 3.3V@0.84A, 5V@8.12A, 12V@3.77A, 5VSB@0A
(Intel® Core™ i5-10500TE CPU with two 32 GB 2933 MHz DDR4 memory, EuP mode enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-H420-R11 ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple independent displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMBA-H420 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
