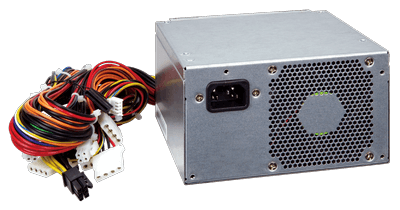

300 W PS/2 ATX Power Supply with ErP
Hardware Spec.
| General | |
|---|---|
| Dimensions | 140 x 150 x 86 |
| Efficiency | 87% |
| MTBF | 100000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector |
1 x 20+4-PIN ATX, 2 x 4-pin 12V CPU, 7 x HDD/CDROM, 1 x Graphics card power, 1 x FDD, 2 x SATA |
| Storage temperature | -20°C ~ 80°C |
| Watt | 300 |
| Input | |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 4A (RMS)@115VAC, 2A (RMS)@230VAC |
| Inrush Current | 80A max. for 115VAC, 160A max. for 230VAC |
| Voltage | 90~264 VAC Full Range |
| Output | |
| Over Voltage Protection |
+3.3V: 3.7V-4.3V +5V: 5.74V-7.0V +12V1 and +12V2: 13.4V-15.6V |
| Short Circuit Protection | +3.3V, +5V, +12V or -12V shutdown and latch off |
| Voltage | +3.3V/19A,+5V/16A,+12V1/17A,+12V2/17A,-12V/0.5A,+5Vsb/3A,-5V/0.1A |
Ordering Information
| 63010-010300-020-RS | PS/2 Power;FSP;FSP300-70AGGBM;9PA300FJ08;Active PFC;Vin:90~264VAC;300W;meet 80plus(GOLD);Vout:ATX;ATX;CCL;RoHS |
|---|
