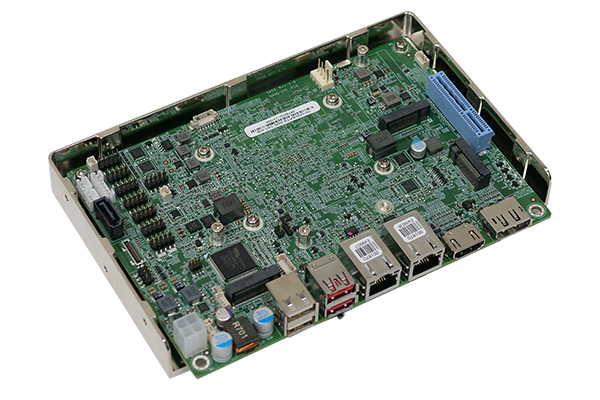

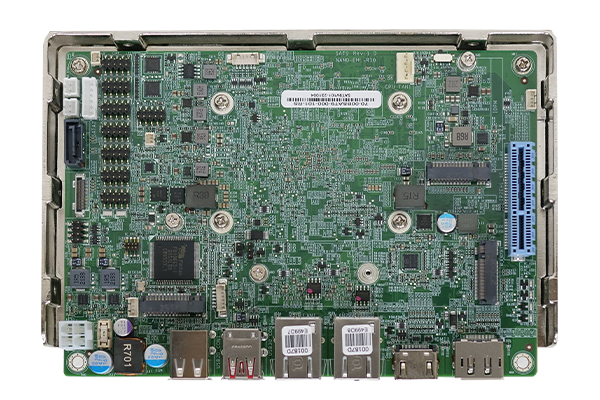

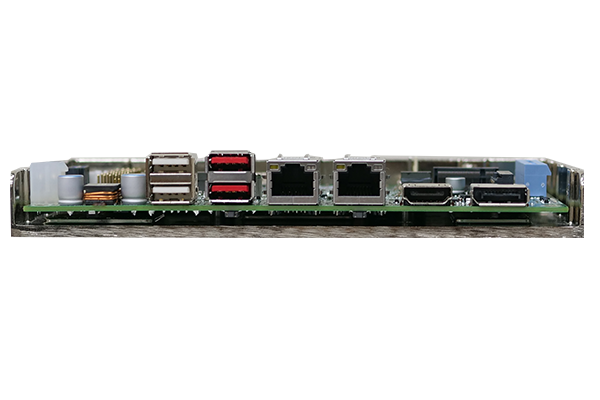

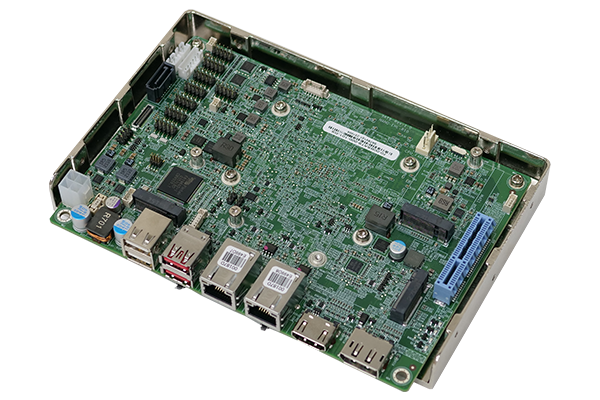

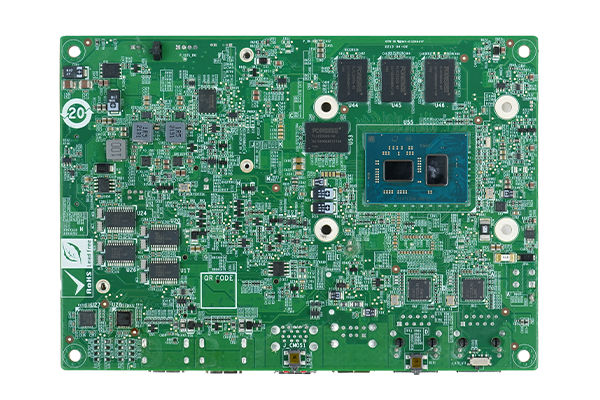

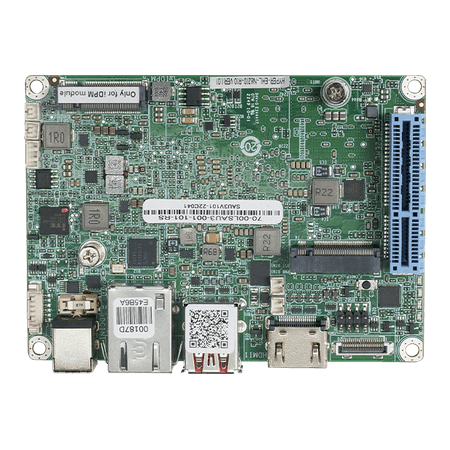

NANO-EHL
» Support Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
» Support dual Intel® I225V/I226V 2.5GbE Ethernet controller
» Support triple independent displays via DP, HDMI™ and iDPM
» Support one PCIe Gen3 x4, one M.2 A key and one M.2 B Key expansions
» Support two USB 3.2 Gen2, four USB 2.0, four RS-232, two RS-232/422/485
Presenting the NANO-EHL, a 4" EPIC SBC that offers quad-core performance, advanced 2.5GbE network connectivity, and a PCIex4 slot, all while maintaining low power consumption and featuring a refined thermal solution for optimal efficiency. Unleash new possibilities with the NANO-EHL's PCI Express Gen3 x4 expansion slot, empowering you to harness the potential of PCIe interface cards and expand your AIoT applications. This motherboard also supports NVMe SSDs, which can significantly enhance boot times and response speeds. Perfect for IoT edge applications like mobile service robots, robotics control, kiosks, Panel PCs, and electric vehicle charging stations. With its compact form factor and flexible PCIe x4 expansion slot, this SBC offers the perfect balance between performance and flexibility.
8GB LPDDR4x
Memory on-board
PCIe x4 (x2 signal)
Triple Display
IHCC Termal Design
Dual 2.5Gb LAN
M.2 A Key
M.2 B Key
Specifications
Performance
Connectivity
Quad-Core Intel® Celeron® Processor J6412
Experience an Astonishing 3.5x Performance Boost Compared to the Previous Generation - NANO-AL! Double the Cores and Threads for Unmatched Power! IEI NANO-EHL is a motherboard powered by Intel® Celeron® J6412 on-board SoC, supporting up to 2.6GHz, quad-core, 1.5M cache and TDP 10W. The processor of IEI NANO-EHL builds on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.
8GB LPDDR4X On-Board Memory
The NANO-EHL is equipped with robust 8GB LPDDR4x on-board memory, widely utilized for applications in high-vibration and shock-prone environments. With onboard memory, it offers flexible space utilization, enhanced reliability, and mitigates issues related to memory poor contact, making it particularly well-suited for industrial applications.
PCIe x4 Expansion Allows
Extensive I/O and Function Expansion
Experience the power of the NANO-EHL, a compact 4" single board computer with a high-speed PCIe x4 (x2 signal) slot. Easily integrate PoE, video capture, or I/O cards with a compatible riser card and unlock a world of expanded functionality. The NANO-EHL delivers exceptional performance and reliability for a wide range of applications.
Enhanced Stability and Easy Installation
Moreover, both of the riser cards can be firmly secured to enhance stability by using the L-shaped bracket, in which screw holes are perfectly matched with those on the side of the heat spreader to make it simple and easy to install.
Triple Independent Displays with Up to 4K Resolution
Featuring Intel® UHD Graphics with a maximum of 16 execution units (EUs), this SBC offers superior graphics capabilities, enabling smooth and immersive visual experiences. Whether you are running graphics-intensive applications or demanding multimedia content, this SBC delivers outstanding performance. Furthermore, the NANO-EHL is capable of supporting a maximum resolution of 4kp60 across three simultaneous displays through HDMI 1.4 (up to 4096 x 2160@30Hz), DP 1.4 (up to 4096 x 2160@60Hz), and the optional iDPM module.
Well-Design Thermal Solution
IEI has developed a highly efficient
thermal solution for the 4" SBC - the IEI
Heat Conduction Casing (IHCC). The IHCC
effectively enhances heat transfer
performance by targeting the primary heat
source, thus eliminating the need for
designing a separate heat spreader.
The IHCC consists of a casing and a heat
conduction block that securely fits over the
key components where the major heat is
generated, ensuring optimal heat transfer.
Diverse Mounting Options
With its well-design thurmal casing, NANO-EHL provides complete 9 holes on three sides. It can be installed on a control cabinet's rear panel, door, or onto a DIN rail. And it is easy to install additional thermal module for operating under high ambient temperatures.
Embedded System
Electrical Cabinet
Embedded System
Electrical Cabinet
Dual Low-Latency 2.5G LAN Powered by Intel
2.5 GbE supports various connection speeds between 100 Mbps and 2.5 Gbps on Cat6 and Cat 5e cables, which means user can experience the full capability of high-performance network solutions without significant costs for upgrading cables.
2.5G
LAN
M.2 Expansion for WiFi and NVMe Storage
M.2 2230 A Key for Wi-Fi/Bluetooth
The M.2 2230 A key slot carrying with PCIe GEN3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.
M.2 2230 A Key
M.2 2242/2280 B Key Slot for NVMe Storage
With the M.2 2242/2280 B Key slot, you can easily install NVMe storage devices, allowing for fast data access, improved performance, and efficient data management.
M.2 2242/2280 B Key
Dimensions
NANO-EHL
SBC with Outwards-facing
Riser Card (NWR-R2S-N)
Riser Card (NWR-R2S-N)
SBC with Inwards-facing
nan Riser Card (NWR-L2S-N)
nan Riser Card (NWR-L2S-N)
Optional Accessories
Converter Board
Riser Card
Cable
NWR-R2S-N
• PCIe x2 to two PCIe x1 riser card for NANO/WAFER on the right side
NWR-L2S-N
• PCIe x2 to two PCIe x1 riser card for NANO/WAFER on the left side
32205-002700-200-RS
• RS-232 cable
• Dimension: (L) 200mm
• P=2.0 (the PIN distance of the PIN Header)
People Also Viewed
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | EPIC SBC |
| System | |
| CPU |
Onboard Intel® Atom™ x6000 series Celeron® processor (Elkhart Lake platform) Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) |
| Memory | LPDDR4x-3200Gbps 8GB, up to 16GB |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 165mm x 115mm |
| Net Weight | 350g |
| Storage | |
| Storage |
2 x SATA - 1 x SATA 6Gb/s with 5V SATA power connector 1 x iSATA |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2160 @30Hz |
| 1 x DP++ : up to 4096 x 2160 @60Hz | |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet |
2 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO(2 x 5 pin, support IEI AC-KIT-888HD Module) |
| I/O Interface | 4 x Internal RS-232 : 2x5 pin, P=2.0 |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 2 x External USB 2.0 : Type A | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s(Type A) | |
| Expansion | 1 x PCIe x4 : PCIe Gen3 x4 (x2 signal) |
|
2 x M.2(NGFF) - 1 x M.2 B Key (2242/2280) PCIe Gen3 x2&USB2.0 1 x M.2 A Key (2230) PCIe Gen3 x1/USB2.0 |
|
| Power | |
| Power Consumption |
12V@2.75A (Intel® Celeron® J6412 CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode disabled) |
| Power Supply |
1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Environment | |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| NANO-EHL-J6412C-R10 | EPIC SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC, with 8GB LPDDR4x memory on board default, with DP, HDMI™,iDPM,M.2 A key,M.2 M key, M.2 B key, USB 3.1, SATA 6Gb/s, COM, Iaudio,PCIe x2 for riser card and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
