AFL3-W22C-ADLP

21.5” Fanless Panel PC with Intel® Alder Lake P

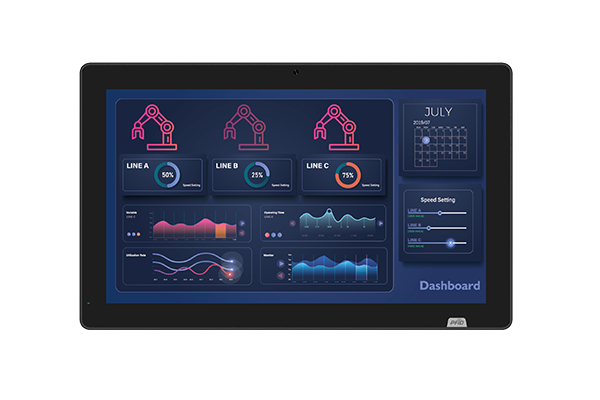

AFL3-W15C-ADLP Front

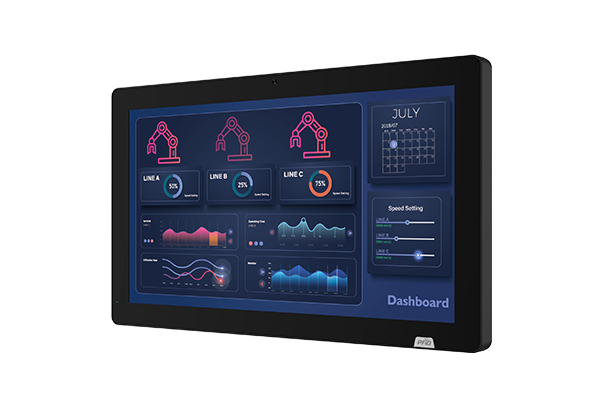

AFL3-W15C-ADLP Right

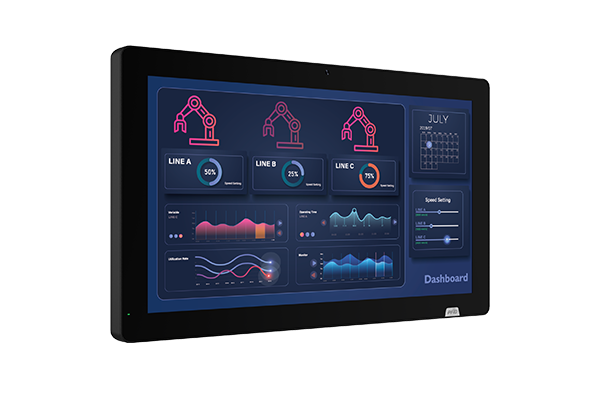

AFL3-W15C-ADLP Left

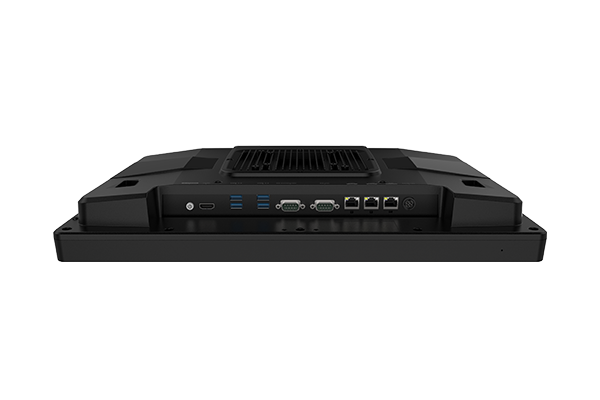

AFL3-W15C-ADLP IO
AFL3-W15C-ADLP Back
  • AFL3-W15C-ADLP Front
  • AFL3-W15C-ADLP Right
  • AFL3-W15C-ADLP Left
  • AFL3-W15C-ADLP IO
  • AFL3-W15C-ADLP Back
» 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors
» Full HD capacitive touch screen
» Anti-AG and Anti-UV PCAP
» one E-Window that supports additional connector interface.
» Support WiFi 6E and Bluetooth5.2

The AFL3-ADLP, a remarkable addition to IEI's AFOLUX series, is a fanless panel PC that boasts an appealing design tailored for the light industrial markets. Equipped with a powerful 12th Gen Intel Core processor, this panel PC ensures seamless performance even in demanding applications. With 8GB DDR4 memory, expandable up to 32GB, it offers ample space for multitasking and data storage. The AFL3-ADLP also features an optimized PCAP touchscreen for enhanced user experience and a wide range of I/O ports for connectivity convenience. Its inclusion of Wi-Fi 6E and Bluetooth 5.2 guarantees fast and reliable wireless communication, while the dual 2.5G LAN enables efficient data transfer. Additionally, the AFL3-ADLP series supports IEI IRIS2 modules, providing an IPMI 2.0 solution for efficient remote management that ensures optimal performance and minimizing downtime.

12th Gen. Intel Core Processor

10-point AG PCAP Touch with Anti-UV

Wi-Fi 6E &
Bluetooth 5.2

Dual 2.5GbE

IPMI Support

Dual Storage

Front Panel IP64

Fanless

-10°C~50°C

Audiovisuals

Unleashing Extraordinary Performance with

the 12th Gen. Intel Core Processor

The AFL3-ADLP series incorporates the cutting-edge 12th Gen Intel® Core™ i7/i5/i3 processor, code name Alder Lake-P, to provide unmatched edge computing performance. This series excels in real-time IoT workload consolidation and AI inferencing. With a maximum of 12 cores, this powerful processor ensures exceptional multitasking capabilities and lightning-fast performance, reaching a burst frequency of 4.7GHz. Additionally, the AFL3-ADLP series boasts Intel® Iris® Xe graphics with up to 96 graphics execution units (EUs), enhancing graphics performance and enabling the panel PC to deliver high-quality visuals, ideal for imaging applications.

IoT Deployment Made Easy with Wireless Network Capability

The Internet of Things (IoT) encompasses various applications that have different connectivity requirements, necessitating both high bandwidth and low power and latency capabilities. The expansion of Wi-Fi into the 6 GHz band is crucial for supporting IoT devices in industrial settings worldwide, providing the necessary additional spectrum for Wi-Fi usage. The AFL3-ADLP industrial panel PC is equipped with an Intel® AX210 wireless module, featuring the advanced Wi-Fi 6E and Bluetooth 5.2 technologies, allowing businesses to work smarter, optimize processes, and unlock new possibilities for growth and innovation.

Intel Wi-Fi 6E Technology

Maximized 6GHz 2400Mbps speed, high reliability

MU-MIMO

160MHz channels, ultra-low latency

Bluetooth 5.2

Improved speed and coverage

Support IPMI 2.0 for Out-of-band Management

The panel PC offers a range of advanced features, including the ability to provide IPMI 2.0 based remote management through the installation of an IEI IRIS2-2600 module. This allows for efficient out-of-band management, giving administrators easy access to the panel PC via the dedicated IPMI RJ45 port. With this functionality, administrators can perform tasks such as hardware health monitoring, secure remote KVM or virtual media access, and even remotely control power settings.

More about IRIS2 Modules

2.5GbE Connectivity - A Cost-Effective Solution for High-Bandwidth Workloads

With its two RJ45 LAN ports, the industrial panel PC offers 2.5GbE connectivity, allowing for a significant improvement in network performance. This enhanced speed is particularly beneficial for large-scale workloads that require high bandwidth. It allows users to achieve ultra-fast speeds without the need for cable changes, making it a cost-effective and efficient solution. With its backward compatibility and numerous benefits, 2.5G Ethernet is poised to become the go-to choice for businesses seeking to upgrade their network infrastructure and achieve lightning-fast internet speed.

PCAP Touch Screen with High Sensitivity, Visibility and Durability

With glass-glass PCAP touch technology and industrial-grade controllers, IEI's rugged touchscreen offers high sensitivity, visibility and durability for industrial applications. IEI AFOLUX panel PCs with this rugged touchscreen can work with gloves in harsh environments, such as food processing, chemical and beverage industries.

High Sensitivity
High Visibility
High Durability

The 10-point touch enables the screen to detect and respond to multiple and complex touch inputs, even when the user is wearing gloves or has wet hands.

Our PCAP touchscreen has an anti-glare and anti-UV coating that prevents reflection and scratches, making it suitable for outdoor and bright light environments. It also has a high transmission rate of 87%, which ensures clear and bright images and text.

The 7H scratch-resistant and UV-resistance strong glass protect the screen from physical and environmental damage.

  • Blocks UV wavelengths less than ≈340nm
  • Meets ASTM G154 performance criteria Cycle 1

Reliable Quality, Stable in Harsh Environment

The AFL3-ADLP industrial panel PC is designed to be fanless and IP64-rated, which means it has no moving parts and its front panel is resistant to dust and water splashing. This makes it ideal for harsh and challenging environments, where noise, heat, and moisture can affect the performance and lifespan of conventional devices. The fanless and IP64-rated panel PC offers a silent, reliable, and durable solution for industrial applications.

Fanless

Quiet operation, free from dust accumulation, and no moving parts that can wear out

IP64 Front Panel

Withstands harsh environment, and prevents damage from dust or water ingress

0~50°C Operating Temp.

High and low temperature resistance

Dual M.2 NVMe and 2.5" SATA 6Gb/s – The Ultimate Storage Combination for Speed and Capacity

The AFL3-ADLP series provides flexible storage solutions to cater to diverse data storage requirements. It offers compatibility with both M.2 NVMe SSD and 2.5-inch SSD, enabling users to select the option that aligns with their specific needs. For real-time data processing and analysis in applications such as machine learning, surveillance, and industrial automation, the NVMe SSD slot emerges as an optimal choice, boasting a PCIe Gen4 x4 interface and impressive 64Gbps bandwidth that delivers exceptional performance capabilities.

Enhanced Flexibility and Convenience with E-Window Technology

The innovative E-Window technology offers a flexible solution for integrating various functions into the panel PC by utilizing modular components. With its standardized M.2 modules and I/O plates, system integrators can effortlessly customize and add new features without incurring significant costs. Furthermore, the easy maintenance and ability to replace modules with different ones make this technology a convenient choice for enhancing device functionality while minimizing downtime.

Advanced Audiovisual Features for Better Collaboration and Productivity

The AFL3-ADLP series offers a range of impressive audiovisual features that make it a versatile and efficient tool for various industries. The audiovisual features of the AFL3-ADLP series allow for remote monitoring and control of industrial processes, offering real-time insights that improve efficiency and safety. Moreover, its ability to provide interactive and multimedia content makes it suitable for applications in factory automation, retail, digital signage, transportation, and surveillance. With all these features integrated into one compact and rugged system, the industrial panel PC not only saves space but also reduces costs and maintenance.

Customize Your Installation with Various Mounting Options

The AFL3-ADLP series features a 75x75 or 100x100 VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs.

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Shortcut to boot device setup

The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.

I/O Interfaces

  • 1
    Power Button
  • 2
    RS-232/422/485 (COM1)
  • 3
    RS-232 (COM2)
  • 4
    2.5GbE LAN1
  • 5
    2.5GbE LAN2
  • 6
    IPMI
  • 7
    HDMI™
  • 8
    4 x USB 3.2 Gen 1
  • 9
    Reset Button
  • 10
    Clear CMOS Button
  • 11
    AT/ATX Switch
  • 12
    12V DC Input
  • 13
    Digital Microphone

Dimensions

Optional Accessories

Mounting Kit

Stand

Expansion Module

{{ item.title }}

{{ item.desc }}

  • {{ listItem }}
{{ item.title }}

{{ item.desc }}

  • {{ listItem }}
{{ item.title }}

{{ item.desc }}

  • {{ listItem }}

Related Products

{{ item.title }}

{{ item.description }}

Specifications

Hardware Spec.

System
CPU 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
Memory Ext. Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM
(8G Pre-installed) (max. 64GB)
Storage 1 x 2.5” SATA HDD bay
Communication
Wireless IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
I/O Interface
Ethernet LAN1: Intel® I226 LM(support Intel AMT)
LAN2: Intel® I226V
Audio AMP 3W + 3W (internal speaker)
Expansion 2 x M.2 2280 M-key (PCle Gen 4 x4)
1 x M.2 B KEY (PCIe x1 or SATA) for IPMI
1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)
Audio Codec ALC888S
Power
Power Supply 12V DC
Environment
Operating Temperature 0°C ~ 50°C (50°C @90RH, ambient with air flow)
Safety & EMC CE, FCC (Class A) , UKCA
Humidity 10% ~ 90% (non-condensing)
Storage Temperature -20ºC ~ 60ºC
IP Level IP 64 compliant front panel
Physical Characteristics
Color Black
Mounting Panel, Wall, Stand and Arm VESA 75 /100mm
Construction Front Panel PC + ABS Plastic
LCD
Size 21.5”
Resolution 1920 x 1080 (16:9)
Brightness (cd/m2) 350 cd/m²
Contrast Ratio 1000 : 1
Viewing Angle (H-V) 178°/178°
Backlight MTBF 50000 hours
Touch
Touch Screen PCAP with USB interface (anti-UV/AR coating)
Touch Controller EXC3160
I/O Interface
I/O Interface 1 x RS-232 (by DB9)
1 x RS-232/422/485 (by DB9)
4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))
1 x HDMI™ (2.0 (up to 3840*2160 @60Hz))
2 x LAN (Intel® I226V 2.5GbE controller)
1 x Reset Button
1 x AT/ATX switch
1 x Clear CMOS Button

Ordering Information

AFL3-W22C-ADLP-i7/8G-R11 Wide 21.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i7-1260P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11
AFL3-W22C-ADLP-i5/8G-R11 Wide 21.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i5-1240P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11
AFL3-W22C-ADLP-i3/8G-R11 Wide 21.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11

Package Contents

Package Content

  • 1 x AFL3-W22C-ADLP

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x QIG
