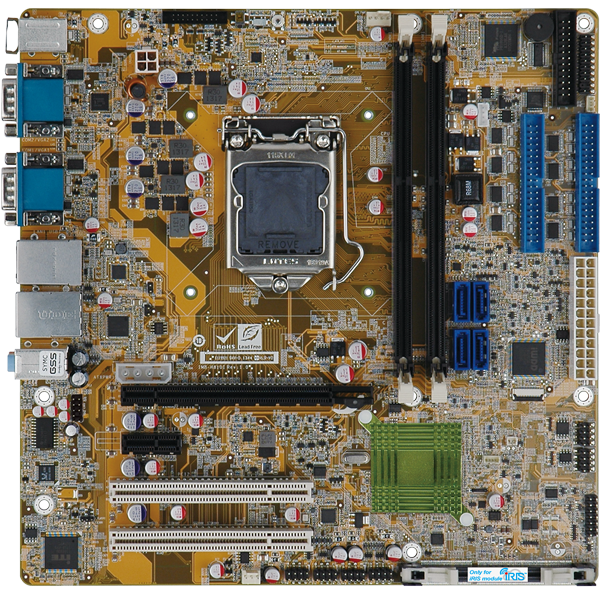

IMB-H810
» LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR3 1333/1600 MHz support up to 16 GB
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» Supports legacy PCI 32-bit 33/66 MHz
» Ten COM ports, USB 3.0 and SATA supported
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support IPMI 2.0 via iRIS-2400 module
» IEI jumper-less function
Hardware Spec.
| System | |
|---|---|
| CPU | LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| Chipset | Intel® H81 |
| Memory | Two 240-pin 1600/1333 MHz dualchannel DDR3 & DDR3L SDRAM unbuffered DIMMs |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244 X 244 |
| Net Weight | 680g |
| Storage | |
| Storage | 4 x SATA :2 x 3Gb/s, 2 x 6Gb/s |
| I/O Interface | |
| Display Output | 2 x VGA :up to 1920x1200@60Hz |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I217LM with Intel® AMT9.0 support LAN2: Intel® I210-AT PCIe controller with NCSI |
| Audio |
Description: Realtek ALC662 HD Audio codec supports 5.1-channel |
| 1 x Line in :on rear IO | |
| 1 x Line out :on rear IO | |
| 1 x Mic :on rear IO | |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 2 x External RS-232 |
| 8 x Internal RS-232 :2x20 pin, p=2.54 | |
| 1 x Internal RS-422/485 :1x4 pin, p=2.0 | |
| 2 x External USB 2.0 | |
| 2 x External USB 3.2 Gen1x1 | |
| 1 x PS/2 | |
| 1 x LPT :2x13 pin, p=2.54 | |
| Expansion | 1 x PCIe x16 :Gen 3 |
| 1 x PCIe x1 | |
| 2 x PCI Slot | |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
3.3V@0.64A, 5V@4.20A, 12V@0.14A, Vcore_12V@3.88A, 5VSB@0.20A (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory) |
| Power Supply | Support ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
