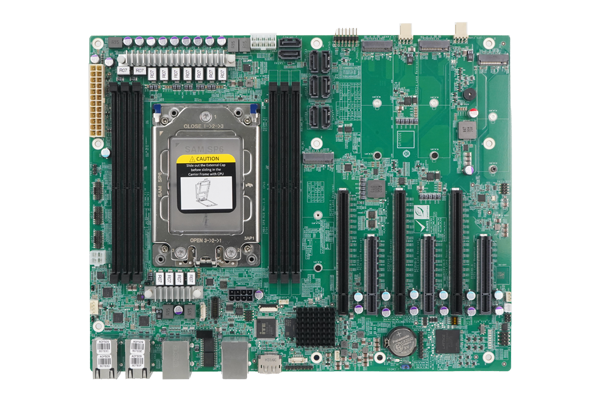

IMBAX-SP6
» ATX motherboard supports AMD SP6 Siena 8-64 cores
» 6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB total
» Support 4 x 2.5GbE LAN
» Support 1 x PCIe Gen5 x16 slot, 2 x PCIe Gen4 x16 slot, 3 x PCIe Gen4 x8 slot
» 4 x M.2 M key expansion
Unleash the Future of Edge AI
with Server-Grade ATX Motherboard – IMBAX-SP6
Introducing the IMBAX-SP6, our state-of-the-art ATX motherboard designed to support server-grade AMD EPYC™ 8004 Series Processors with up to 64 cores. This motherboard delivers exceptional performance and energy efficiency, making it perfect for intensive Edge AI workloads. With a massive DDR5-4800 memory capacity of up to 576GB, future-proof PCIe Gen5 and Gen4 expansion slots, and M.2 M key slots for extensive storage support, the IMBAX-SP6 offers unparalleled scalability and power. Crafted to meet the rigorous demands of Edge AI applications, the IMBAX-SP6 is your ideal choice for advanced computing needs.
AMD EPYC™ 8004 Series CPUs
DDR5 Support up to 576GB
PCIe Gen5
Exapnsion
4 x 2.5GbE
LAN Port
Power
Efficiency
Exceptional Processing Power & Excellent Energy Efficiency
Zen 4c Architecture
Providing higher core density and a larger core count per processor, this architecture achieves better performance per watt than Zen 4, with lower power consumption. It is particularly effective for energy-efficient parallel processing in edge computing, where power availability is often limited.
Server-Grade CPU for Edge AI
With support for up to 64 CPU cores, the IMBAX-SP6 is optimized for handling a wide spectrum of AI applications—from basic inference tasks to complex deep learning models—ensuring that your edge AI deployments run with maximum efficiency and reliability.
TDP Range of 70W to 225W
Suitable for a wide range of industrial applications, from energy-efficient tasks to robust multitasking capabilities, making it a versatile solution for various operational needs.
High-Capacity Memory, Enhanced System Stability
Our ATX motherboard is equipped with six 96GB DDR5-4800 RDIMM slots, offering a massive memory capacity of up to 576GB. This enables real-time processing and analysis of large datasets, crucial for complex AI models. The inclusion of ECC memory ensures data integrity and system stability by preventing data corruption, which is essential for maintaining accuracy in AI workloads.
Higher
Capacity
ECC
Support
Increased
Bandwidth
Improved Power
Efficiency
Future-proof Expansion Options
The motherboard features a comprehensive range of expansion slots, including 1 x PCIe Gen5 x16, 2 x PCIe Gen4 x16, and 3 x PCIe Gen4 x8 slots, along with 4 x M.2 M key expansion slots. This versatility allows you to customize and upgrade your system with the latest high-performance components and peripherals.
Future-Ready PCIe Gen5 x16 Slot
PCIe Gen5 delivers double the bandwidth of PCIe Gen4, offering up to 32 GT/s (gigatransfers per second) per lane. This substantial increase in bandwidth is essential for data-intensive AI workloads, enabling faster data transfer and minimizing bottlenecks. It’s the perfect choice for AI accelerator cards and high-end GPUs.
PCIe Gen4 for Robust Expansion
PCIe Gen4 slots provide additional pathways for connecting high-speed peripherals such as NICs, GPUs, and accelerator cards, enhancing the performance of AI workloads. This is especially beneficial for applications requiring simultaneous processing of multiple data streams or the training of complex models.
Storage Support
The IMBAX-SP6's 4 x M.2 M key slots provide extensive connectivity for SSDs, boosting system responsiveness and speed for modern industrial applications.
Advanced Display and Networking Capabilities
2.5GbE LAN Ports
The four 2.5GbE LAN ports enable simultaneous connections to multiple networks and devices, offering up to 10Gbps combined bandwidth for high data transfer and AI workloads. This setup is ideal for IIoT applications, providing network redundancy and ensuring reliable connectivity even if one connection fails.
High-Resolution DisplayPort
The integrated DP port supports 1920*1080 resolution, providing crystal-clear visuals for monitoring and managing your AI models.
Our Comprehensive AMD Solutions
|
|
|
|---|---|---|
| SP6 Series | AM5 Series | |
| Form Factors | ATX | ATX / microATX / mini-ITX |
| CPU | AMD EPYC™ 8004 Series | AMD Ryzen™ 7000 & 8000G |
| Core/Threads | Up to 64C/128T | Up to 16C/32T |
| Memory | 6 channels DDR5-4800 | 4 channels DDR5-5200 |
| Integrated GPU | N/A | Y |
| Expansion | PCIe Gen5 & PCIe Gen4 | PCIe Gen4 |
| Application |
|
|
Remote Access & Control
The on-board AST2600 controller on the IMBAX-AP6 provides out-of-band remote management, allowing administrators to monitor and troubleshoot systems from anywhere, even when powered off. This is vital for edge computing, where physical access is limited, ensuring continuous monitoring and enhanced system reliability in mission-critical environments.
Applications
The IMBAX-SP6 motherboard, with its support for AMD EPYC™ 8004 Series Processors, is well-suited for a variety of vertical applications, particularly in the context of Edge AI and advanced computing.
Edge AI
Workloads
Industrial IoT
Robotics &
Control Systems
High-performance
Computing
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | ATX Motherboard |
| System | |
| CPU | AMD EPYC™ SP6 Siena 8-64 cores |
| Memory | 6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC |
| Memory Max. | up to 576GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm (ATX) |
| Net Weight | 900g |
| Storage | |
| Storage | 4 x M.2(NGFF) : M Key (2242/2280, PCIe x4 for SSD) NVMe support slot |
| 8 x SATA : 6Gb/s connectors | |
| I/O Interface | |
| Display Output | 1 x Display Port : DP1.1a (1920 x 1080) |
| Ethernet |
LAN - 4 x 2.5GbE (I225-LM / I226-LM) Base-T LAN Ports 1 x GbE RJ45 IPMI management port 1 x RJ45 (RS-232 LAN Console port) |
| I/O Interface | 4 x External USB 3.2 Gen1x1 : Type-A (5Gb/s) |
| 2 x Internal USB 2.0 : via one 2x4 pin connector, P=2.54 | |
| Expansion |
PCIe x16 - 1 x PCIe Gen5 x16 slot 2 x PCIe Gen4 x16 slot |
| PCIe x8 : 3 x PCIe Gen4 x8 slot | |
| Other Features | |
| TPM | 1 x TPM header |
| Power | |
| Power Consumption |
5VSB@0.7A, 5V@1.68A, 3.3V@0.87A, 12V@9.4A (AMD SP6 Siena 8-64 cores with 192GB (six of 32GB) 4800MHz DDR5 memory) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| IMBAX-SP6-R10 | B704;ATX motherboard supports AMD SP6 Siena 8-64 cores, 70W-225W TDP ,DDR5, Quad 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, RoHS |
|---|
