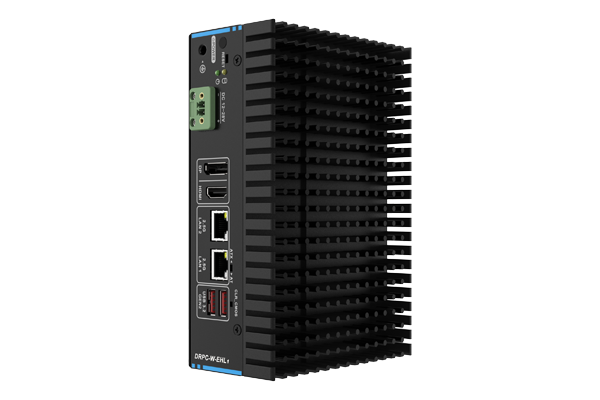

DRPC-W-EHL1

Fanless DIN-Rail Embedded System, Intel® Elkhart Lake Atom™x6000 Series Solution

DRPC-W-EHL1
DRPC-W-EHL1_IO
DRPC-W-EHL1_right
DRPC-W-EHL1_left
  • DRPC-W-EHL1
  • DRPC-W-EHL1_IO
  • DRPC-W-EHL1_right
  • DRPC-W-EHL1_left
» Support Intel® Elkhart Lake Atom™ x6000 series on-board SoC
» Support dual independent display
» High speed I/O interface for USB 3.2 gen 2, SATA 6Gb/s
» Dual 2.5 GbE LAN with Intel® I225-IT
» Support one M.2 A key and one M.2 B key slot

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Onboard Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
    Intel® Celeron® x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
    Intel® Celeron® x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
    Intel® Celeron® x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
  • Chipset:
    SoC
  • System Memory:
    Onboard LPDDR4X 3200MHz 8G (up to 16GB)
  • Power:
    Power Input:12V ~ 28V DC
  • Power consumption:
    12V@3.65A ( Intel x6425E with 8GB LPDDR4X )
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen 2
  • Ethernet:
    2 x 2.5 GbE by Intel ® I225-IT
  • Display:
    1 x HDMI
    1 x DP
  • TPM:
    Support Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 M.2 A Key (PCIe Gen3 x2 & USB 2.0)
    1 x 3042 M.2 B Key (PCIe Gen3 x2 & USB 2.0)
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x clear cmos button
Indicators 1 x Power LED
1 x HDD LED
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 176 x 116 x 60.8 (mm)
Weight
Weight 1.03 Kg
Environment
Operating Temperature -20°C ~ 70°C with air flow
Humidity 10% ~ 95% non-condensing
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis
Operating Shock 10-500 Hz,1.04 Grms, random, 1 hr/axis
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

DRPC-W-EHL1-x6425EC-R10 Fanless System with onboard Intel® Celeron® x6425E processor, 2 x 2.5GbE Lan, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, onboard LPDDR4X 3200MHz 8G memory, 12-28V DC, RoHs
DRPC-W-EHL1-x6413EC-R10 Fanless System with onboard Intel® Celeron® x6413E processor, 2 x 2.5GbE Lan, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, onboard LPDDR4X 3200MHz 8G memory, 12-28V DC, RoHs
DRPC-W-EHL1-x6211EC-R10 Fanless System with onboard Intel® Celeron® x6211E processor, 2 x 2.5GbE Lan, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, onboard LPDDR4X 3200MHz 8G memory, 12-28V DC, RoHs

Package Contents

Package Content

  • 1 x DIN-rail mounting kit

  • 1 x Screw pack

Download Specs.
