» Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
» 8 inch 10-point multi-touch PCAP touch panel
» 6 x USB (4 x USB 2.0 / 2 x USB 3.0)
» HDMI in up to 4K@60FPS
» 2 x HDMI output (1x 8K@60Hz / 1x 4K@60Hz)
» Onboard 8GBLPDDR4x Memory
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 8” |
| LCD Resolution | 1920 x 1200 |
| LCD Brightness (cd/m²) | 460 |
| LCD Contrast Ratio | 900:1 |
| LCD Color | 16.7M (8-bit) |
| LCD Pixel Pitch (mm) | 0.0897 x 0.0897 |
| LCD Viewing Angle (H-V) | 170°/170° |
| Touch Screen | Projected capacitive type with 10-point multi-touch |
| Touch Controller | ILI 2520 |
| System | |
| Processor | Rockchip RK3588 (Quad core Cortex-A76 + Quad-core Cortex-A55) |
| GPU | ARM Mali-G610 MP4 |
| NPU | 6TOPS NPU, triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration |
| Supported OS | Debian 11 (Linux kernel 5.10) |
| Network | |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth v5.0 |
| Storage | |
| Storage | On-board 8GB LPDDR4x |
| RAM | On-board 32GB of eMMC NAND Flash |
| Expansion Slots | |
| Expansion Slots | 1 x M.2 2280 M key slot |
| Audio | |
| Audio | 1 x Line-out jack |
| Speaker | 2 x 3W speaker |
| Microphone | 1 x Mic-in |
| I/O Interface | |
| Front I/O |
1 x Audio 1 x Speaker 2 x USB3.2 Gen 1 (5Gb/s) Type A |
| Rear I/O |
1 x DC jack 1 x GHz LAN 1 x 2.5 GHz LAN 4 x USB 2.0 Type A 1 x HDMI input4K@60FPS 1 x HDMI output4K@60FPS 1 x HDMI output8K@60FPS 1 x 3.5 mm input 1 x 3.5 mm output 2 x RS-232 (GPIO) |
| Indicator&Buttons | |
| Buttons | 1 x Power on/off |
| Indicators |
1 x Power LED 1 x Capture status |
| Physical Characteristics | |
| Color | White/Black |
| Thermal | Fanless |
| Weight (Net) (kg) | 1.88 |
| Weight (Gross) (kg) | 4.89 |
| Dimensions (LxWxH) (mm) | 205.4 x 168.34 x 162.65 |
| Power | |
| Output | 12V DC |
| Power Consumption | 65W power adapter |
| Environment | |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 65°C |
| Humidity | 10% – 95% (non-condensing) |
| Vibration | 1G |
| Operating Vibration | 5G peak acceleration (11ms duration) |
| Operating Shock | 15G peak acceleration (11ms duration) |
| Certifications | |
| Safety & EMC | CE, FCC Class A Part 15, CCC, IEC 62368-1, FDA |
Ordering Information

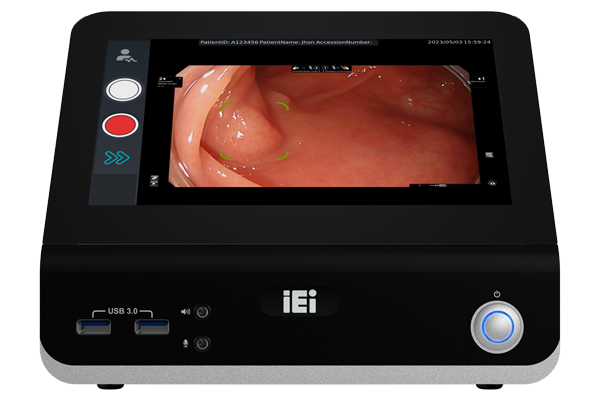

| EndoCap-3588-R10 | Box PC, 8" panel, PCAP touchscreen, Rockchip RK3588, on-board 8GB LPDDR4x, on-board 32GB eMMC, 65W power adapter, w/o M.2 SSD, w/ Wi-Fi Antenna, FW with IEI Logo, IEI logo plate, R10, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
