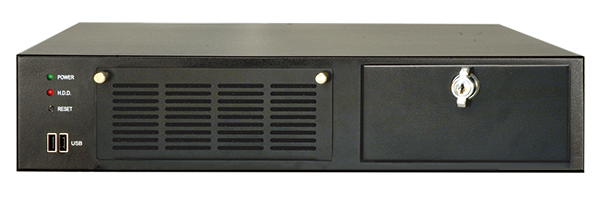

RACK-220G
» RoHS compliant design
» Two USB ports on the front panel
» Two 8 cm cooling fans with replaceable fan filter
» One 5.25” and one 3.5” drive bays
» One 3.5” internal hard drive bay
» Lockable door prevents unauthorized access
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size, slot CPU card |
| I/O Interface | |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 6 slots |
| System | |
| Cooling method / System Fan | 2 x 8 cm |
| Drive Bays |
1 x 5.25” 1 x 3.5” 1 x 3.5” HDD (internal) |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White/B: Black |
| Dimensions | |
| Dimensions | 488 mm x 431 mm x 89 mm |
| Weight | |
| Weight | 8.2 kg/12.4 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| RACK-220GBPX-R20/300W | 2U 6-slot Full-size Chassis for PICMG 1.0 SBC,Black,Powder paint,2x 8cm fan,with 300W ATX PSU,RoHS |
|---|---|
| RACK-220GBPX-R20 | 2U 6-slot Full-size Chassis for PICMG 1.0 SBC ATX Power Switch,Black,Powder paint,W/O PSU,RoHS |
| RACK-220GBATX-R20/300W | 2U microATX motherboard Rackmount Chassis,Black,Powder paint,2x 8cm fan,with 300W ATX PSU,RoHS |
| RACK-220GBATX-R20 | 2U microATX motherboard Rackmount Chassis,Black,Powder paint,2x 8cm fan,W/O PSU,RoHS |
