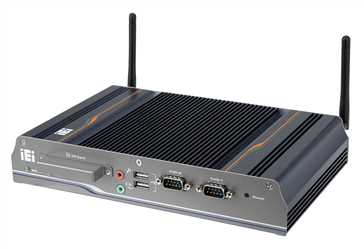

TANK-101B
Fanless Embedded Controller with Dual-
End of Life
End of Life Notice
* Effective Date: 2017/12/29
» Dual-core Intel® Atom™ D525 processor inside
» Wide range 9 V~36 V DC power input
» Isolation protected COM and CAN communication
» Extended temperature fanless design supports -20°C ~ 70°C (N455)
Hardware Spec.
| Color | |
|---|---|
| Color | Cool Gray+Blue |
| Dimensions | |
| Dimensions | 248 x 138 x 44 |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature |
-20°C~60°C (D525 with air flow CF/SSD), -20°C~70°C (N455 with air flow CF/SSD), |
| Expansion Slots | |
| Expansion Slots | PCIe Mini:1 x Full size |
| Form factor | |
| SBC Form Factor |
CPU: Intel® Atom™ D525 1.8 GHz Intel® Atom™ N455 1.66 GHz Chipset:Intel® ICH8M System Memory On-board DDR3 1 GB memory 1 x 204-pin DDR3 SDRAM SO-DIMM(system max: 3 GB) |
| I/O Interface | |
| I/O Ports |
4 x USB 2.0 Ethernet: 2 x RJ-45 PCIe GbE by Realtek 8111E COM Port 3 x RS-232 (DB-9) 1 x RS-422/485(DB-9, Default RS-422 with isolation) CAN Bus:2 x DB-9 CAN with isolation Display:1 x VGA Resolution:VGA: Up to 2048 x 1536@60Hz Audio:1 x Line-out, 1 x Mic-in Wireless:1 x 802.11b/g/n (optional) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5' SATA 3Gb/s HDD/SSD bay |
| Weight | |
| Weight | 2.1 kg/3.9 kg |
Ordering Information
| TANK-101B-R11/N455/1GB | Extend tempeture Fanless embedded system with Intel? ATOM? Processor N455 1.66GHz CPU with two isolated CAN, One isolated Serial Port, 1GB DDR3 memory onboard, 9~36V DC in, Pantone 287C + Cool Gray 2C, -20°C ~ 70° C, RoHS |
|---|---|
| TANK-101B-R11/D525/1GB | Extend tempeture Fanless embedded system with dual core Intel ATOM Processor D525 1.8G CPU with two isolated CAN, One isolated Serial Port, 1GB DDR3 memory onboard, 9~36V DC in, Pantone 287C + Cool Gray 2C ,-20°C ~ 60°C, RoHS |
Package Contents
| Package Content |
|
|---|
