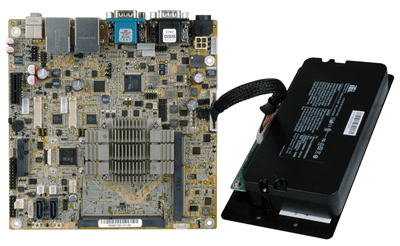

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC

» Mini ITX supports Intel® 22nm Atom™ or Celeron® on-board SoC
» Wide-range 9V ~ 26V DC input design
» Supports dual independent display with dual LVDS and VGA
» Equipped with AUPS sub-system, acts as a simple UPS system
» Supports four USB 2.0, two USB 3.0, two SATA and four COM
» IEI jumper-less function

Specifications

Hardware Spec.

System
CPU Intel® Atom™ E3845 on-board SoC
(1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC
(1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC
(1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC
(1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC
(1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC
(2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC
(1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC
(1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Memory Two 204-pin 1066/1333 MHz dual-channel unbuffered DDR3L SDRAM SO-DIMM (J1900, N2930, E3845, E3827, E3826)
One 204-pin 1066/1333 MHz dual-channel unbuffered DDR3L SDRAM SO-DIMM (E3825, E3815) or 4 GB (N2807)
Memory Max. 8GB
Storage
Storage 1 x CFast
1 x SD/MicroSD card
I/O Interface
Display Output 1 x VGA :up to 2560x1600@60Hz
2 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 2 x LAN :Realtek RTL8111E PCIe controller
Audio Description: Realtek ALC662 HD Audio codec
1 x Line out :on rear IO
1 x Mic :on rear IO
I/O Interface 3 x External RS-232
1 x Internal RS-232 :2x5 pin, p=2.0
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x1
1 x PCIe mini Card Slot
Other Features
TPM 2x10 pin
Power
Power Consumption +12V@1.55A
(Intel® Celeron® J1900 CPU with two 4 GB
1333 MHz DDR3L memory)
Power Supply 1 x External DC power jack (4-pin DIN)
1 x Internal power connector (2x2 pin)
Input voltage range: 9V ~ 26V
Recommended operating input voltage range:
12V~24V
Environment
Operating Temperature 0°C ~ 40°C with AUPS sub-system;
-20°C ~ 60°C without AUPS sub-system;
Storage Temperature -10°C ~ 50°C with AUPS sub-system
-30°C ~ 70°C without AUPS sub-system
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

EKINO-BT-J19001-R10 Mini-ITX SBC supports AUPS Sub-System, Intel® Celeron® Quad-Core Processor J1900(10W), wide range 9-26VDC input,VGA/ Dual LVDS, SATA, Dual GbE, USB 3.0, Audio, CFAST and RoHS
EKINO-BT-E38XX1-R10

Package Contents

Package Content

  • 1 x eKINO-BT single board computer

  • 2 x SATA with 5V output cable kit

  • 1 x I/O shielding

  • 1 x QIG

Download Specs.
