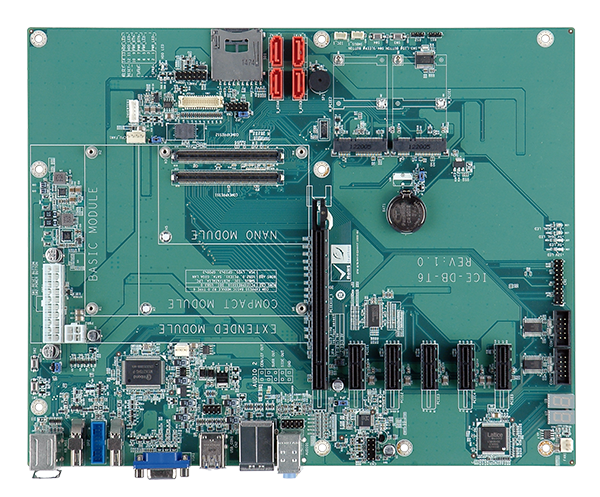

ICE-DB-T6
» Intel® 22nm Atom™ or Celeron® on-board SoC supported
» Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
» Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8 GB
» Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
» Optional soldered down 4 GB SSD
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 304.8 X 243.8 |
| Net Weight | 450g |
| Storage | |
| Storage | 4 x SATA |
| 1 x SD/MicroSD card | |
| I/O Interface | |
| Display Output | 1 x VGA |
|
3 x Display Port :2 x real connectors, 1 x pin header |
|
| 1 x LVDS :18/24-bit single/dual-channel | |
| Ethernet | 1 x LAN |
| Audio | Description: Realtek ALC892 HD Audio codec |
| 1 x Line in | |
| 1 x Line out | |
| 1 x Mic | |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 2 x Internal RS-232 |
| 4 x External USB 3.2 Gen1x1 | |
| 1 x PS/2 | |
| Expansion | 1 x PCIe x16 |
| 6 x PCIe x1 | |
| 2 x PCIe mini Card Slot :with USB | |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Supply | Support AT/ATX mode |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| ICE-DB-T6-R10 | Base Board for COM Express Type 6 Module |
|---|
