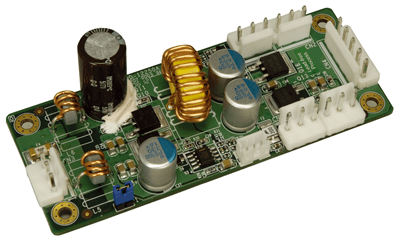

IDD-12250A

50 W+ 60 W DC/DC Converter Module

End of Life

End of Life Notice

* Effective Date: 2017/10/16

» 50 W + 60 W (12 V pass thru), total power 110 W
» AT or ATX mode on/off
» Up to 90% efficiency
» RoHS compliant
» Compact size

Specifications

Hardware Spec.

General
Dimensions 40 x 100
Efficiency 90%
Operating temperature 0ºC ~ 70ºC
Watt 50W
Input
Voltage 12 VDC
Output
Voltage 12 V@5 A (pass thru), 5 V@10 A & 5VSB@0.5 A

Ordering Information

IDD-12250A-R11 50W+60W DC/DC 12V input 12V/5V/5VSB output
