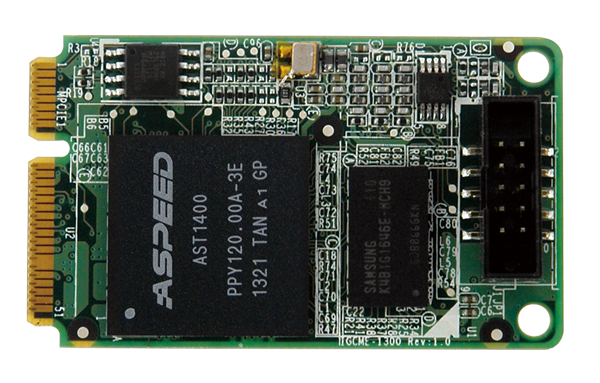

IGCME-1300
» Support PCIe VGA/2D controller, 1920x1200@60Hz 32bpp
» DDR3 SDRAM supports up to 800 MHz speed
» Compliant with PCI Express Mini specification 1.2
Hardware Spec.
| Compatible OS | |
|---|---|
| Compatible OS |
Win7/Win8/Server 2003/Server 2008/Server 2012 Linux kernel version 2.6.32 above |
| Dimensions | |
| Dimensions | 50mm x 30mm |
| Display | |
| Display Controller IC | Aspeed AST1400 |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 60°C |
| Form factor | |
| Form factor | PCI Express Mini card |
| I/O Interface | |
| I/O Interface | 1 x 10-pin (2x5) box header by 2.0mm pitch |
| Power | |
| Power Supply | On-board 3.3V |
| Weight | |
| Weight | 7g |
Ordering Information
| IGCME-1300-R11 | PCIe Mini VGA adapter card with AST1400 ,RoHs |
|---|
