PulM-1G4SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with  4 x SFP by 2 PCIe 2.0 x4 interface.

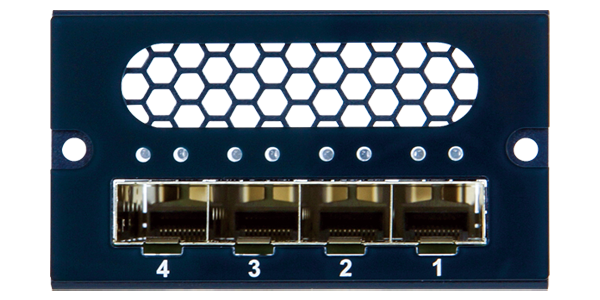

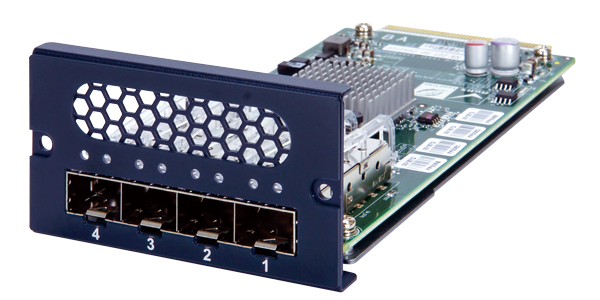

PulM-1G4SF NIC
PulM-1G4SFT-I350 2U Network Interface Card
  • PulM-1G4SF NIC
  • PulM-1G4SFT-I350 2U Network Interface Card
‧1 x Intel® Ethernet Controller I350-AM4
‧4 x 1 GbE SFP connectors
‧2 PCIe 2.0 x4
‧RoHS compliant

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 4 x LAN (4 x SFP)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS compliant
Card Slot Interface
PCIe 2 PCIex4
Card Features
Speed 1GbE
Controller Chip Intel Ethernet Controller I350-AM4

Ordering Information

PulM-1G4SF-I350-R10 Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x SFP by 2 PCIe 2.0 x4 interface.

Package Contents

Package Content

  • 1 x PulM-1G4SF-I350 module

  • 1 x L-shaped T10 Plum Wrench

  • 2 x Torx Screws

  • 1 x QIG
