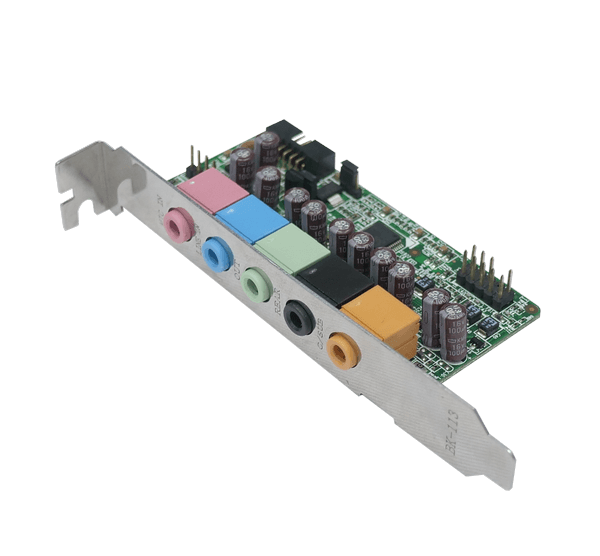

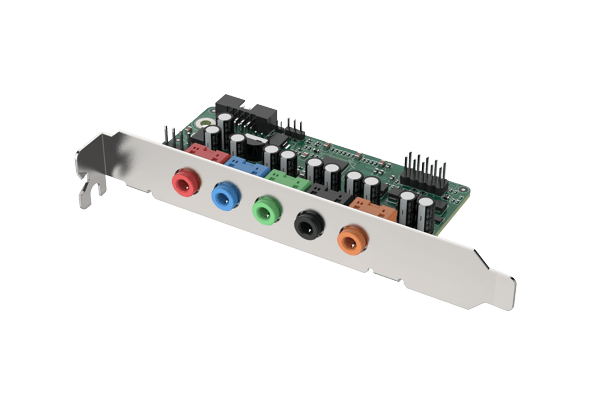

AC-KIT-888S
» Realtek ALC888S HD Audio codec IC supported
» Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
» High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
» Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
» Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
» All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
» All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
» Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Full height peripheral board |
| System | |
| Chipset | Realtek ALC888S HD Audio codec IC |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 83.82 mm x 40.64 mm |
| I/O Interface | |
| Audio |
Description: Detail – 1 x Mic-in connector 1 x Line-in connector 1 x Front-out connector 1 x Rear-out connector 1 x Center/Subwoofer connector |
| 1 x Line in | |
| 1 x Line out | |
| 1 x Mic | |
| HD Audio : Realtek ALC888S | |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| AC-KIT-888S-R10 | Realtek ALC888S 7.1 Channel HD Audio peripheral board,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
