End of Life Notice
* Effective Date: 2024/09/03

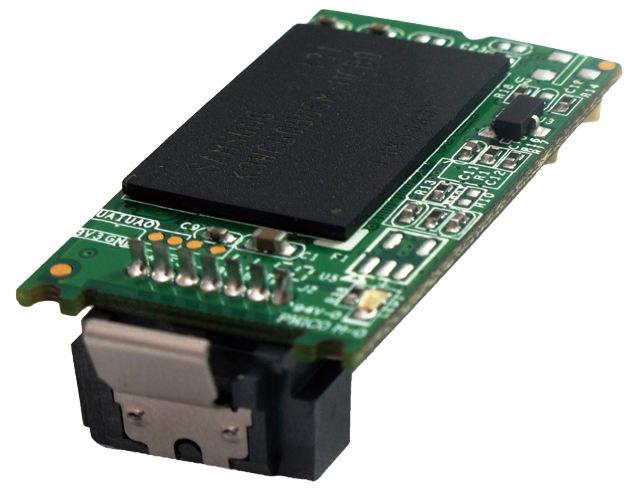

Industrial Flash Module Series(SATADOM)SLC
Hardware Spec.
| ATA Security | |
|---|---|
| ATA Security | Yes |
| Capacity (GB) | |
| Capacity (GB) | 1GB~32GB |
| Dimensions | |
| Dimensions | 18.1 x 30.5 x 12 |
| Flash Type | |
| Flash Type | SLC |
| Interface | |
| Interface | SATA 6Gb/s |
| Key Features | |
| Key Features |
1. Horizontal version 2. Only exposes 12mm height on the motherboard after installation |
| Max. Power Consumpation | |
| ConsumpationMax. Power Consumpation | 0.65W (5V x 130mA) |
| P/N | |
| STD(0°C~+70°C) |
IFM-3010IPS-1GB IFM-3010IPS-2GB IFM-3010IPS-4GB IFM-3010IPS-8GB IFM-3010IPS-16GB IFM-3010IPS-32GB |
| WT(-40°C~+85°C) |
IFM-3010WPS-1GB IFM-3010WPS-2GB IFM-3010WPS-4GB IFM-3010WPS-8GB IFM-3010WPS-16GB IFM-3010WPS-32GB |
| S.M.A.R.T | |
| S.M.A.R.T | Yes |
| Sequential R/W | |
| Sequential R/W | 300/130 |
| Thermal Sensor | |
| Thermal Sensor | Wide temperature model only |
Ordering Information
| IFM-3010WPS-8GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:250MB/s W:60MB/s, 8GB |
|---|---|
| IFM-3010WPS-4GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:220MB/s W:50MB/s, 4GB |
| IFM-3010WPS-32GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 32GB |
| IFM-3010WPS-2GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:24MB/s W:18MB/s, 2GB |
| IFM-3010WPS-1GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:23MB/s W:9MB/s, 1GB |
| IFM-3010WPS-16GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, -40℃~85℃, R:290MB/s W:120MB/s, 16GB |
| IFM-3010IPS-8GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:250MB/s W:60MB/s, 8GB |
| IFM-3010IPS-4GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:220MB/s W:50MB/s, 4GB |
| IFM-3010IPS-32GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 32GB |
| IFM-3010IPS-2GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:24MB/s W:18MB/s, 2GB |
| IFM-3010IPS-1GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:23MB/s W:9MB/s, 1GB |
| IFM-3010IPS-16GB | Flash Disk;SATA Interface Disk on Module,Horizontal Version, SLC, 0℃~70℃, R:290MB/s W:120MB/s, 16GB |
