uIBX-260-EHL

Ultra Compact Size

uIBX-260 front right side
uIBX-260 front left side
DRPC-124 Front side
DRPC-124 Back side
  • uIBX-260 front right side
  • uIBX-260 front left side
  • DRPC-124 Front side

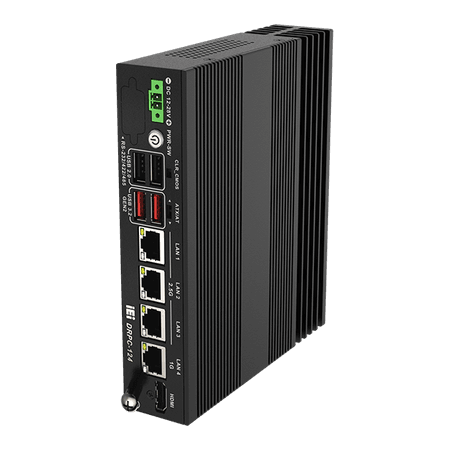

  • DRPC-124 Back side

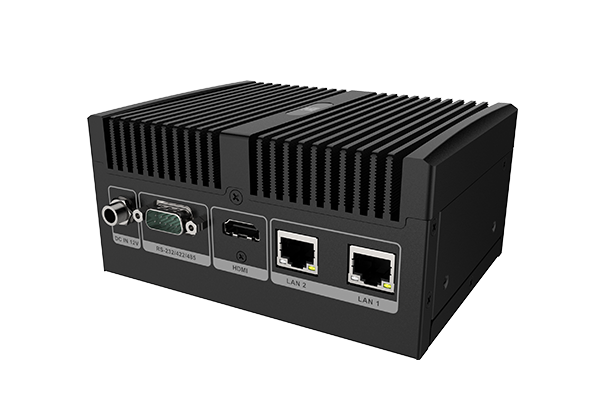

» Ultra-Compact Industrial Mini PC Fanless system
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» Onboard LPDDR4x 8G (up to 16GB)
» M.2 for expansion
» Four USB 3.2 Gen2 (10Gb/s) ports
» Two 2.5GbE LAN ports
uIBX-260 mini box PC placed on a hand palm
intel celeron
ultra compact palm size system icon
dual storage icon, hdd & m.2 ssd
dual 2.5GbE rj45 icon
dual 4k HDMI™ display monitor icon
-10°C ~ 50°C operating temperature icon

The uIBX-260 is a compact, powerful box PC designed to support your industrial IoT applications that require installation into confined spaces. It is fanless, and features an Intel® Celeron® J6412 processor with onboard LPDDR4x memory that delivers exceptional, reliable performance at low power. Flexible storage options are available, including M.2 NVMe or 2.5" SATA HDD, to suit your needs on data processing. Moreover, the uIBX-260 not only has Wi-Fi capability for seamless control of IoT devices, but also equips dual 2.5GbE ports for faster network communication, making it ideal for use in factory automation, warehouse management, transportation, and other edge computing applications.

Intel® Celeron® J6412 Quad-core Processor, up to 2.60GHz

The uIBX-260 is powered by an Intel® Celeron® J6412 processor, and is built-in with on-board 8GB LPDDR4x memory. Compared to the previous generation (uIBX-250), the uIBX-260 offers 236% boost on CPU performance. This allows the uIBX-260 to deliver high levels of CPU and graphics performance at low power for 24/7 operation in most of advanced IoT applications.

Comparison chart of Intel Celeron J6412 (Elkhart Lake) and Intel Celeron N3160 (Braswell)

Reliable Onboard 8GB
Dual-channel LPDDR4x Memory

The uIBX-260's memory is upgraded to LPDDR4x, which not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system by 60% from 1.5V to 0.6V. The dual-channel memory is soldered on board, enabling the box PC to deliver much more stable, solid operation compared to the socket-type memory for critical usage such as transportation, AGV and other mobile scenarios.

Internal view of the uIBX-260 fanless embedded system with the onboard LPDDR4x highlighted

Ultra-compact Size
Easily Fits into Any Industrial Setting

With a mounting space of just 137 x 102.8 x 65.8 mm, the uIBX-260 is perfect for industrial applications that require installation into confined spaces, for example as an IoT gateway in a control cabinet for data acquisition, pre-processing or even data aggregation. It is also ideal for wall mounting and is VESA 75 compliant, which allows the compact system to be mounted onto any VESA mount devices.

Comparing uIBX-260 industrial mini pc with a white mug, labeling their sizes and weight
uIBX-260 box pc mounted inside a control unit by using two side brackets
uIBX-260 box pc mounted on a wall beside surveillance cameras by using VESA wall mount kit

Dual Storage Design - M.2 NVMe SSD & 2.5-inch HDD/SSD

The uIBX-260 can accommodate both M.2 NVMe SSD and 2.5-inch SATA SSD, providing flexible options for users with different data storage requirements. By leveraging the PCIe Gen3 x2 bus, the NVMe SSD features high-level performance and speed. It can provide real-time data processing or analysis, and greatly optimize computing at the edge.

Exploded view of the uIBX-260 embedded system, point out M.2 m key slot for NVMe SSD and 2.5" SATA HDD/SSD

Wi-Fi 6E Capability Enables Seamless Control of IoT Devices

The compact box PC equips one M.2 A-key slot for installation of an optional module to provide Intel Wi-Fi 6E and Bluetooth 5.2 technology. This wireless network capability offers an easy-to-deploy and cost-effective foundation that requires no separate gateways or specialized skills to deliver IoT applications. Two external antennas can also be added to improve the coverage, performance and reliability of a Wi-Fi network by reducing latency, packet loss, and interference.

uIBX-260 compact box PC installed with two external antennas for WIFI 6E connection
Wi-Fi 6E & Bluetooth 5.2 module for uIBX-260 mini pc, EMB-WIFI-KIT02I3-R10

*Wi-Fi & Bluetooth module and antennas are optional items

Maximize speed, latency,
and reliability of WiFi-6E
MU-MIMO
Bluetooth 5.2

With the popularity of IoT device connectivity, the number of devices connected wirelessly by Wi-Fi is increasing dramatically, which will lead to over congestion in the 2.4GHz and 5GHz bands, making it difficult for Wi-Fi to reach its full potential. The uIBX-260 has capability to support the latest Wi-Fi 6E (802.11ax) technology with a new 6GHz channel. Older devices with low network requirements can connect to the 2.4GHz and 5GHz bands, while devices with high network requirements can connect to the new 6GHz band for network experience improvement.

5374 Mbps Extremely Fast
Comparison chart of WiFi 802.11ax, ac, n, 6GHz, 5GHz, 2.4GHz

The optional Intel® AX210 wireless module can make the uIBX-260 carry with advanced OFDMA & MU-MIMO wireless technology to greatly provide connection efficiency and network capacity. MU-MIMO effectively improves signal gain when multiple users are sending and receiving at the same time. It delivers double throughput, from 80 MHz to 160 MHz, ultra-low latency and uninterrupted connectivity.

MU-MIMO connection showing multiple WiFi devices to simultaneously receive data streams
SU-MIMO connection showing only one wifi device can receive data streams at a time

The Bluetooth 5.2 includes Isochronous Channel (ISOC) feature which lays the foundation for the implementation of next generation of Bluetooth Audio – Low Energy Audio. In addition, LE Power Control (LEPC) offered by Bluetooth 5.2 allows the transmitter to adjust its transmission power by itself or can be requested to change its transmission power by a peer device.

One-click device pairing & easier file sharing

One-click device pairing
& easier file sharing

Up to 20% less audio <br> power consumption vs. standard Bluetooth

Up to 20% less audio
power consumption vs.
standard Bluetooth

2x faster speeds' vs. Bluetooth' 4.2

2x faster speeds' vs.
Bluetooth" 4.2

Connect multiple devices at a time

Connect multiple devices
at a time

Dual 2.5GbE Enhance Transfer Speed

2.5GbE can provide higher bandwidth and lower latency than the traditional 1 Gigabit Ethernet, which can improve the performance and reliability of applications that involve large data transfers or real-time communications. Since it uses the same cabling as the Gigabit Ethernet, the cost and complexity of upgrading the network infrastructure can be significantly reduced.

Low CPU Workload
High TCP & UDP Throughput
The two 2.5GbE RJ45 ports of uIBX-260 industrial embedded system

-10°C~50°C Fanless System

A fanless system, like uIBX-260, is more energy-efficient, reliable and durable than a system with a fan. It is also more resistant to dust, dirt, and moisture, as it has no openings or vents. With optimized heatsink that has a large surface area and a finned structure to dissipate heat quickly, uIBX-260 can perform stably and prevent overheating, throttling, or damage to the components. Therefore, uIBX-260 is suitable for harsh environments and applications that require high performance, low noise, and high reliability.

heat dissipation diagram of uIBX-260 fanless system

MIL-STD-810H Compliance
Withstands Extreme Shocks and Vibrations

The uIBX-260 is a rugged and reliable box PC offering superior shock and vibration protection that can withstand harsh and mobile environments and conditions.

  • • Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
  • • Operation Vibration: 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
two delivery robots moving on street
an electric vehicle charged by an EV charging station
an AMR loaded with four boxes moves around a warehouse

Small Size, Rich Interfaces

two different views of uIBX-260, showing its rich IO interfaces

Dimensions

uIBX-260 dimensions picture

Optional Accessories

Expansion Module
Cable
Others
EMB-WIFI-KIT0213-R10, M.2 Wi-Fi 6E kit

EMB-WIFI-KIT0213-R10

• M.2 Wi-Fi 6E kit

• IEEEE 802.11a/b/g/n/ac/ax 2T2R

• Bluetooth 5.2

• Two RF cables and two external antennas included

32205-008000-100-RS, RS-232/422/485 cable

32205-008000-100-RS

• RS-232/422/485 cable

• Cable length: 250mm

• MOLEX (1x9, P=1.25) to D-SUB 9

IEI CD-ROM, Windows® 10 Enterprise Entry 64-bit 2021 LTSC

uIBX-260-EHL-W10IoT21-E-R10

• Windows® 10 Enterprise Entry 64-bit 2021 LTSC

• DVD-ROM with OS image

AFLWK-12, VESA 75 Wall mount kit

AFLWK-12

• Wall mount kit

• VESA 75 compliant

• Easy installation

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Celeron® J6412 2GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Chipset:
    SoC
  • System Memory:
    LPDDR4x on board 8GB (up to 16G)
  • Power:
    DC Jack: 12 V DC
    Consumption: +12V@3.6A (Intel® Celeron® J6412 with 8GB memory)
I/O Interface
I/O Ports
  • USB:
    4 x USB 3.2 Gen2
    2 x USB 2.0 (optional)(USB expansion is applicable only when 2.5-inch hard disk is not installed)
  • Ethernet:
    2 x RJ-45 2.5 GbE by I225V controller
  • Display:
    1 x HDMI™ 1.4b (up to 4k@ 30Hz)
  • COM Port:
    1 x RS-232/422/485 (DB9)
    1 x RS-232 (optional)
  • TPM:
    Support Intel PTT
  • Wireless/Bluetooth:
    1 x 802.11a/b/g/n/ac (M.2 A Key optional)
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe Gen3 x1/ USB2.0)
    1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button(with LED)
1 x Reset button
1 x AT/ATX switch
1 x Clear CMOS Button
Indicators 1 x Power LED
1 x HDD LED
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black C
Dimensions
Dimensions 137 x 102.8 x 65.8
Weight
Weight 0.97KG /1.74KG
Environment
Operating Temperature -10°C ~ 50°C with air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC CE / FCC / UKCA compliant
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

uIBX-260-EHL-W10IoT21-E-R10 OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for uIBX-260-EHL Series, with DVD-ROM, RoHS
uIBX-260-EHL-JC-R10 Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x RS-232/422/485, 4 x USB 3.2, 1 x HDMI™, 2 x 2.5GbE Lan, 12V DC, RoHS

Package Contents

Package Content

  • 1 x Mounting Screw

  • 1 x Mounting Bracket

  • 1 x Adapter

  • 1 x Power Cord

Options

EMB-WIFI-KIT02I3-R10 2T2R M.2 wifi module kit for embedded system, IEEEE802.11a/b/g/n/ac/ax, 1 x M.2 AE Key Wireless LAN & Bluetooth 5.2;Intel;AX210.NGWG Module, 2 x RF cable , 2 x Antenna; RoHs
32205-008000-100-RS FLAT CABLE;RS-232/422/485;2;250mm;28AWG;(A)D-SUB 9P MALE,BLUE;(B)MOLEX 51021-0900 P=1.25;Wins Precision;C24230217-0;RoHS
32001-008600-200-RS ROUND CABLE;USB CABLE;3;210mm;28AWG;(A)USB A TYPE 4PIN FEMALE *2;(B)DU PONT 2*4P P=2.0 FEMALE;ONE PCS PKG W/ LABEL;WITH 4PCS SCREWS,32000-070301-RS SUBSTITUTE;Wins Precision;RoHS
